SCI R3-11 Panel Mount Chassis Fuse Holder for 5x20mm Fuses 10A 250V
SCI R3-11A Panel Mount Chassis Fuse holder; cylindrical fuses; 5x20mm; 10A; on panel; 250VAC – This product is available in chian Yaxun Elektronik. R3-11 – Single Pole Mini Fuse Holder – Bayonet Cap – 10A 250 VAC Solder Lugs Termination – .196 Inch x .787 Inch Fuse Size – Black Nylon CSA cURus.
SCI R3-11A Panel Mount Chassis Fuse holder; cylindrical fuses; 5x20mm; 10A; on panel; 250VAC – This product is available in chian Yaxun Elektronik. R3-11 – Single Pole Mini Fuse Holder – Bayonet Cap – 10A 250 VAC Solder Lugs Termination – .196 Inch x .787 Inch Fuse Size – Black Nylon CSA cURus.

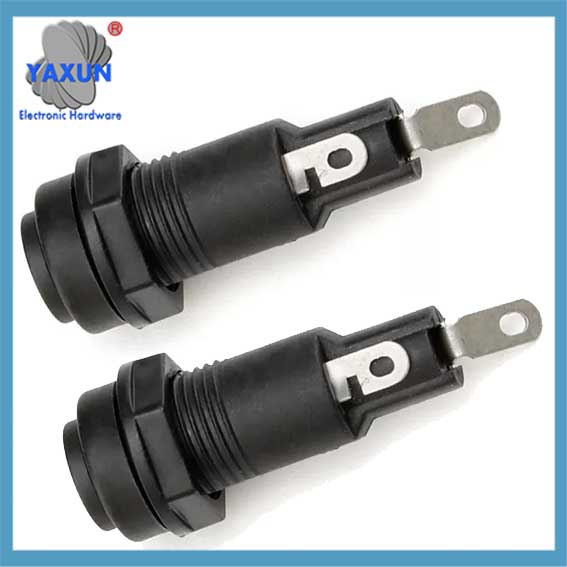

 China Ceramics Glass R3-11 Fuse Holder Socket 5mm X 20mm |

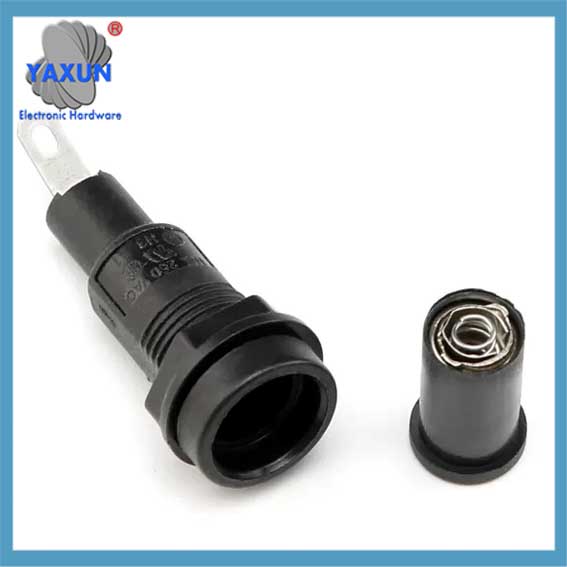

 R3-11 10A 250V Fuse Holder with Quick Connect Horizontal Terminal Fuse Block Panel Mount for fuse 5x20mm |

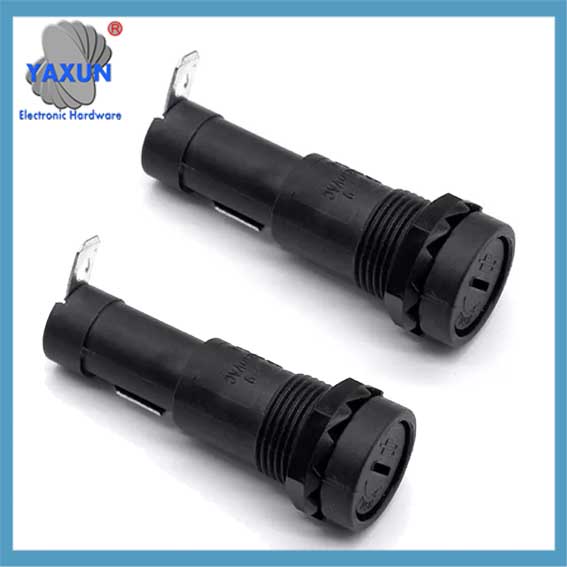

 china SCI R3-11 Panel Mount Chassis Fuse Holder for 5x20mm Glass Fuses |
| Name: | SCI R3-11 Fuse Holder | Mounting Way: | Panel Mount |
| Part: | R3-11 | Rated Voltage: | 250V AC |
| Rated Current: | 10A | Suitable For: | 5x20mm Fuses |
| RoHS Compliant: | Yes | Body Material: | Bakelite |
| Terminal: | Nickel Plated Copper Alloy | Cap Type: | Bakelite |
| Length: | 34.3mm | Cut-Out Dia: | 13mm |
| High Light: | SCI R3-11 5x20mm Panel Fuse Block, CSA Panel Fuse Block, 250V Panel Fuse Holder | ||
Product Description
R3-11 Fuse Holder with Quick Connect Horizontal Terminal Fuse Block Panel Mount for fuse 5x20mm
Product Description
The panel-mounted fuse holder is convenient for inspection and repair, and does not need to disassemble the machine to replace the fuse.
Features
Electrical:Rated at 10A 250V AC
Insulating Body:Bakelite
Konb:Screw-driver slot fuse extractor type with nickel-plated copper alloy insert. Spring loaded.
Terminals:Nickel-plated copper alloy, solderable type, quick connect
Anti-vibration design eliminates accidental electric shocks for operators
Compact design, small structure
UL /CSA approved
| Item Name | R3-11 Fuse Holder |
| Mounting Type | Panel |
| Terminal Width | 4.0 mm |
| Terminal thickness | 0.5mm |
| Cap Diameter | 15.1 mm |
| Length | 34.3 mm |
| Cut-out diameter | 13 mm |
| MOQ | 1000PCS |
Drawing of SCI R3-11 fuse holder
Contact Us
Waiting for your email, we will reply you within 12 hours with valuable information you needed.
