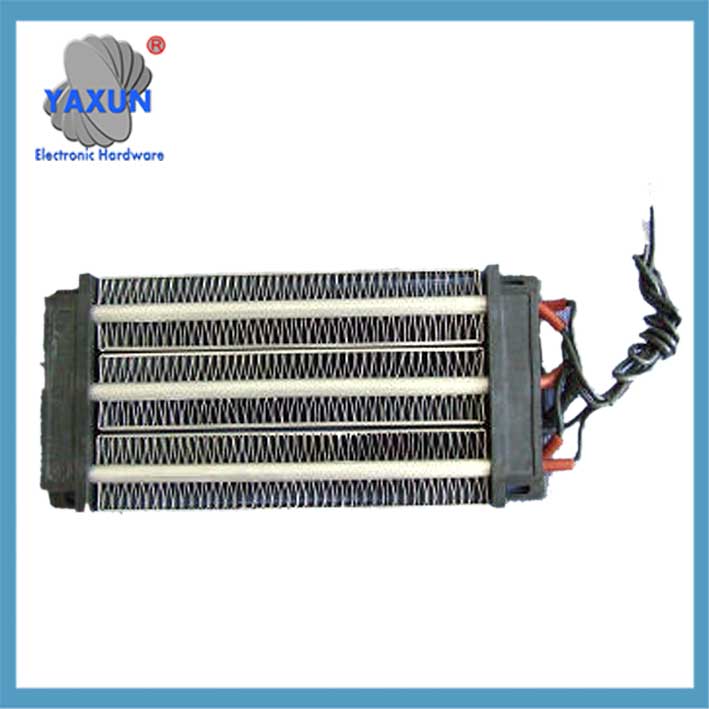

ПТЦ термистор за грејање ваздуха

Usage Precautions
Use a hair dryer to remove heat to increase heating power. Wind speed significantly affects heating power. Уопштено говорећи, the higher the wind speed, the greater the power. Without wind, the heater will not be damaged, but the power will drop significantly.

1) The power aging rate is within 10% after 1000 сати, and the resistance aging rate is within 50%.

2) Can be manufactured to customer specifications.

3) Available in both insulated and non-insulated configurations.

PTC Thermostatic Heater for Control Cabinet Dehumidification and Moisture Prevention

Suitable for heating and moisture prevention in electrical control cabinets, dehumidifying and moisture prevention in drying ovens, dehumidifiers, electric humidifiers, moisture prevention and heating for electrical instruments, monitors, electric ovens, медицинска опрема, кућни апарати, small appliances, and more.

Тецхницал Параметерс

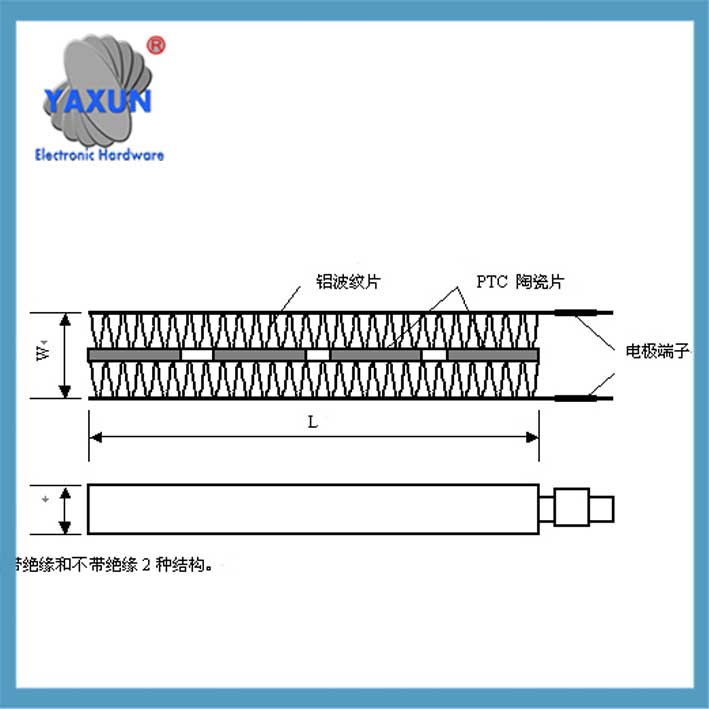

Изглед и структура ПТЦ термистора за загревање ваздуха

Прилагођене величине ПТЦ термистора за грејање ваздуха

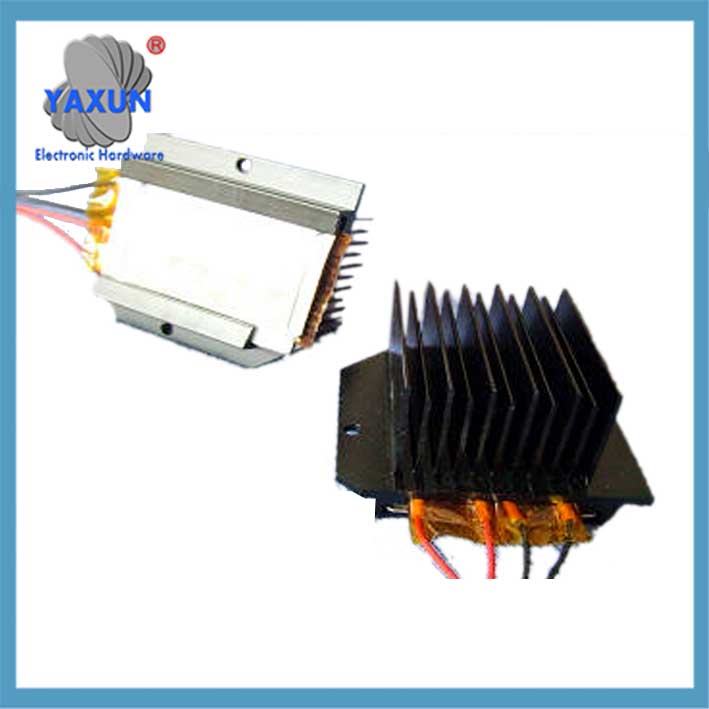

Control cabinet (box) dehumidification and moisture-proof PTC constant temperature heater

Operating Voltage: DC/AC 12V, 24V and DC/AC 110V, 220У
Curie Temperature: 85°C to 220°C
Surface Temperature: 60°C to 190°C
Minimum Dimensions: 60×60×34mm
Maximum Dimensions: 155×85×24mm
Називна снага: 30–200W

ПТЦ термостатски грејач за унутрашњу изолацију шасије инструмената и опреме у окружењима ниских температура

Suitable for maintaining a constant temperature in the chassis of equipment such as ticket machines, subway gates, and ATMs, preventing malfunctions of electronic components caused by low ambient temperatures.

Тецхницал Параметерс
