The following is the core difference and selection guide of the bimetallic KSD301, KSD9700 normally closed (این سی) and normally open (نہیں) temperature switches, and a comprehensive comparison of technical specifications and application scenarios:
میں. Working principle and state definition
| Characteristics | عام طور پر بند (این سی) | عام طور پر کھلا (نہیں) |
| Initial state | Contacts closed at normal temperature (circuit connected) | Contacts disconnected at normal temperature (circuit disconnected) |
| Trigger action | Temperature ≥ set value → contacts disconnected (circuit disconnected) | Temperature ≥ set value → contacts closed (circuit connected) |
| Reset mechanism | Temperature drops to reset value → contacts automatically closed | Temperature drops to reset value → contacts automatically disconnected |
| Symbols | NC （Normally Closed） | NO （Normally Open） |
Core application logic:
NC type: “high temperature power off” (such as preventing the motor from overheating and burning);
NO type: “high temperature power on” (such as over-temperature starting the cooling fan).

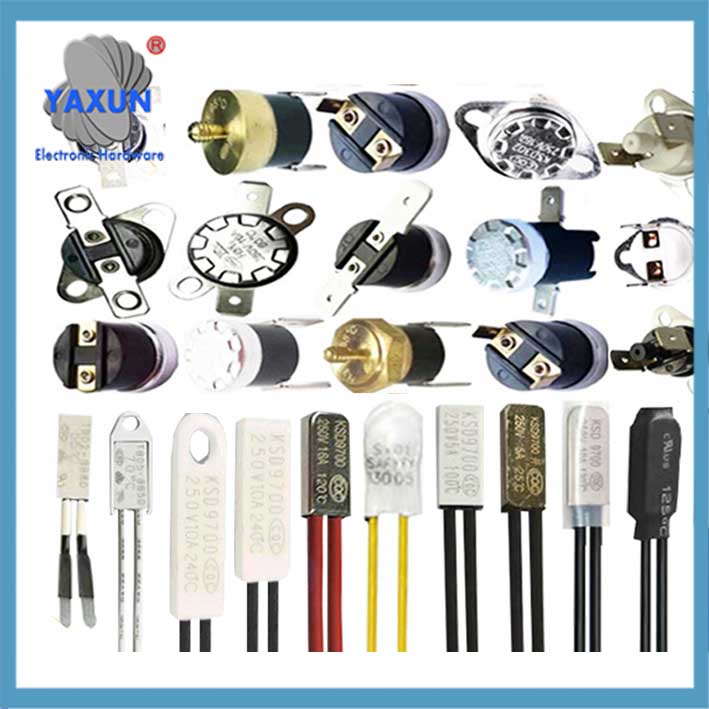

 عام طور پر بند اور عام طور پر کھلی درجہ حرارت سوئچز |

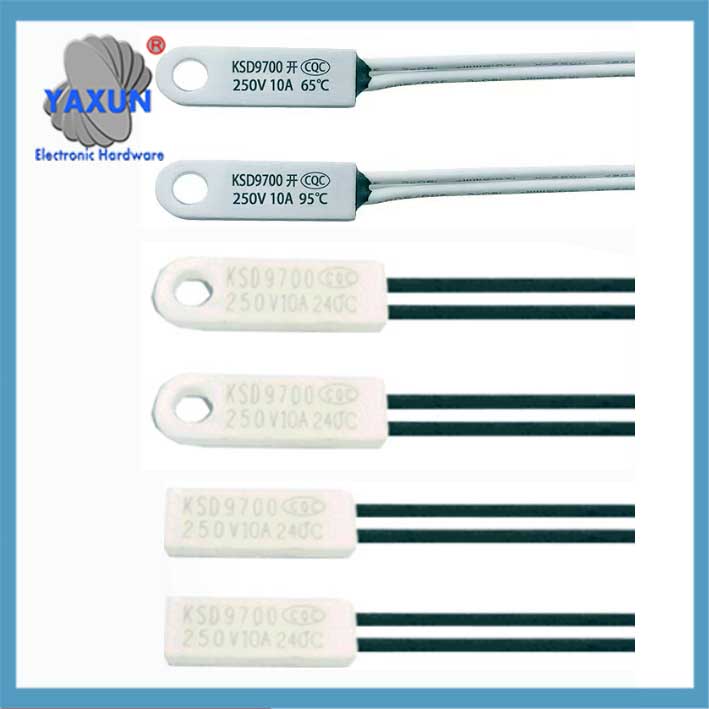

 Normally open KSD9700 temperature control switch |
 Normally closed KSD9700 temperature control switch |
ii. Typical application scenarios
KSD301 درجہ حرارت سوئچ پیرامیٹرز
| قسم | Applicable equipment | Protection purpose |
| NC type | – Motor overheat protection (واشنگ مشین, air conditioner compressor) – Electric water heater anti-dry burning – Transformer overload protection |
When the temperature exceeds the standard, the power supply is forced to be cut off to avoid equipment damage |
| NO type | – Cooling fan control (computer CPU, cabinet) – Heater overtemperature alarm – Greenhouse heating system |
Activate auxiliary equipment (such as fans/alarms) when the temperature exceeds the standard |
iii. Key considerations for selection
Safety priority
NC type must be selected for forced power off scenarios (such as fire prevention, electric shock prevention) to avoid accidents caused by continuous power supply at high temperatures.
Circuit design matching
NC type needs to be connected in series in the main circuit live wire, and NO type is usually connected in parallel to control auxiliary equipment.
Identification
“بی” یا “این سی” marked on the shell indicates normally closed type, “k” یا “نہیں” indicates normally open type (such as KSD301-85B indicates normally closed type at 85℃).
Test verification
Use a multimeter to detect: NC type is connected at normal temperature, and NO type is disconnected at normal temperature.

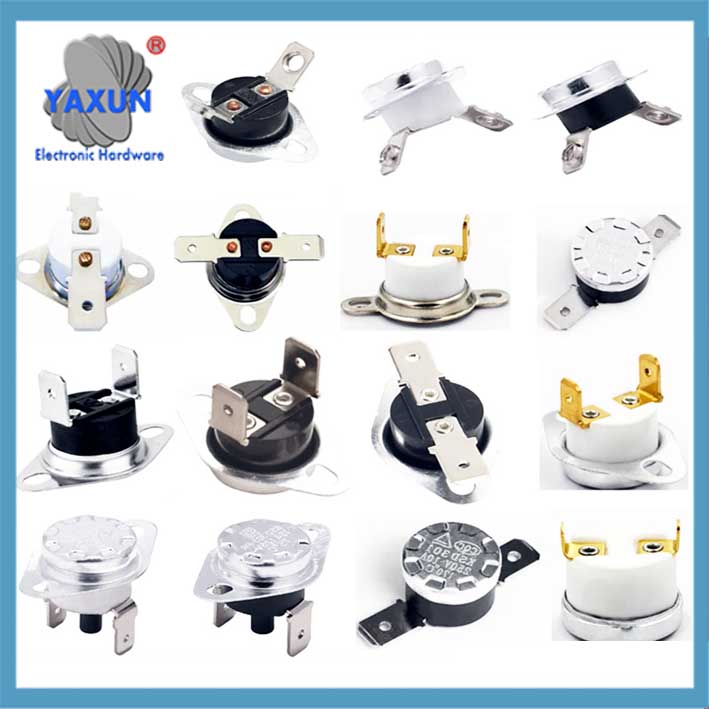

Normally open KSD301,KSD302 disc switch
iv. Avoiding operational errors
mermaid Copy Code
graph TB
a[Equipment requirements] –> بی{Does it need to be powered off at high temperature? }
بی –>|ہاں| c[Select NC type]
بی –>|نہیں| ڈی{Does it need to be started at high temperature? }
ڈی –>|ہاں| ای[Select NO type]
ڈی –>|نہیں| f[Re-evaluate the design]
▶️ Summary: این سی کی قسم ہے “ہنگامی بریک” حفاظت کے تحفظ کے لئے, اور کوئی قسم نہیں ہے “درجہ حرارت ٹرگر” ذہین کنٹرول کے لئے. دونوں کی ایکشن لاجکس تکمیلی ہیں. انتخاب کو سرکٹ فنکشن کی ضروریات کو سختی سے ملنا چاہئے (جامع).

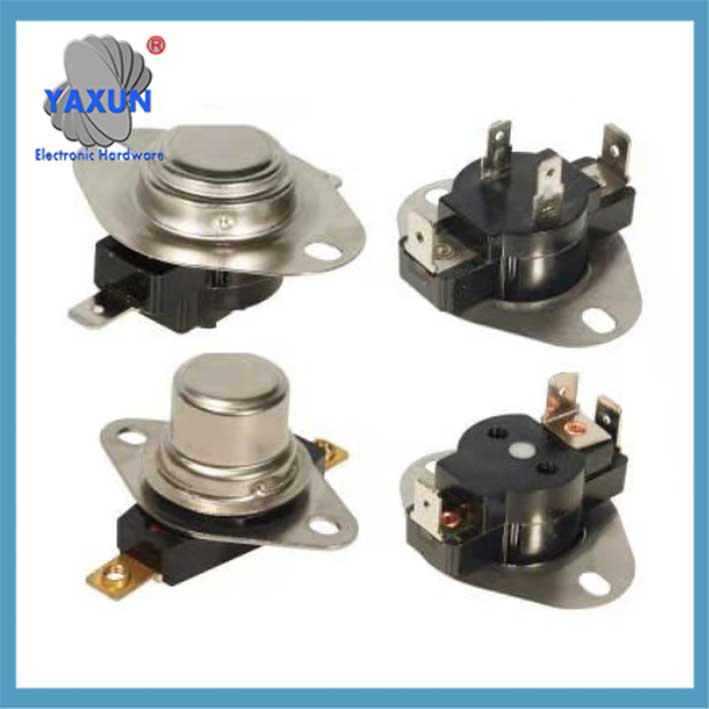

Normally closed KSD301,KSD302 temperature limit switch
