Micro Motor Overheat Protection Switch & Overload Protector

Comparison of the differences between micro motor overheat protection switch & предпазител от претоварване. When it comes to micro motor thermal protectors, the price range is between $0.1 yuan and $0.4 yuan. Models include 5ap, TB02-BB8D, 17am, KSD9700, ST01, S06, и т.н., which are mainly used for seat sunroof wiper motors and have sealing and waterproof characteristics. Parameters of the 17AM model: normally closed, operating temperature 120 степени, maximum current 10A~35A. Automatic reset function, suitable for military, medical and other fields. Here we need to emphasize the temperature range and current parameters, as well as the characteristics of automatic reset.

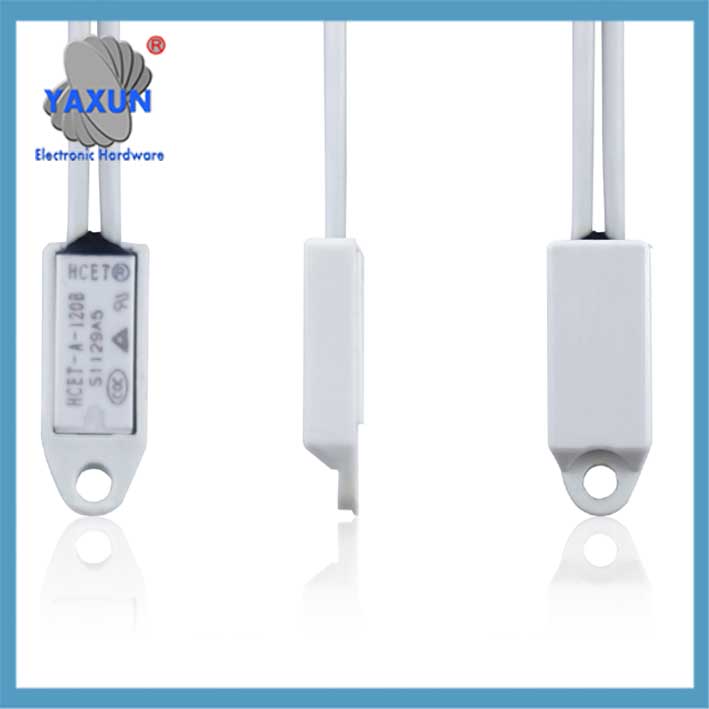

Motor TB05, BB8DTB02, ST-22 35℃- 160℃ mini thermal protector

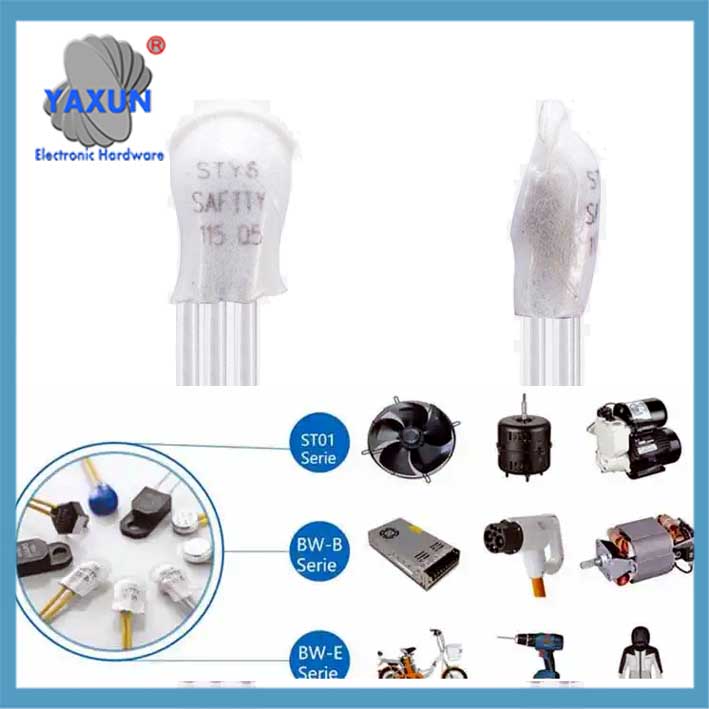

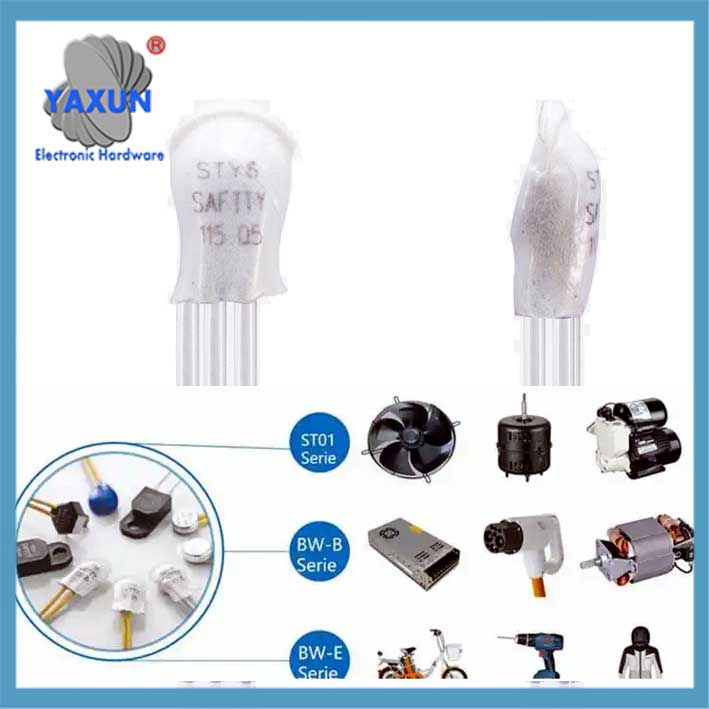

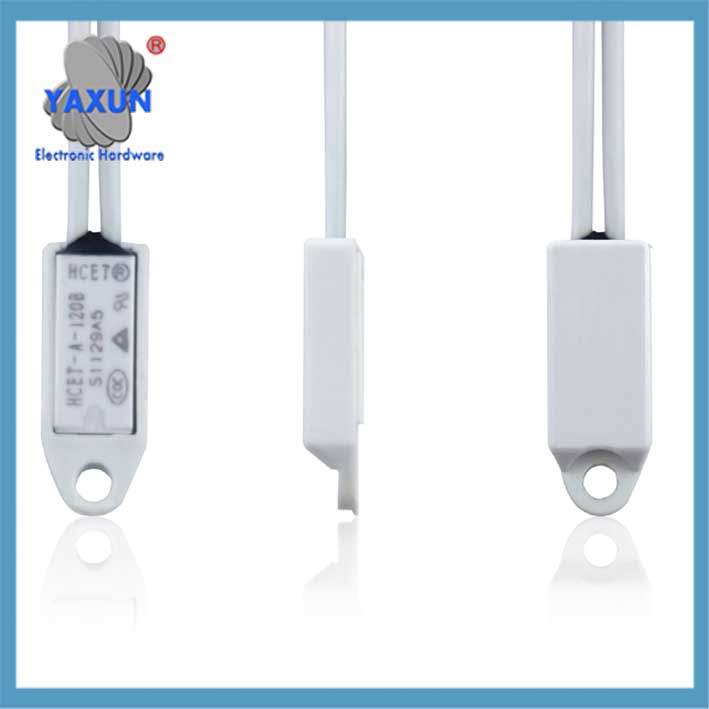

Micro thermal protector temperature control switch S01, S06, ST-22

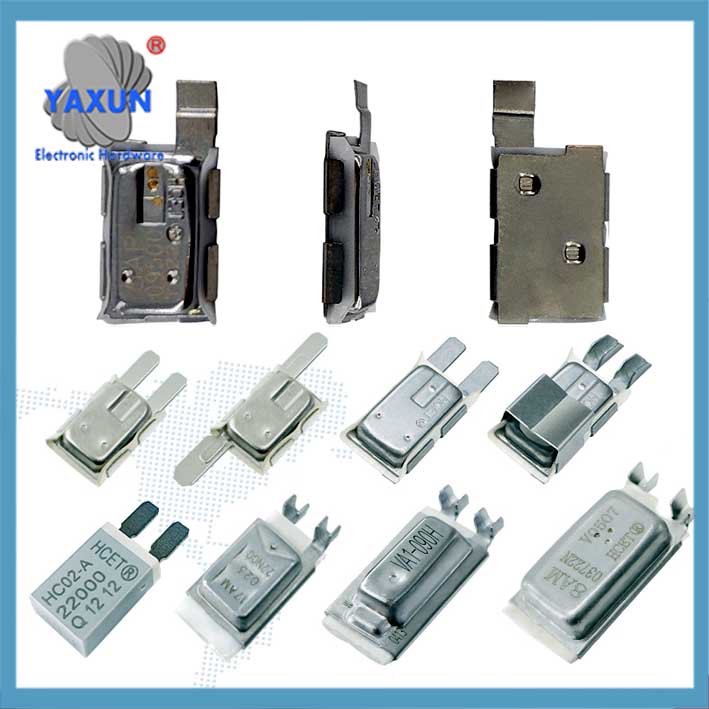

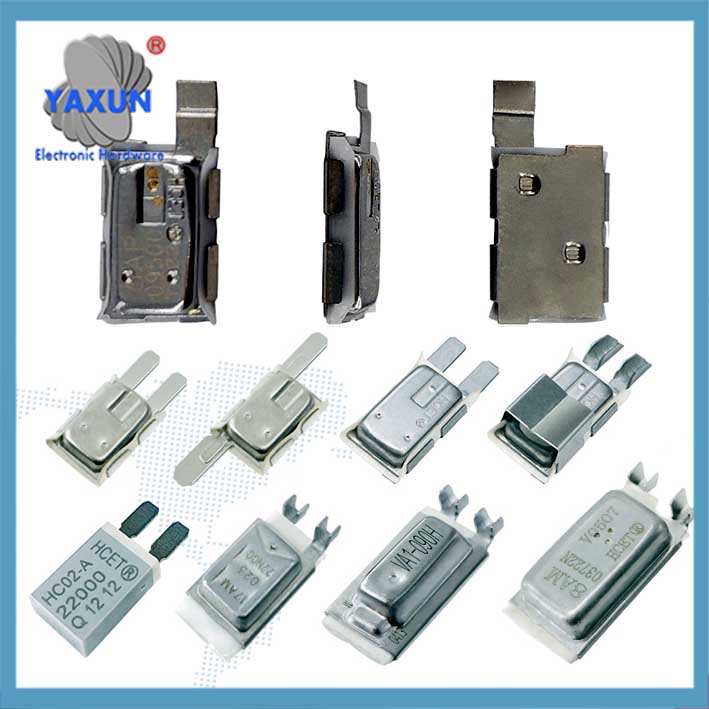

2MP, 6AP, 17AM+PTC, 5AP, 8сутринта, KSD9700 motor overheat protection switch

Regarding motor overload protectors, motor motor protectors (M-B) use microprocessor technology. It has multiple protections such as overcurrent, phase failure, and stall, and the trip time is adjustable (0.2-30 секунди), and supports manual or electric reset. The parameter setting method is supplemented, such as setting the overcurrent protection to 1.5-2 times the rated current and the overload to 1.1-1.3 пъти. These settings are very important for practical applications.

The motor overload protector stall protection takes effect after the startup is completed. When the current exceeds the set value, it will immediately act. The quick-break protection is for short-circuit faults, and is divided into two states: startup and operation. The overheating inverse time protection is based on the heat accumulation model, combining the thermal effects of positive and negative sequence currents. These protection mechanisms need to be explained in points to ensure that users understand how to handle different faults.

In terms of installation and compatibility, it is pointed out that the protector can be installed at the front end of the inverter, but attention should be paid to the rated current matching and grounding requirements (wire diameter ≥3.5mm², съпротива <10о). The difference between thermal relays and temperature relays is that the former is based on the thermal effect of current, and the latter is installed inside the motor to measure temperature. It is necessary to distinguish here to avoid confusion.

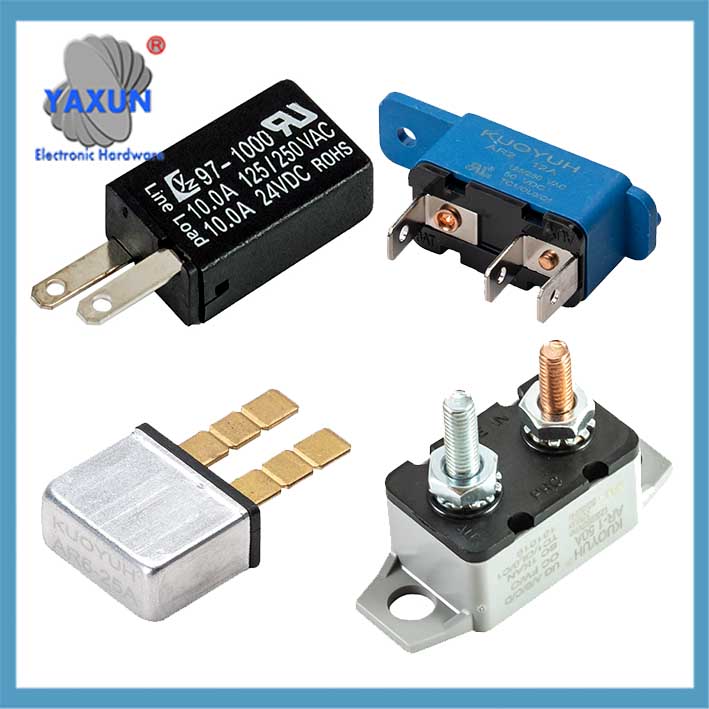

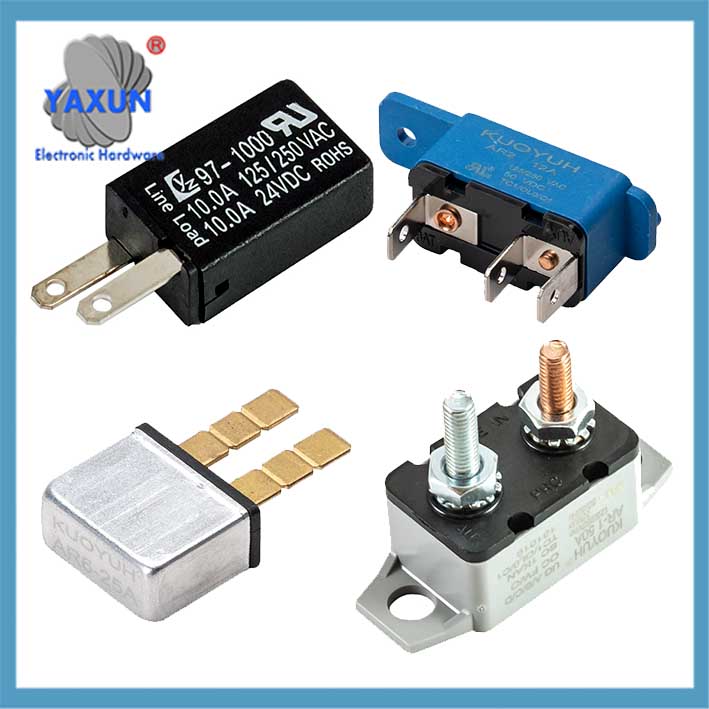

Automotive Motor Circuit Breakers AR, AR2, 24, 97, 18, 17 Серия

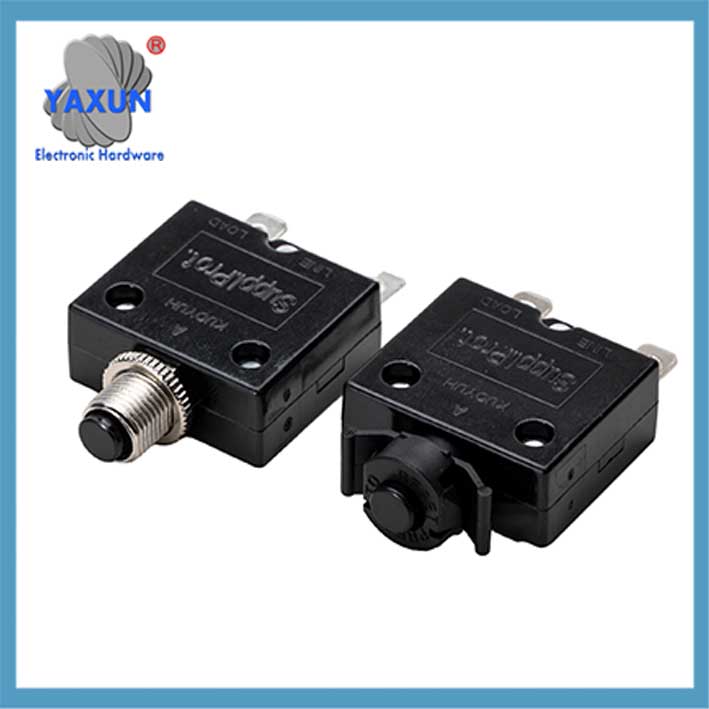

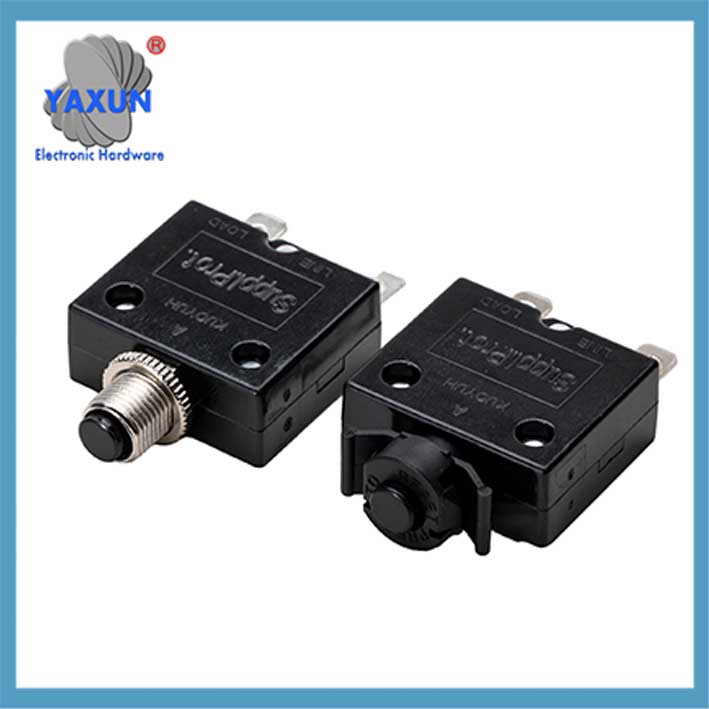

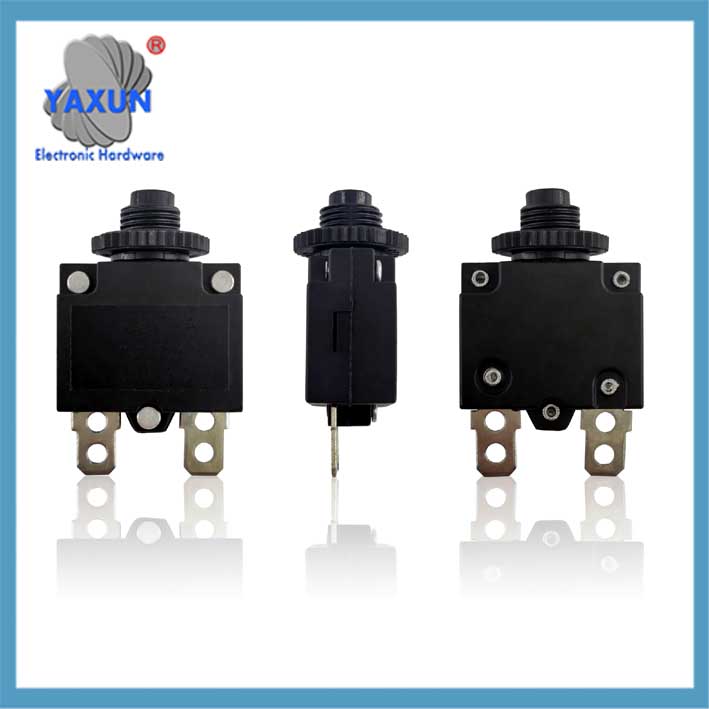

98 Series Manual, Automatic Reset Motor Overload Protector

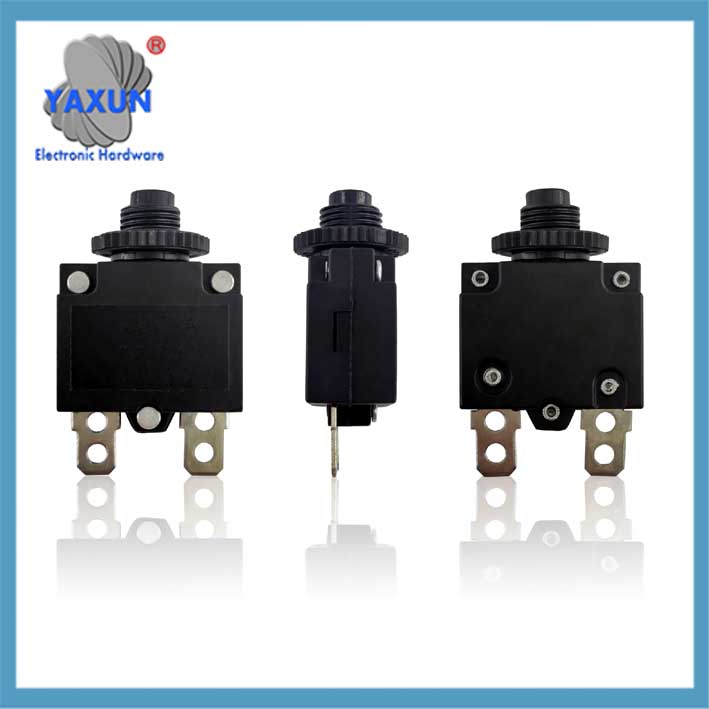

КУОЙУХ 88 Series Motor Overload Protector

аз. Overheat protection switch (temperature protector)
‌Working principle and characteristics‌
Using bimetallic temperature sensing elements, when the temperature reaches the set threshold, the contacts automatically open/close and cut off the circuit; когато температурата падне, it automatically resets and resumes work.
‌Typical models‌: such as 17AM, 17AM+PTCT, TB02-BB8D series, operating temperature 40℃~160℃, maximum current 10A~60A, rated voltage 250V, normally closed design, with waterproof sealing function.
‌Volume and installation‌: Miniaturized design (such as flat installation), suitable for space-constrained scenes, directly embedded in the motor winding or the surface of the heating component.

‌Core application scenarios‌
Automotive micro motors: двигатели за люк, моторчета за чистачки, seat adjustment motors, и т.н.
Household appliances: low-power devices such as cooling fans, water pump motors, and power tools that need to prevent overheating.
In an ignition system, it can shut off the engine to prevent damage from overheating.

II. Overload protector (KUOYUH motor protector)
‌Multi-function protection mechanism‌
‌Overload protection‌: Monitor current and trip when it exceeds the rated value (usually set to 1.1-1.3 пъти).
‌Short circuit protection‌: Instantaneously cut off the circuit when the current rises abnormally (action time <0.1 второ).
‌Stabbing protection‌: If the current continues to be ≥200% of the rated value after starting, it will act immediately.
‌Phase loss/unbalance protection‌: When there is a phase loss or three-phase imbalance, it will respond within 3 секунди.
Monitors the current flowing through the motor circuit and opens the circuit when the current exceeds a predetermined limit.
Mechanism:
Can be thermal (using a bimetallic strip) or electronic, and trips after a certain time delay to allow for starting surges.
Use Cases:
Protects motors from damage due to sustained overcurrent situations, such as those caused by a jammed impeller or high-torque load.
Пример:
A refrigerator compressor overload protector will shut off the compressor if it overheats or if it fails to start.

‌Technology upgrade features‌
Integrated microprocessor, supports real-time high-precision monitoring of current, voltage, температура, and displays the cause of the fault through LED.
It has both communication functions (such as RS485 interface) and supports remote reset and data upload.
Compatible with 35mm rail installation, can directly replace traditional thermal relays.

III. Selection and installation points
‌Parameter setting principle‌
Overcurrent protection current: set to 1.5-2 times the rated current of the motor.
Temperature protection: The rated current is 0.8 times the rated value of the motor.
Stall protection: The threshold is set to 200% of the rated current, and the action is zero-delay.

‌Compatibility considerations‌
When installing the inverter front end, the inverter output power must be matched, and the rated current is adjusted to the maximum to avoid false triggering.
Grounding requirements: The protector and the motor must be reliably grounded (wire diameter ≥ 3.5mm² copper wire, grounding resistance <10о).

IV. Comparison of typical products

Tip: For micro motors, integrated temperature switches (such as 17AM) are preferred for compact protection; in industrial scenarios, intelligent protectors (such as ARD2) are required to deal with complex faults.
