لنلین الیکٹرک فیوز ہولڈر & کیبل اسمبلی

الیکٹرک فیوز ہولڈرز اور کیبل اسمبلیاں سرکٹ پروٹیکشن سسٹم کے بنیادی اجزاء ہیں, فیوز کو محفوظ اور مربوط کرنے کے لئے استعمال کیا جاتا ہے. وہ اوورلوڈ یا شارٹ سرکٹ کی صورت میں سرکٹ میں فوری مداخلت کو یقینی بناتے ہیں. مندرجہ ذیل کلیدی معلومات ہے:
میں. Core Functions and Categories
‌Basic Function‌
Provides mechanical support and electrical connection to ensure stable fuse operation.
When current flow is abnormal, the fuse disconnects the circuit, protecting equipment.
‌Main Categories‌
‌By Installation Method‌:
‌Panel Mount‌: For use with devices such as car amplifiers and speakers.
‌PCB Mount‌: For use with circuit boards, such as the 5×20mm fuse holder.
‌Lead Mount‌: Commonly found in automotive wiring harnesses, supports quick plugging and unplugging.
‌By Fuse Type‌:
‌Plug Mount‌: Suitable for small, میڈیم, and large automotive fuses (such as 12V/24V systems).
‌Screw Mount‌: For use with high current applications (such as 200A industrial equipment).

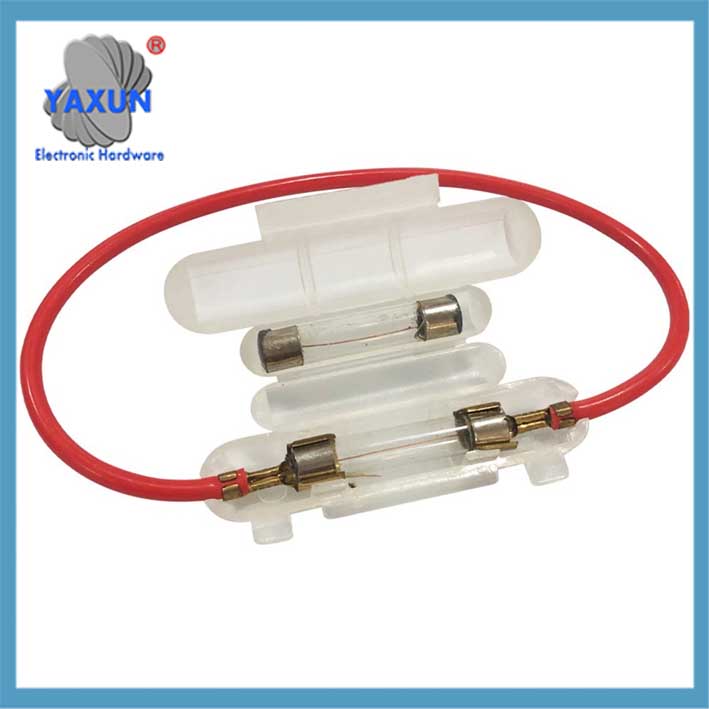

Wired Mounting Fuse Holder with 6x30mm 10A Fuse Tools & Home Improvement

Wire Harness ATC, ATO 20A, 30a, 40A Blade Fuse Holder 12AWG For Car Marine Truck

MRS FUSE BOX HOLDER HARNESS IN-LINE for 125cc 250cc ATV DIRT PIT BIKE GO KART

ii. Key Design Parameters
بجلی کی کارکردگی
موجودہ ریٹیڈ: Covers 1A to 200A. New energy vehicles must support high voltages of 300V-1000V.
Circuit Breaking Capacity: Solar inverters must meet high-power interruption requirements.

Materials and Processing
Conductive Components: Copper alloy or silver-plated conductors, ensuring low contact resistance (<10MΩ).
Insulation: PBT engineering plastic or polyimide, with high-temperature resistance exceeding 85°C.

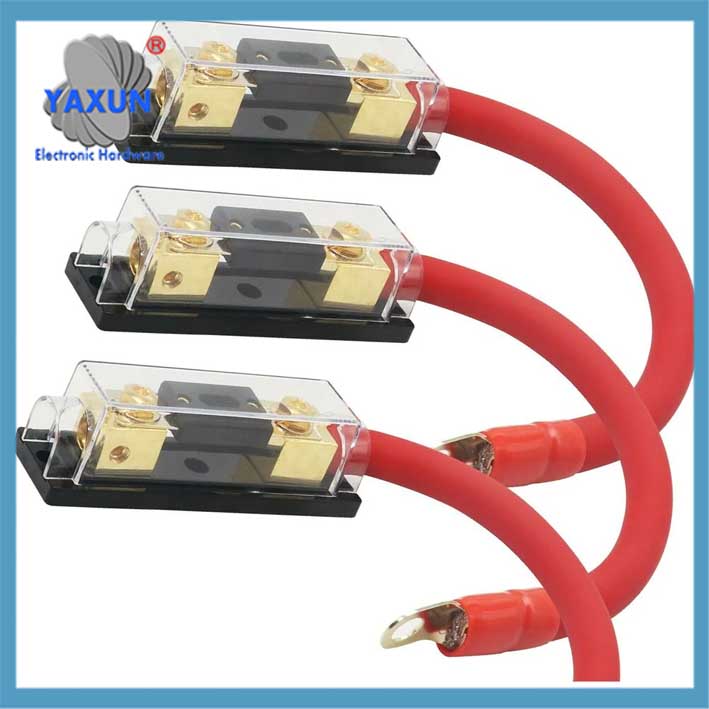

OFC 200 Amp ANL Gold Terminal Fuse Holder Battery Installation Kit

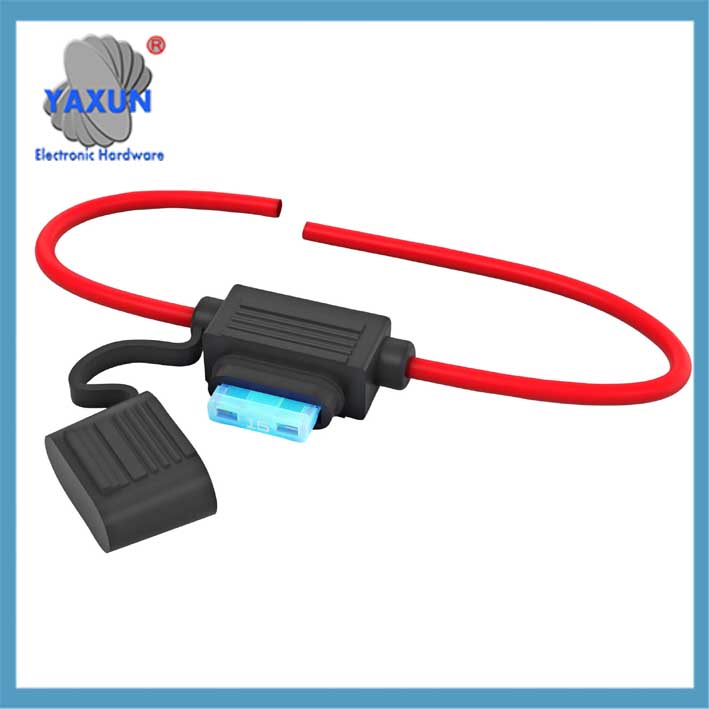

16 AWG گیج کاپر وائر کار آٹو بلیڈ فیوز واٹر پروف 15 AMP

iii. Typical Application Scenarios
Automotive
Engine compartment and cab fuse boxes protect critical circuits such as the ECU and headlights.
Waterproof design (جیسے, IP67 rating) for humid environments.

New Energy and Industrial
Electric vehicle high-voltage systems require specialized fuse holders that withstand high temperatures and high currents (جیسے, 200a).
The photovoltaic inverter uses a UL-certified fuse holder supporting 20A-30A DC fusing.

iv. Selection and Installation Key Points
‌Load Matching‌: Motor circuits require a slow-blow type, while electronic equipment requires a fast-blow type.
‌Environmental Adaptability‌: For high-temperature environments, choose a ceramic housing; for compact spaces, use a patented threaded structure.
‌Certification Standards‌: UL and IEC certified products are preferred to ensure safety and compliance.
