PTC termistorji za ogrevanje s konstantno temperaturo

Pregled izdelka
The constant temperature heating characteristics of PTC thermistors for constant temperature heating are determined by the material properties. The principle is that when power is applied to the PTC thermistor, self-heating causes the component’s temperature to rise, causing the resistance value to enter the transition region and the current to drop rapidly. Consequently, the surface temperature of the PTC thermistor remains constant. Ta temperatura je odvisna izključno od Curiejeve temperature PTC termistorja in uporabljene napetosti, in je v veliki meri neodvisen od temperature okolja.

PTC grelniki s konstantno temperaturo so grelne naprave, zasnovane za izkoriščanje grelnih lastnosti s konstantno temperaturo PTC termistorjev. V nizkem- in srednje močne aplikacije za ogrevanje, PTC grelniki nudijo prednosti pred tradicionalnimi grelnimi elementi, kot je ogrevanje s konstantno temperaturo, brez odprtega ognja, visoka učinkovitost pretvorbe toplote, minimalen vpliv napajalne napetosti, in dolgo življenjsko dobo. R. vse bolj daje prednost njihovi uporabi v električnih grelnih napravah&D inženirji.

PTC thermistors for constant temperature heating can be manufactured in a variety of shapes and specifications. Običajne oblike vključujejo diske, pravokotniki, trakovi, prstani, and honeycomb pores. Combining the above-mentioned PTC heating elements with metal components can create various high-power PTC heaters.

Oblikovanje aplikacij
Uporaba principa ogrevanja s konstantno temperaturo PTC termistorjev, these devices can be designed for applications such as hair straighteners, sponke za lase, sponke za lase, perms, perms, keramične trajne, klešče za lase, kodralniki, električni glavniki, navijalke za lase z negativnimi ioni, masažni aparati, repelenti proti komarjem, repelenti proti komarjem, razpršilniki tuljav proti komarjem, razpršilniki dišav, razpršilniki parfumov, pištole za vroče lepilo, heated foot baths, laminating machines, termo skodelice, water boilers, kavni stroji, grelci za kavo, kavni grelci, avtomati za vodo, avtomati za toplo in hladno vodo, grelniki mleka, grelniki vode, shower heaters, električni repelenti proti komarjem, grelci za roke, sušilniki, električne grelne plošče, električni likalniki, električni spajkalniki, electric thermal adhesives, kodralniki, prhe, fan heaters, drying rooms, Električni grelniki, Električni grelniki, air conditioning systems, air conditioning heating systems, space heaters, air heating systems, hot water kettles, Shoe dryers, shoe drying devices, grelci za noge, električne grelne plošče, analizatorji spektra, spektralno terapijo, naprave za fizikalno terapijo, infrardeče ogrevanje, clothes dryers, uplinjači motornih koles, električni vlažilci zraka, moisture-proof heating for electrical instruments, small crystal device constant temperature baths, constant temperature incubators, elektronske termo steklenice, izolirane škatle, izolirane skodelice, izolirani pladnji, izolirane omare, insulated tables, električne grelne plošče, thermal therapy devices, hot coffee machines, steam beauty treatments, talilniki voska, generatorji pare, vlažilci zraka, vlažilci zraka, ekstruderji čokolade, hot packs, električni spajkalniki, acupuncture, urinski katetri, grelci za noge, sušilniki za roke, stroji za pripravo sladke vate, masažni aparati, liquefied gas cylinder heating, majhni toplozračni grelci, sušilniki za lase, room heaters, sušilniki, dry cabinets, clothes dryers, industrial drying equipment, Electric dust collector hopper heater, train locomotive electric heater, mold heating, control cabinet heating moisture-proof, monitor moisture-proof, Električna pečica, electric toaster, infusion box, medicinska oprema, gospodinjski aparati, daily appliances, male gospodinjske aparate…itd.

PTC heater Chinese manufacturer

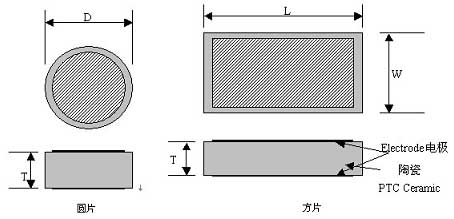

The structure and size of PTC heating plate

Model Parameters

Ring Temperature Resistance 25℃/Ω	Temperatura površine /℃	Največja napetost /V	Premer D/mm	Dolžina L/mm	širina W/mm	Debelina T/mm
500~1500	50	270	8			3
300~800	85	140		16	11	2.5
150~400	90	140		16	11	2.5
600~1500	100	270	20			2.5
500~1500	110	270		16	11	2.2
500~1500	130	270	20			2.2
200~800	150	140	10.8			2.2
200~800	155	270	10.8			2.2
500~1500	155	270	10.8			2.2
1.5~5K	170	140		5	4	1.6
150~500	175	140	10.8			2.2
500~1500	180	270	10.8			2.2
200~800	185	270	10.8			2.2
1~3K	195	270	8			2.5
800~2K	230	270		19	12	2.2
800~2K	250	270	13			2.5
2~5K	250	270	20			2.5
300~1K	250	140		23.5	10	2.2
800~2K	255	270		23.5	10	2.2
500~2K	275	270		35	10	2.1
300~800	280	140		24	15	2.5
0.8~3.5K	280	270		24	15	2.5

Usage Notes
1) PTC grelec ima samodejno regulacijo konstantne temperature, odpravlja potrebo po sistemu za nadzor temperature. Je osrednja komponenta vseh grelnikov PTC.
2) Na voljo so štiri vrste elektrod: brezelektrični nikelj + srebro, talilno pihan aluminij, tiskan aluminij + srebro, in tiskan aluminij.
3) The operating voltage range is very wide. Even with a 2x increase in operating voltage, the surface temperature changes minimally.
4) Ko se skupaj uporablja več grelnikov PTC, morajo biti povezani vzporedno, ne v seriji.
5) Ta izdelek nima svinčenih žic ali izolacije. Če to ni izvedljivo, please select a model with an external insulation film or a metal housing.

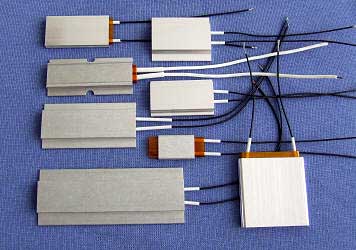

Kovinski PTC grelec

Dimensions and structure of metal shell PTC heater

Dimensions and Structure of Externally Insulated Film PTC Heaters

Model Parameters

Length/mm	Width/mm	Thickness/mm	Surface Temperature/℃	Insulation Withstand Voltage/V	Operating Voltage/V
30~120	20	5.0	60~280	3750	100~240
30~120	30	6.0	60~280	3750	100~240
30~120	33	7.0	60~280	3750	100~240
30~120	35	7.0	60~280	3750	100~240
30~120	40	7.0	60~280	3750	100~240
30~120	43	7.0	60~280	3750	100~240
30~120	46	7.0	60~280	3750	100~240
30~120	56	7.0	60~280	3750	100~240

Temperatures can be designed between 60°C and 280°C, and operating voltages can be designed between 12V and 240V, odvisno od zahtev kupca.

Usage Precautions
1) After power is applied, the heating power decreases gradually and then stabilizes. Stabilna moč je odvisna od pogojev delovanja. The power of the same PTC heater can vary several times depending on operating conditions. Hitrejše je odvajanje toplote, večja je stabilna moč; višja je površinska temperatura PTC, večja je moč.
2) Površinsko temperaturo grelnika PTC nadzira sam PTC in jo je mogoče nadzorovati z odklopom tokokroga, but not by adjusting the voltage.
3) While PTCs are inherently highly reliable and have a long lifespan, improper assembly can result in unstable power and temperature.
4) Pri uporabi več PTC-jev, morajo biti povezani vzporedno, ne v seriji.

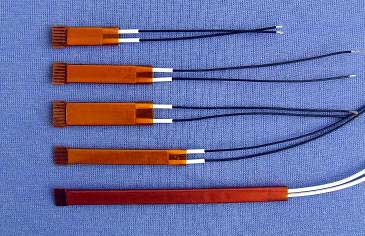

Externally Insulated Film PTC Heaters

Dimensions and Structure of Externally Insulated Film PTC Heaters

Model Parameters

Dolžina (mm)	širina (mm)	Debelina (mm)	Temperatura površine (°C)	Insulation Withstand Voltage (V)	Delovna napetost (V)
24	10	3.0~3.5	85~280	3750	100~240
24	15	3.0~3.5	85~280	3750	100~240
35	8	3.0~3.5	85~280	3750	100~240
35	10	3.0~3.5	85~280	3750	100~240
35	13	3.0~3.5	85~280	3750	100~240
35	15	3.0~3.5	85~280	3750	100~240
48	8	3.0~3.5	85~280	3750	100~240
48	10	3.0~3.5	85~280	3750	100~240
48	13	3.0~3.5	85~280	3750	100~240
48	15	3.0~3.5	85~280	3750	100~240
60	8	3.0~3.5	85~280	3750	100~240
60	10	3.0~3.5	85~280	3750	100~240
60	13	3.0~3.5	85~280	3750	100~240
60	15	3.0~3.5	85~280	3750	100~240
70	8	3.0~3.5	85~280	3750	100~240
70	10	3.0~3.5	85~280	3750	100~240
70	13	3.0~3.5	85~280	3750	100~240
70	15	3.0~3.5	85~280	3750	100~240
70 above	15	3.0~3.5	85~280	3750	100~240
