PTC termistory pre ohrev na konštantnú teplotu

Prehľad produktov
The constant temperature heating characteristics of PTC thermistors for constant temperature heating are determined by the material properties. The principle is that when power is applied to the PTC thermistor, self-heating causes the component’s temperature to rise, causing the resistance value to enter the transition region and the current to drop rapidly. Consequently, the surface temperature of the PTC thermistor remains constant. Táto teplota závisí výlučne od Curieovej teploty termistora PTC a aplikovaného napätia, a je do značnej miery nezávislý od teploty okolia.

PTC ohrievače s konštantnou teplotou sú vykurovacie zariadenia navrhnuté tak, aby využívali vykurovacie charakteristiky PTC termistorov s konštantnou teplotou. V nízkej- a stredne výkonné vykurovacie aplikácie, PTC ohrievače ponúkajú výhody oproti tradičným vykurovacím telesám, ako je vykurovanie na konštantnú teplotu, žiadny otvorený oheň, vysoká účinnosť premeny tepla, minimálny vplyv napájacieho napätia, a dlhú životnosť. Ich použitie v elektrických vykurovacích spotrebičoch stále viac uprednostňuje R&D inžinieri.

PTC thermistors for constant temperature heating can be manufactured in a variety of shapes and specifications. Medzi bežné tvary patria disky, obdĺžniky, prúžky, krúžky, and honeycomb pores. Combining the above-mentioned PTC heating elements with metal components can create various high-power PTC heaters.

Dizajn aplikácie
Využíva princíp vykurovania na konštantnú teplotu PTC termistorov, these devices can be designed for applications such as hair straighteners, sponky do vlasov, sponky do vlasov, perm, perm, keramické perm, kliešte na vlasy, kulmy, elektrické hrebene, kulmy na vlasy s negatívnymi iónmi, masérov, repelenty proti komárom, repelenty proti komárom, dávkovače cievok proti komárom, dávkovače vôní, dávkovače parfumov, tavné lepiace pištole, heated foot baths, laminovacie stroje, termohrnčeky, water boilers, kávové stroje, ohrievače kávy, ohrievače kávy, dávkovače vody, dávkovače teplej a studenej vody, ohrievače mlieka, ohrievače vody, shower heaters, elektrické repelenty proti komárom, ohrievače rúk, sušičky, elektrické varné platne, elektrické žehličky, elektrické spájkovačky, electric thermal adhesives, kulmy, sprchy, fan heaters, drying rooms, elektrické ohrievače, elektrické ohrievače, air conditioning systems, air conditioning heating systems, space heaters, air heating systems, hot water kettles, Shoe dryers, shoe drying devices, ohrievače nôh, elektrické vykurovacie dosky, spektrálne analyzátory, spektrálna terapia, prístroje na fyzikálnu terapiu, infračervené vykurovanie, sušičky bielizne, karburátory motocyklov, elektrické zvlhčovače, moisture-proof heating for electrical instruments, small crystal device constant temperature baths, constant temperature incubators, elektronické termosky, izolované boxy, izolované poháre, izolované vaničky, izolované skrine, insulated tables, elektrické vykurovacie dosky, thermal therapy devices, hot coffee machines, steam beauty treatments, taviče vosku, parné generátory, zvlhčovače, zvlhčovače, čokoládové extrudéry, hot packs, elektrické spájkovačky, acupuncture, močové katétre, ohrievače nôh, sušiče rúk, stroje na výrobu cukrovej vaty, masérov, liquefied gas cylinder heating, malé teplovzdušné ohrievače, sušiče vlasov, room heaters, sušičky, dry cabinets, sušičky bielizne, industrial drying equipment, Electric dust collector hopper heater, train locomotive electric heater, mold heating, control cabinet heating moisture-proof, monitor moisture-proof, elektrická rúra, electric toaster, infusion box, lekárske vybavenie, domáce spotrebiče, daily appliances, malé spotrebiče…tam.

PTC heater Chinese manufacturer

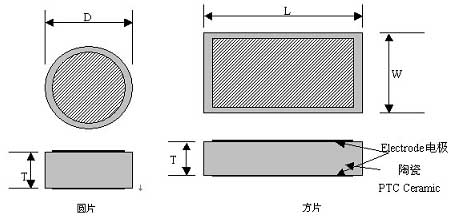

The structure and size of PTC heating plate

Parametre modelu

Ring Temperature Resistance 25℃/Ω	Povrchová teplota /℃	Maximálne napätie /Vložka	Priemer D/mm	Dĺžka L/mm	šírka W/mm	Hrúbka T/mm
500~1500	50	270	8			3
300~800	85	140		16	11	2.5
150~400	90	140		16	11	2.5
600~1500	100	270	20			2.5
500~1500	110	270		16	11	2.2
500~1500	130	270	20			2.2
200~800	150	140	10.8			2.2
200~800	155	270	10.8			2.2
500~1500	155	270	10.8			2.2
1.5~5K	170	140		5	4	1.6
150~500	175	140	10.8			2.2
500~1500	180	270	10.8			2.2
200~800	185	270	10.8			2.2
1~3K	195	270	8			2.5
800~2K	230	270		19	12	2.2
800~2K	250	270	13			2.5
2~5K	250	270	20			2.5
300~1K	250	140		23.5	10	2.2
800~2K	255	270		23.5	10	2.2
500~2K	275	270		35	10	2.1
300~800	280	140		24	15	2.5
0.8~3.5K	280	270		24	15	2.5

Usage Notes
1) Ohrievač PTC je vybavený automatickou reguláciou konštantnej teploty, eliminuje potrebu systému regulácie teploty. Je základnou súčasťou všetkých ohrievačov PTC.
2) K dispozícii sú štyri typy elektród: bezprúdový nikel + striebro, tavený fúkaný hliník, potlačený hliník + striebro, a potlačený hliník.
3) The operating voltage range is very wide. Even with a 2x increase in operating voltage, the surface temperature changes minimally.
4) Keď sa súčasne používa viacero ohrievačov PTC, they should be connected in parallel, not in series.
5) This product does not have lead wires or insulation. If this is not feasible, please select a model with an external insulation film or a metal housing.

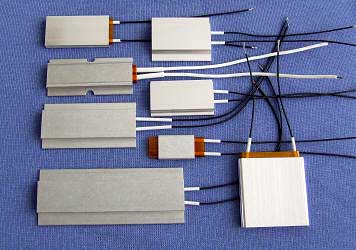

Kovový plášť PTC ohrievač

Dimensions and structure of metal shell PTC heater

Dimensions and Structure of Externally Insulated Film PTC Heaters

Parametre modelu

Length/mm	Width/mm	Thickness/mm	Surface Temperature/℃	Insulation Withstand Voltage/V	Operating Voltage/V
30~120	20	5.0	60~280	3750	100~240
30~120	30	6.0	60~280	3750	100~240
30~120	33	7.0	60~280	3750	100~240
30~120	35	7.0	60~280	3750	100~240
30~120	40	7.0	60~280	3750	100~240
30~120	43	7.0	60~280	3750	100~240
30~120	46	7.0	60~280	3750	100~240
30~120	56	7.0	60~280	3750	100~240

Temperatures can be designed between 60°C and 280°C, and operating voltages can be designed between 12V and 240V, v závislosti od požiadaviek zákazníka.

Bezpečnostné opatrenia pri používaní
1) After power is applied, the heating power decreases gradually and then stabilizes. Stable power depends on operating conditions. The power of the same PTC heater can vary several times depending on operating conditions. The faster the heat dissipation, the greater the stable power; the higher the PTC surface temperature, the higher the power.
2) The surface temperature of the PTC heater is controlled by the PTC itself and can be controlled by disconnecting the circuit, but not by adjusting the voltage.
3) While PTCs are inherently highly reliable and have a long lifespan, improper assembly can result in unstable power and temperature.
4) Pri použití viacerých PTC, they should be connected in parallel, not in series.

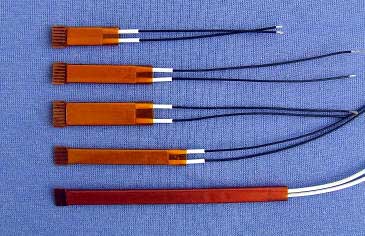

Externally Insulated Film PTC Heaters

Dimensions and Structure of Externally Insulated Film PTC Heaters

Parametre modelu

Dĺžka (mm)	šírka (mm)	Hrúbka (mm)	Povrchová teplota (° C)	Odolné napätie izolácie (Vložka)	Prevádzkové napätie (Vložka)
24	10	3.0~3.5	85~280	3750	100~240
24	15	3.0~3.5	85~280	3750	100~240
35	8	3.0~3.5	85~280	3750	100~240
35	10	3.0~3.5	85~280	3750	100~240
35	13	3.0~3.5	85~280	3750	100~240
35	15	3.0~3.5	85~280	3750	100~240
48	8	3.0~3.5	85~280	3750	100~240
48	10	3.0~3.5	85~280	3750	100~240
48	13	3.0~3.5	85~280	3750	100~240
48	15	3.0~3.5	85~280	3750	100~240
60	8	3.0~3.5	85~280	3750	100~240
60	10	3.0~3.5	85~280	3750	100~240
60	13	3.0~3.5	85~280	3750	100~240
60	15	3.0~3.5	85~280	3750	100~240
70	8	3.0~3.5	85~280	3750	100~240
70	10	3.0~3.5	85~280	3750	100~240
70	13	3.0~3.5	85~280	3750	100~240
70	15	3.0~3.5	85~280	3750	100~240
70 above	15	3.0~3.5	85~280	3750	100~240

Temperatures can be designed between 50°C and 280°C, and operating voltages can be designed between 3V and 240V, v závislosti od požiadaviek zákazníka.
