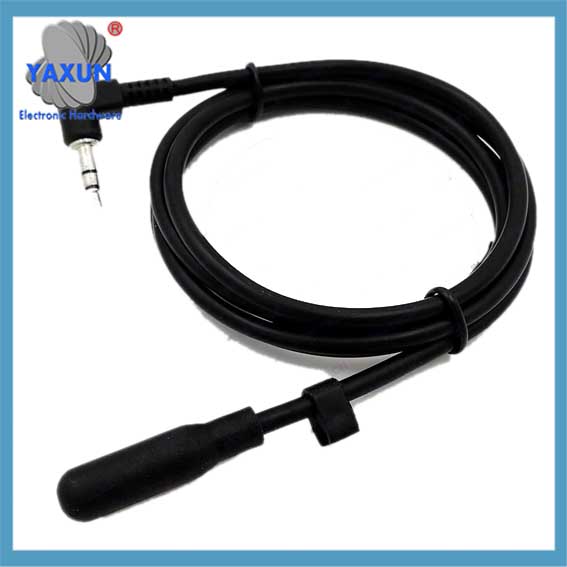

CAREL NTC030HP00 TPE Probe NTC Sensor for HVAC/R

The NTC030HP00 is a passive NTC temperature probe manufactured by YAXUN in China, an OEM for CAREL. It is widely used in HVAC/R systems.

The NTC030HP00 is a passive NTC temperature probe manufactured by YAXUN in China, an OEM for CAREL. It is widely used in HVAC/R systems.

Here are its core parameters and features:

Parameter Items Detailed Specifications
Marca CAREL (Industries)
Tip senzor NTC (Coeficient de temperatură negativ) Thermistor (Customizable)
Rezistenta nominala 10 kΩ (在 25°C 时,±1%), (Customizable)
Domeniul de măsurare -50°C to 105°C (probe tip)

*(Nota: Some specifications state cable temperature tolerance as -50°C to 50°C)*

Probe Size Diametru 6 mm, Lungime 15 mm
Lungimea cablului 3 metri (fixed connection)
Evaluare de protecție IP67 (dustproof and briefly submersible)
Precizie ±0.3°C (la 25°C)
Locul de origine Manufacturing OEM: YXAUN (China)

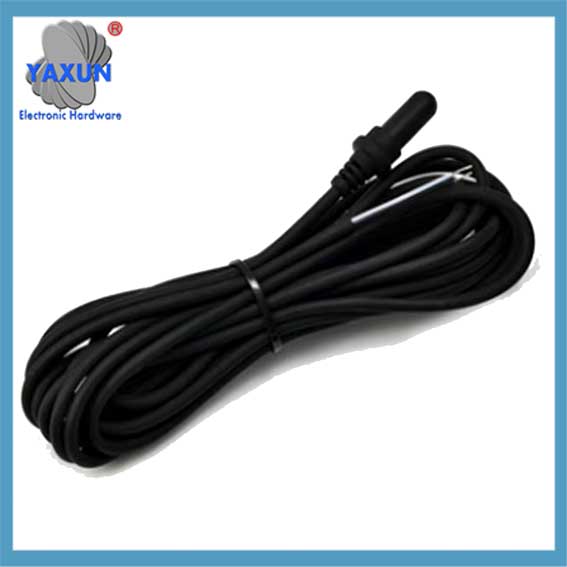

Main Features and Applications: Plug and Play: The sensor comes with a 3-meter dual-core cable with approximately 5mm of stripped wire at the end for easy connection to the controller.

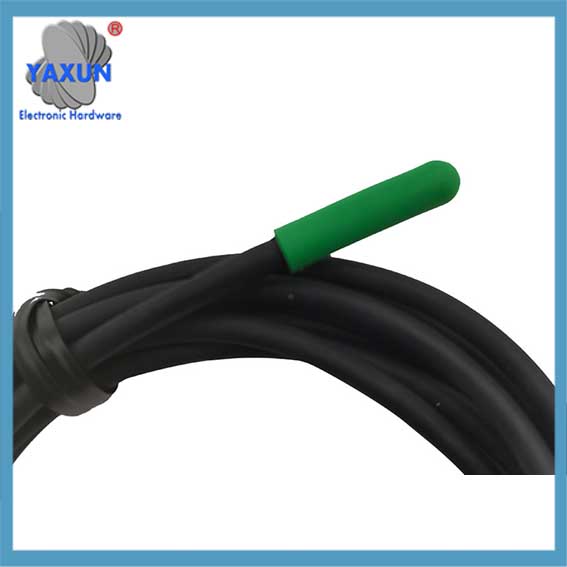

Materialul carcasei: The probe is typically fitted with a plastic (TPE) or silicone sheath, suitable for universal installation.

Aplicații tipice: Suitable for temperature monitoring in dryers, drying tunnels, heating fans, and various refrigeration equipment.
