Carel NTC060WH01 IP68 SENSOR NTC PT100 (Made in China)

The Carel NTC060WH01 is an NTC temperature sensor with a stainless steel probe, primarily used for liquid or gas temperature measurement in HVAC/R (Încălzire, Ventilation, Air Conditioning, and Refrigeration) systems.

Unlike the previously reviewed NTC030HF01 (clamp-type, suitable for measuring pipe surface temperature), this sensor features a stainless steel probe and long cable, designed for insertion-type installation.

Detailed specifications are as follows:

Parameter Items	Detailed Information
Marca	Carel (China OEM Manufacturer)
Tip de produs	NTC Temperature Probe (with Stainless Steel Probe)
Temperature Sensing Element	NTC (Negative Temperature Coefficient Thermistor), 10 kΩ @ 25°C；PT100，PT1000
Probe Material	Oţel inoxidabil
Probe Size	Diametru 6 mm × Length 50 mm
Domeniul de măsurare	-50 la +105 °C (Some data indicates -58 to +221°F)
Lungimea cablului	6 metri
Measuring Accuracy	±1%

Key Features and Applications

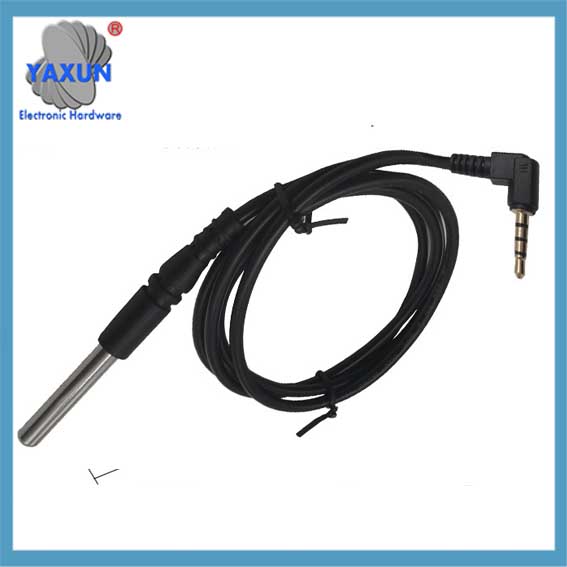

Stainless Steel Probe Design: The 6mm diameter, 50mm long metal probe is robust, durable, has good thermal conductivity, and is corrosion-resistant. This design makes it ideal for direct measurement of medium temperature by insertion into ducts, water tanks, liquid lines, or inside equipment, offering greater accuracy than clamp-type sensors in non-invasive measurement scenarios.

6-Cablu contor: The 6-meter cable provides significant installation flexibility, allowing the sensor probe to be placed remotely while the controller is installed in an easily accessible location.

IP68 high protection rating: This means the sensor can be completely and continuously submerged in water without damage. This makes it ideal for use in humid, condensation-prone, or environments with a risk of direct liquid contact.

Replacement Model Information: This model replaces the older models NTC060WH03, NTC060WH0S, and NTC060WP00. You can choose this model with confidence.

Selection and Comparison Recommendations:
When to choose NTC060WH01: When direct contact temperature measurement is required, such as inserting the probe into air ducts, liquid ducts, or inside equipment; when long-distance signal transmission is needed; or when the installation environment is very humid or may be immersed in liquid (IP68 characteristic).

When to choose NTC030HF01: When measuring the surface temperature of circular pipes such as refrigerant pipes and water pipes, and where it is undesirable to damage the pipes by making openings for installation (clamp-type installation is more convenient).
