PTC Thermistor for Air Heating

Usage Precautions
Use a hair dryer to remove heat to increase heating power. Wind speed significantly affects heating power. 一般的に言えば, the higher the wind speed, the greater the power. Without wind, the heater will not be damaged, but the power will drop significantly.

1) The power aging rate is within 10% after 1000 時間, and the resistance aging rate is within 50%.

2) Can be manufactured to customer specifications.

3) Available in both insulated and non-insulated configurations.

PTC Thermostatic Heater for Control Cabinet Dehumidification and Moisture Prevention

Suitable for heating and moisture prevention in electrical control cabinets, dehumidifying and moisture prevention in drying ovens, dehumidifiers, electric humidifiers, moisture prevention and heating for electrical instruments, モニター, 電気オーブン, 医療機器, 家庭用器具, small appliances, もっと.

技術的パラメータ

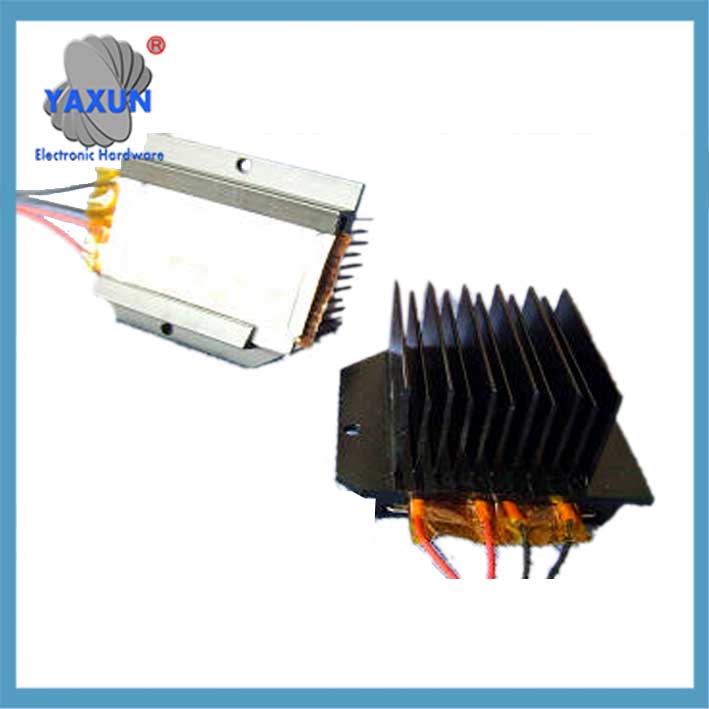

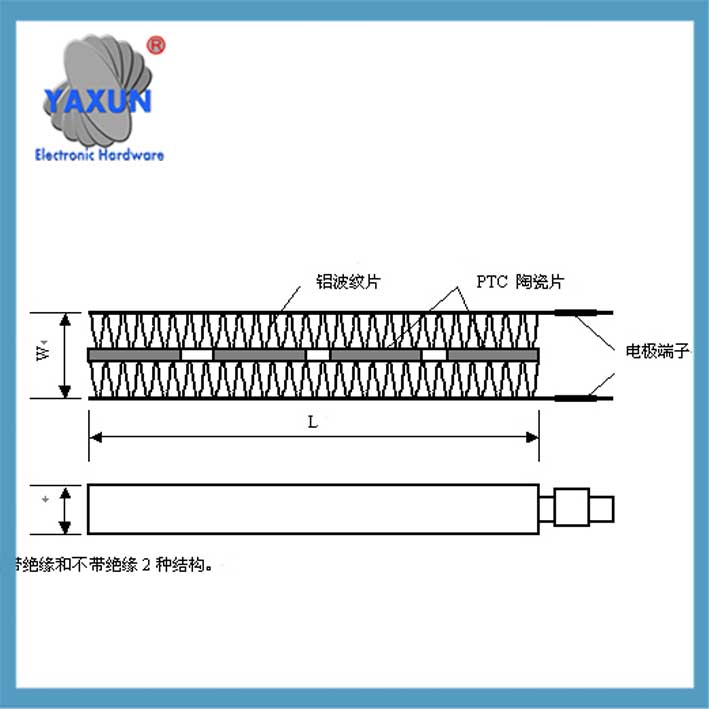

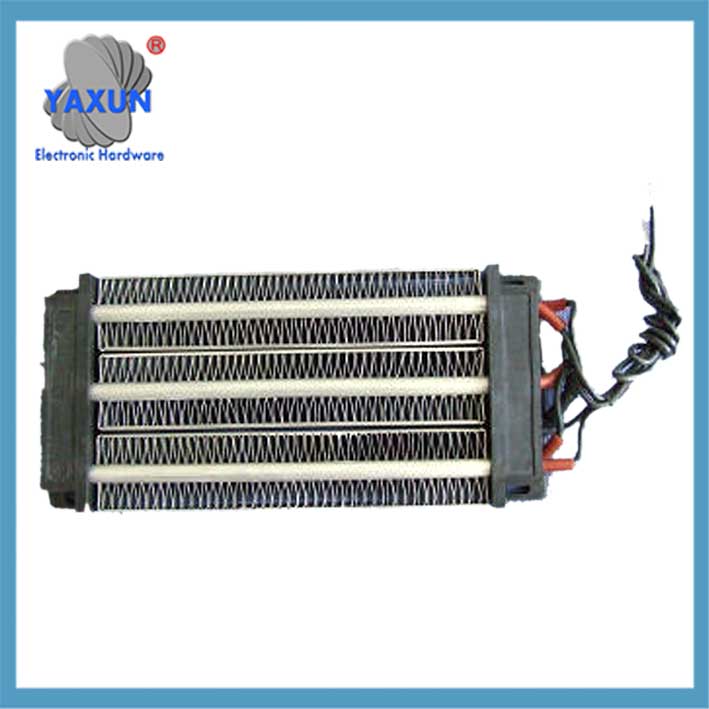

Appearance and structure of PTC thermistor for air heating

Custom sizes of PTC thermistors for air heating

Control cabinet (box) dehumidification and moisture-proof PTC constant temperature heater

Operating Voltage: DC/AC 12V, 24V and DC/AC 110V, 220V
Curie Temperature: 85°C to 220°C
Surface Temperature: 60°C to 190°C
Minimum Dimensions: 60×60×34mm
Maximum Dimensions: 155×85×24mm
定格電力: 30–200W

PTC Thermostatic Heater for Internal Insulation of Instrument and Equipment Chassis in Low-Temperature Environments

Suitable for maintaining a constant temperature in the chassis of equipment such as ticket machines, subway gates, and ATMs, preventing malfunctions of electronic components caused by low ambient temperatures.

技術的パラメータ
