Forkbolt auto fuses (also known as forkbolt fuses) are automotive fuses designed for high-current circuits. Their core parameters and characteristics are as follows:
SAYA. Core Parameters
‌Current Specifications‌

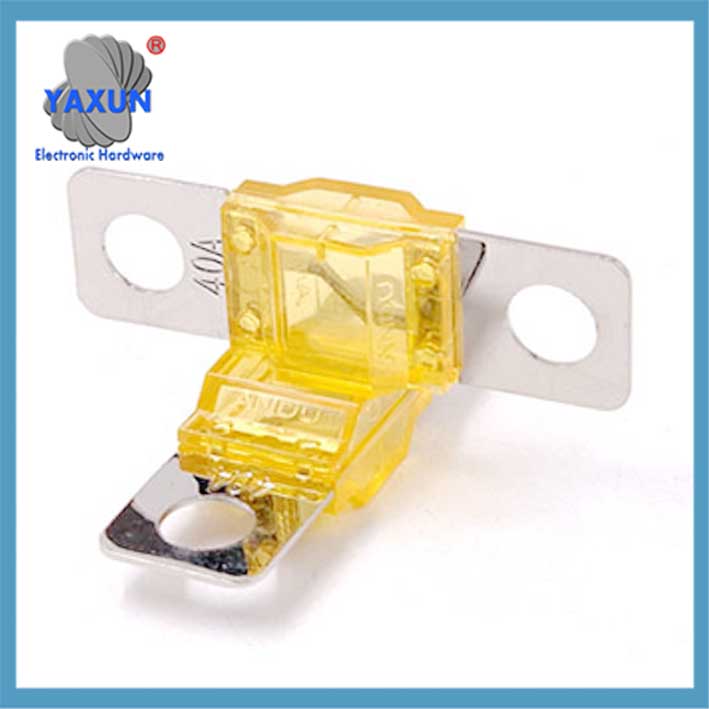

‌Small Forkbolt Type‌: 30A-150A (typical model ANS-B)
‌Large Forkbolt Type‌: 40A-800A (some models support 500A and above)
‌Voltage Rating‌
Compatible with 32V or 125V DC systems
‌Physical Dimensions‌
Typical dimensions of small size: 12×41×8.5mm (with D5.5mm mounting holes)

ANS Small Fork Bolt Car Fuse Kit- DC Forklift Modified 20A-200A for Car Truck Bus

Baut IKLAN, Alas datar ANM, dan Sekering Mobil Arus Tinggi Baut Garpu AML

ANL, JAWABAN, dan Sekring Mobil Baut Garpu Kecil ANM untuk Mobil, Truk, dan Bus dan Speaker

II. Structural Characteristics
‌Connection Method‌
Bolt-on fastening increases the contact area by 300% compared to blade-type fuses, reducing the risk of loose connections.
‌Karakteristik Penggabungan‌
Most fuses are slow-blow, capable of withstanding short-duration surges of up to 7 kali arus pengenal (such as those used for motor starting).
‌Material‌
Perumahan: PBT flame-retardant material
Conductor: Copper alloy with gold plating/zinc alloy, strong oxidation resistance

AKU AKU AKU. Typical Application Scenarios
Heavy-Duty Vehicles: Truck and Bus Starter Motors (over 300A)
Modified Circuits: High-Power Audio Systems, Inverters (100-200A)
New Energy Vehicles: High-Voltage Power Distribution Systems (125V/150A)

IV. Selection Considerations
Matching Principles
Must be compatible with the original vehicle fuse holder (misalnya, ANS-200/300).
Installation Requirements
Use a torque wrench to tighten the bolts (5-8 N·m recommended).
Replacement Risks
Misuse of blade-type fuses may result in poor contact and fire.

V. Examples of Mainstream Models

Catatan: When replacing, consult the vehicle maintenance manual first. Do not use fuses that exceed the specified fuse specification.
