PTC Thermistor for Air Heating
PTC Thermostatic Heater for Internal Insulation of Instrument and Equipment Chassis in Low-Temperature Environments
Usage Precautions
Use a hair dryer to remove heat to increase heating power. Wind speed significantly affects heating power. به طور کلی صحبت کردن, the higher the wind speed, the greater the power. Without wind, the heater will not be damaged, but the power will drop significantly.
1) The power aging rate is within 10% after 1000 hours, and the resistance aging rate is within 50%.
2) Can be manufactured to customer specifications.
3) Available in both insulated and non-insulated configurations.
PTC Thermostatic Heater for Control Cabinet Dehumidification and Moisture Prevention
Suitable for heating and moisture prevention in electrical control cabinets, dehumidifying and moisture prevention in drying ovens, dehumidifiers, electric humidifiers, moisture prevention and heating for electrical instruments, monitors, electric ovens, medical equipment, household appliances, small appliances, and more.
Technical Parameters

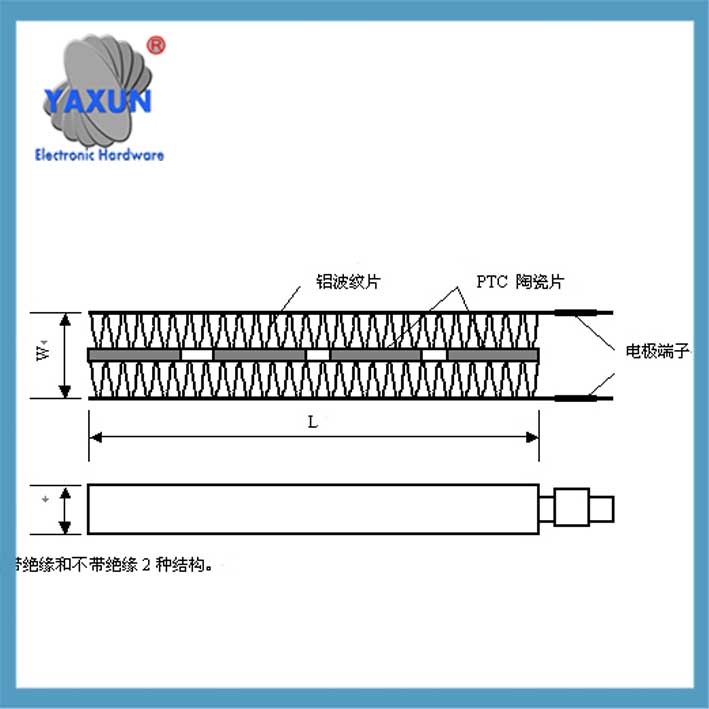

 Appearance and structure of PTC thermistor for air heating |
 Custom sizes of PTC thermistors for air heating |
 Control cabinet (box) dehumidification and moisture-proof PTC constant temperature heater |
| Model | L/mm | دبلیو/میلی متر | T/mm | Rated Voltage (حرفهای) | Surge Current (بوها) | Power (دبلیو) (5 m/s wind speed) |
| MZ9Q-L72W22T15V220W270 | 72 | 22 | 15 | 220 | < 3 | 270 |
| MZ9Q-L96W44T15V220W800 | 96 | 44 | 15 | 220 | < 7 | 800 |
| MZ9Q-L120W44T15V220W1000 | 120 | 44 | 15 | 220 | < 8 | 1000 |
| MZ9Q-L96W66T15V220W1200 | 96 | 66 | 15 | 220 | < 10 | 1200 |
| MZ9Q-L96W88T15V220W1500 | 96 | 88 | 15 | 220 | < 11 | 1500 |
| MZ9Q-L240W44T15V220W2000 | 240 | 44 | 15 | 220 | < 16 | 2000 |
| MZ9Q-L96W44T15V110W800 | 96 | 44 | 15 | 110 | < 14 | 800 |
| MZ9Q-L120W44T15V110W1000 | 120 | 44 | 15 | 110 | < 15 | 1000 |
| MZ9Q-L96W66T15V110W1200 | 96 | 66 | 15 | 110 | < 18 | 1200 |
| MZ9Q-L96W88T15V110W1500 | 96 | 88 | 15 | 110 | < 20 | 1500 |
| MZ9Q-L240W44T15V110W2000 | 240 | 44 | 15 | 110 | < 25 | 2000 |
| MZ9Q-L48W44T15V24W400 | 48 | 44 | 15 | 24 | 250 | 400 |
| MZ9Q-L96W44T15V24W800 | 96 | 44 | 15 | 24 | 250 | 800 |
| MZ9Q-L120W44T15V24W1000 | 120 | 44 | 15 | 24 | 250 | 1000 |
Operating Voltage: DC/AC 12V, 24V and DC/AC 110V, 220حرفهای
Curie Temperature: 85°C to 220°C
Surface Temperature: 60°C to 190°C
Minimum Dimensions: 60×60×34mm
Maximum Dimensions: 155×85×24mm
Rated Power: 30–200W
PTC Thermostatic Heater for Internal Insulation of Instrument and Equipment Chassis in Low-Temperature Environments
Suitable for maintaining a constant temperature in the chassis of equipment such as ticket machines, subway gates, and ATMs, preventing malfunctions of electronic components caused by low ambient temperatures.
Technical Parameters
| Model | Rated Voltage (حرفهای) | Power (دبلیو) | Dimensions (میلی متر) | Minimum Temperature Limit (درجه سانتیگراد) | Upper Temperature Limit (درجه سانتیگراد) |
| MZ9Q-96A2 | 110/220 | 250~400 | 135*120*42 | 3~5 ±3 | 24~28 ±5 |
| MZ9Q-96A3 | 110/220 | 600 | 142*125*80 | 5~8 ±5 | 24~28 ±5 |
| MA9Q-86A3 | 110/220 | 800 | 200*112*80 | 5~8 ±5 | 24~28 ±5 |
