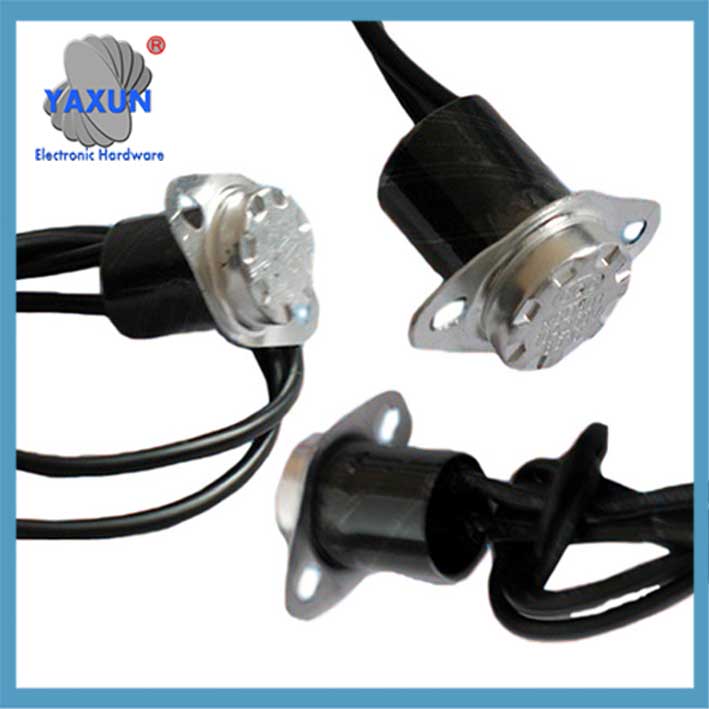

The Thermostat Switch KSD301 bimetallic disc operates in a Normally Open (NO) configuración. This means the circuit is initially open (desconectado) at normal temperatures. When the temperature rises to a predefined threshold, the bimetallic disc bends, closing the circuit and allowing current flow.

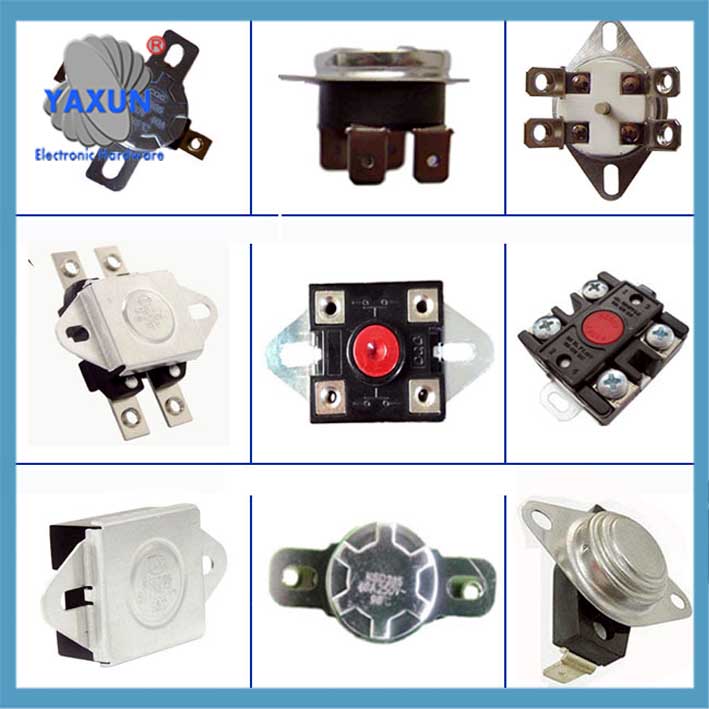

 Normally open THERM-O-DISC T-O-D THERMAL LIMIT SWITCH L160-40F 60TX01 |

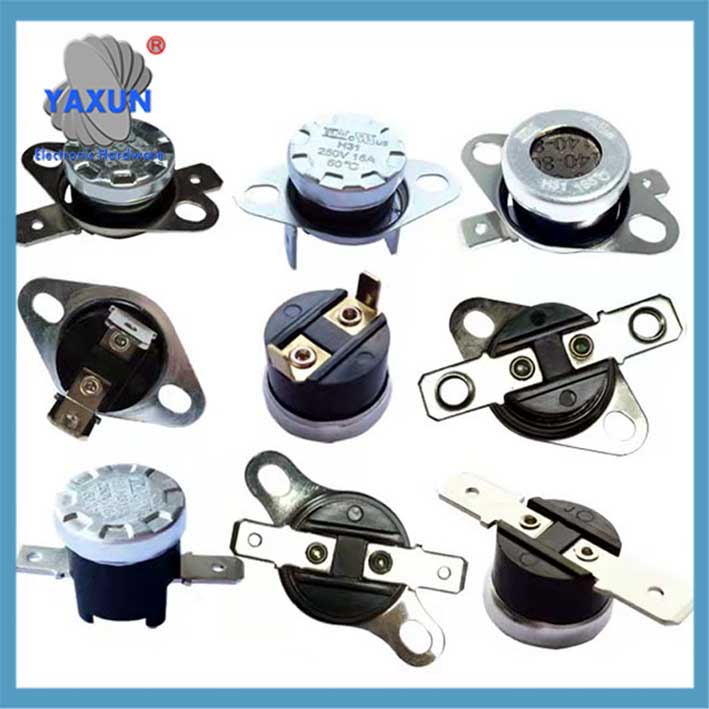

 UL/CUL KSD301 Shutoff Thermostat,Normally Open NO Bimetal Snap Disc 125V 16A Auto Reset |
 Uxcell KSD301 Termostato 40 ° C/104 ° F 10A Normalmente abierto N.O Ajuste el interruptor de temperatura del disco Snap |
I. Core Features
Operation Principle
When the temperature rises to the set value, the contact automatically connects the circuit; when the temperature drops to the reset value, the contact automatically disconnects the circuit, which is the opposite of the normally closed type (disconnected when the temperature rises and connected when the temperature drops).
The bimetallic strip is heated and deformed to trigger the mechanism to achieve fast switching.
Technical Parameters
Electrical Specifications:
Tensión nominal: CA 250 V (carga resistiva) or AC 125V (UL standard)
Corriente nominal: 5A/10A/15A (carga resistiva)
Temperature performance:
Action range: 0℃~300℃ (personalizable), accuracy ±2℃~±10℃17
Reset and action temperature difference: 8℃~100℃ (adjustable)
Mechanical characteristics:
Resistencia de contacto: ≤50mΩ, insulation resistance: ≥100MΩ13
Fuerza eléctrica: AC 1800V/1min without breakdown
Vida útil: ≥100,000 times17 (some models up to 150,000 times2)
Physical characteristics
Nivel de protección: IP00 (no dust and water resistance)
Método de cableado: terminal enchufable 250# o 187# (angle 0°~90° optional)
Método de instalación: supports various structures such as movable ring, flat ring, aluminum cover with holes, etc..
Normally Open State:
The KSD301 is designed to have its contacts in an open state when the surrounding temperature is below the specified operating temperature. This means the circuit connected to the KSD301 is broken, preventing current flow.
Temperature Trigger:
A medida que aumenta la temperatura, the bimetallic disc (made of two different metals bonded together) responds to the temperature change. The two metals expand at different rates, causing the disc to bend.
Circuit Closure:
When the temperature reaches the set point, the disc bends enough to close the circuit, establishing a connection between the contacts. This allows current to flow through the circuit.
Reinicio automático:
Once the temperature drops below a certain level, the bimetallic disc returns to its original shape, opening the circuit again and cutting off the current flow. This is an automatic reset feature.
In essence, the KSD301 is used as a thermal switch to control current flow based on temperature, acting as a temperature sensor and protector for various applications.
II. Escenarios de aplicación
Household appliances: dispensadores de agua, termo electrico, hornos microondas, gabinetes de desinfección, calentadores electricos, máquinas de café, etc..
Industrial equipment: motor overheat protection, rectifier equipment, maquinas laminadoras, car heated seats, etc.57.
III. Detection method (determine whether it is normally open)
Multimeter detection:
At room temperature (below the action temperature): the resistance of the two pins should be infinite (circuito abierto).
After heating (above the action temperature): the resistance value drops to tens of ohms (circuito abierto).
Marking distinction: The product body is usually marked with “NO” (Normalmente abierto) o “Normalmente abierto”.
IV. Product advantages
Velocidad de respuesta rápida, clean contact action without arcing57;
Precisión de control de alta temperatura, strong reliability7;
Compact structure, strong adaptability17.
⚠️ Note: The actual selection needs to confirm the specific temperature threshold (such as 85℃, 95℃, etc.) and the reset temperature difference. The parameters of different models may vary.
