El Carel NTC030HF01 es un sensor de temperatura NTC para HVAC/R (Calefacción, Ventilación, Aire acondicionado, y refrigeración) sistemas. Está fabricado en China por marcas como Siemens y Honeywell.. Consulte los dibujos y parámetros del NTC030HF01..

Simplemente poner, it’s a “sonda de temperatura” with a 3-meter cable. To help you quickly determine its suitability, I have summarized the core parameters as follows:

Main Features and Application Scenarios

Elementos de parámetros	Detailed Information
Marca	Carel
Tipo de producto	Passive NTC Temperature Sensor，(RTD) PT100, PT1000
Temperature Sensing Element	CNT (Negative Temperature Coefficient Thermistor), 10 kΩ @ 25°C, Valor beta 3435，PT100，PT1000
Rango de medición	-50 a +90 °C (some sources mention up to +105 °C in air)
Installation Method	Strap-on type for securing the sensor to the pipe surface
Longitud del cable	3 medidores (flat black cable)
Calificación de protección	IP67 (resistente al polvo y sumergible brevemente)
Conexión	Stripped ends, 2-core wire

The main feature of this sensor’s design is its clamp-on mounting design, making it ideal for measuring the temperature of the outer walls of pipes, such as refrigerant lines, tuberías de agua, or other pipes in HVAC systems.

Another advantage is its high IP67 protection rating, meaning it is effectively dustproof and waterproof, and can operate reliably in humid industrial environments, even those occasionally exposed to water.

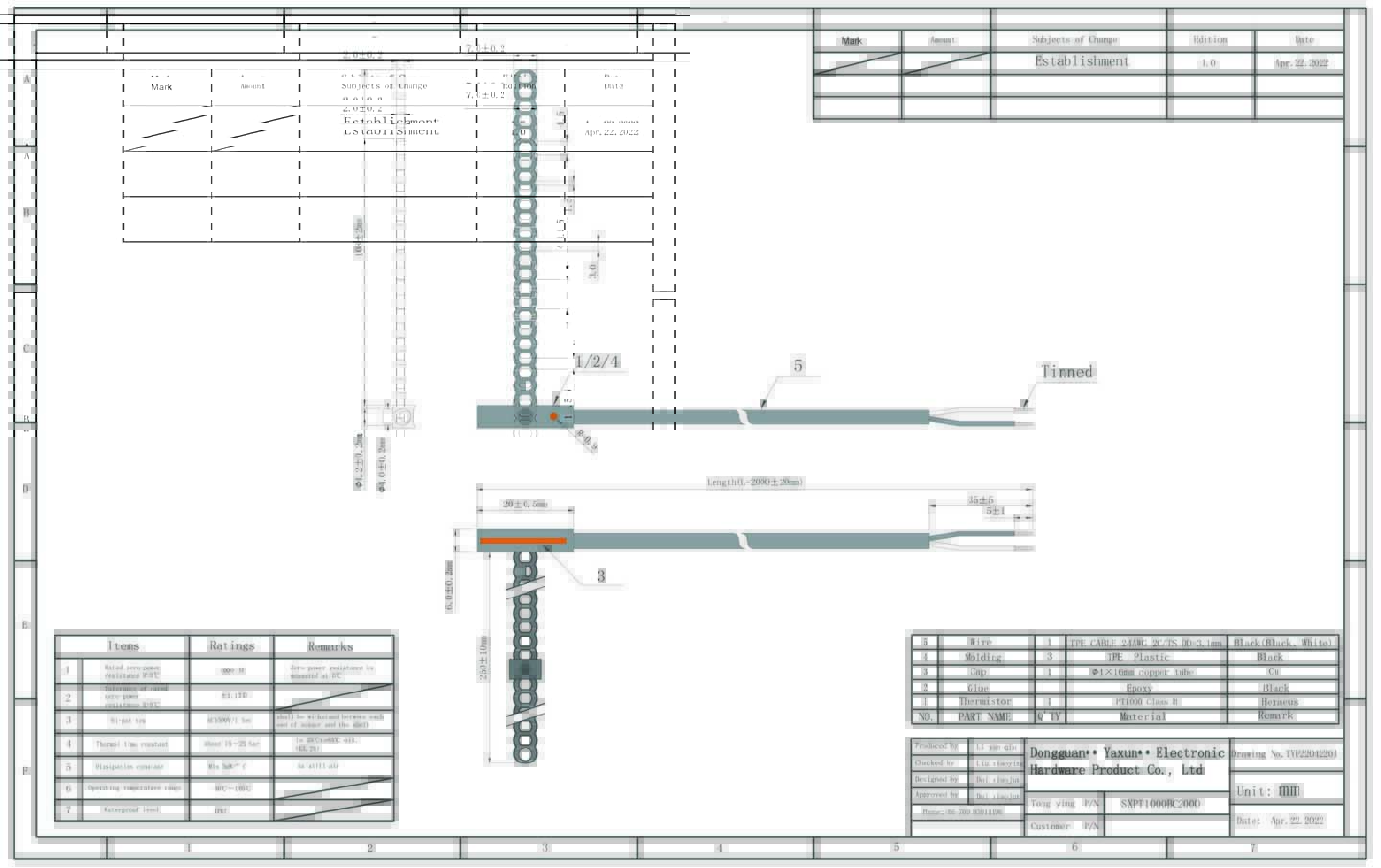

NTC030HF01 – Carel NTC SENSOR, PT100 Drawings

One important information discrepancy to note:

There is a misleading piece of information in the search results: some websites incorrectly describe “NTC030HF01” as a PLC (Programmable Logic Controller). This is clearly an information entry error, as at least eight sources from different distributors consistently confirm that it is an NTC temperature sensor. Por lo tanto, please refer to the sensor parameters in this reply when making references.

Recomendaciones de selección:

If you need to use it to upgrade or repair Carel equipment, you can simply replace it. If you want to use it with controllers from other brands (such as Siemens, mielwell, etc.), you can also do so, but you must ensure that the controller is compatible with the NTC 10k sensor; de lo contrario, the readings will be inaccurate. For pipe temperature measurement scenarios, the clamp-on design of this sensor is very convenient for installation; sin embargo, it is not the ideal choice for measuring air temperature.

If needed, I can guide you on how to test the quality of this sensor or help you find a compatible controller model.
