Einrastbare Sicherungshalter H3-55A für 250V 20A 6x30mm Sicherungen

Der Sicherungshalter bietet eine sichere und zuverlässige Trag- und Schutzabdeckung für die Sicherung. The fuse holder is divided into external and internal types. The external product cover is placed on the surface of the equipment, which is convenient for replacing the fuse. The internal type is easy to plug and play. China YAXUN Fuse and Fuse Holder, we’ve produced for 20 Jahre. Fuses holder are widely used in Electric vehicles, hybrid gasoline and fuel cell vehicle and its key parts (PACK/PDU/BDU/MSD/Electric/High pressure connector, usw.), EV charger/ EV charing pile system/Module, the power generation system, 5G communication power supply, the cloud server power supply, Energiespeicher, AGV (move to send unmanned vehicles), the scenic area tourist car, golf car, Security equipment, medizinische Ausrüstung, communication equipment, broadcasting equipment, Haushaltsgeräte, special equipment, Automatisierungsgeräte, healthcare, walking, equipment and construction machinery, the ground heating system, PV Solar combiner box, DC Voltage power supply control, industry machinery and equipment, and other areas of the DC high voltage application fields.

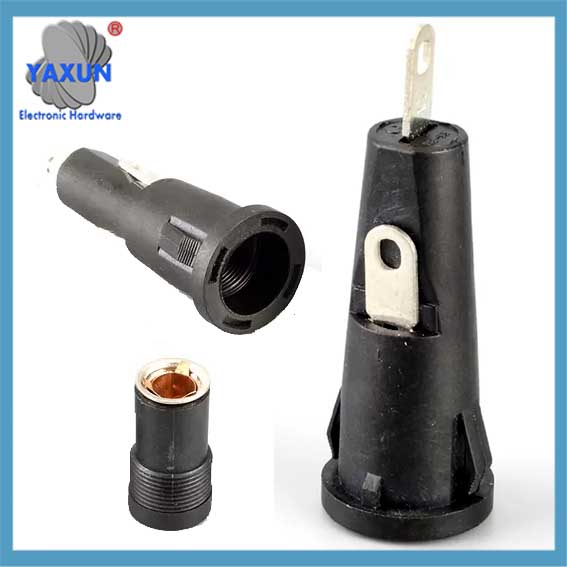

6*30mm-Sicherungshalter für die Schalttafelmontage

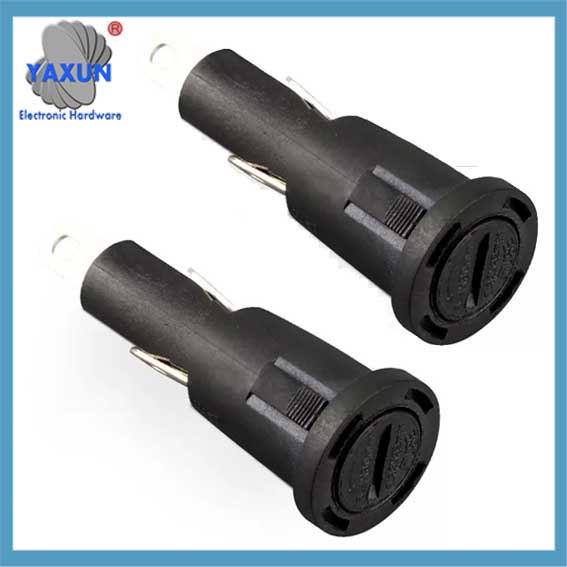

20 amp panel mount fuse holder,6x30mm,250v,H3-55A

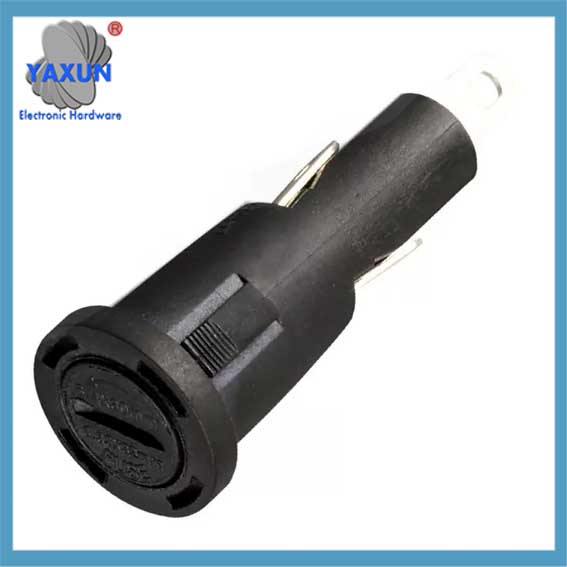

250V 20A-Sicherungshalter für Schalttafelmontage, H3-55A-Sicherungshalter, Schnappmontage

Produktbeschreibung

Produktbeschreibung

Kontaktwiderstand: <0.02Oh

Gegen Spannung: >AC3000V

LNSULATION -Resistenz: DC500V 100mΩ Min

Elektrisch: Rated at 20A 250V AC

Isolierkörper: PA66

Bajonettverschluss

Soldering type terminals

Produktmerkmale
Winzige Struktur
Einfache Installation
Durable material with good electrical capability
Nickel plated terminals for soldering

Drawing of H3-55A fuse holder 250V 20A
