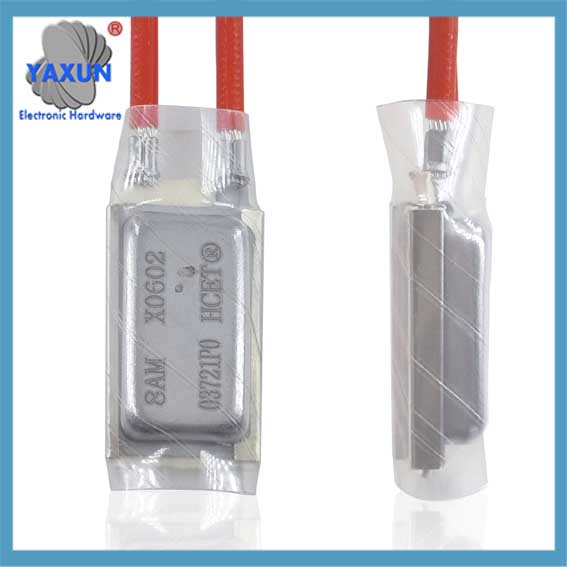

8AM Bimetall-Wärmeschutz & Motorüberlastschutz

Ein ” HC18 / 8Bimetall-Thermoschutz des AM-Motors” bezieht sich auf einen bestimmten Typ eines thermischen Überlastschutzes, typically manufactured by China YAXUN , designed to protect an oil pump motor from overheating by automatically cutting off power to the motor when its temperature reaches a critical level; Die “8BIN” designation signifies a particular model within YAXUN’s line of motor thermal protectors, often used in applications like automotive oil pumps, Motor, Tauchpumpen, Hochdruckreiniger, Ölpumpenmotoren, Große Wischermotoren, Waschmaschinen, Staubsauger, Vorschaltgeräte, transformers due to their compact size and fast response time.

Key points about an 8AM oil pump motor thermal protector:
Funktion:
HC18 / 8AM series bimetall protector is an overheat protection element that has both overtemperature protection and precise control of current overload. It can effectively prevent Damage caused by excessive current and high temperature to high-power motors, Transformer, usw.

[Temperatur]: 80℃ -180 ℃

[Merkmale]: Large electrical capacity, long life and high reliability; Very precise tripping time to prevent motor overheating; has dual functions of induction current and temperature
When the motor gets too hot, the thermal protector’s internal bimetallic disc bends, breaking the electrical circuit and temporarily stopping the motor to prevent damage from excessive heat.

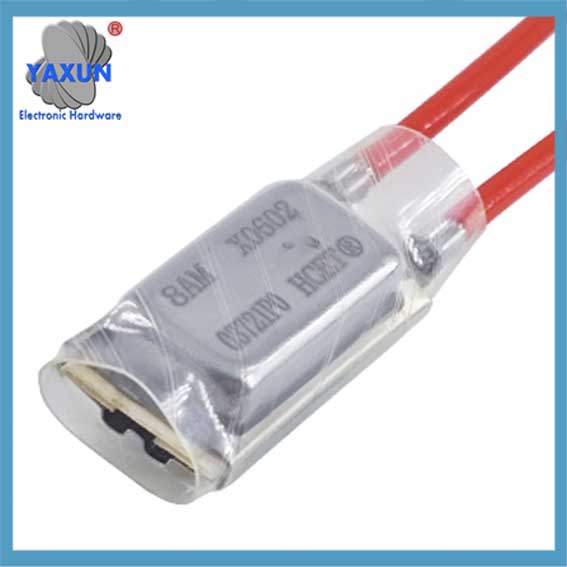

8Bimetall-Schutzschalter der AM-Serie

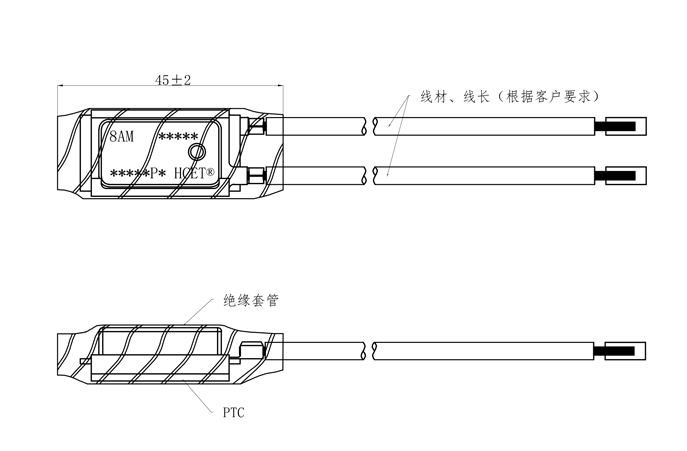

8AM series bimetall protector switch installation dimensions

Vorteile:
Overheat protection: Prevents motor burnout by automatically tripping when temperature exceeds a preset limit.
Reliable reset: Most 8AM protectors are manually resettable, allowing the motor to restart once the temperature cools down.
Kompakte Größe: Suitable for tight spaces within an oil pump motor assembly.

1. Kleine Größe, suitable for installation requirements of micro motors;
2. Bieten Sie den zuverlässigsten Sicherheitsschutz, wenn der Motor blockiert ist;
3. The combination of bimetallic strip and heating wire has fast tripping;
4. Very accurate tripping time to prevent the motor from overheating;
5. Possessing the dual performance of induction current and temperature;
6. Each part strictly implements the European ROHS environmental protection standards;
7. Es gibt viele Arten von Terminals zur flexiblen Auswahl;
8. Specific specifications or riveting services can be made according to customer requirements.

Elektrische Spezifikationen: 25AMPS/15 Volt DC; 15AMPS/30 Volt DC;

technische Parameter
Using temperature range: 50℃- 180℃, Jede Temperatur innerhalb des Bereichs kann je nach Kundenwunsch bereitgestellt werden;
Temperaturtoleranz: ±5℃, ±8℃;
Select control overload current trip range: 1~25A;
Trip time: 4~ 10s;

Anwendungsbereich:
Elektrowerkzeuge, Mixer; Tauchpumpen; Hochdruckreiniger; Ölpumpenmotoren; Große Wischermotoren; Waschmaschinen; Staubsauger; Vorschaltgeräte; Transformer.
