PTC термистори за течно отопление

PTC термисторите за течно отопление са особено подходящи за продукти от висок клас, изискващи висока безопасност и дълъг живот. PTC предлагат отлична производителност като течни изолационни компоненти. В сравнение с конвенционалните електрически нагреватели, PTC термисторите за течно отопление елиминират необходимостта от система за контрол на температурата и също така са рентабилни.
The heating power of a PTC thermistor for liquid heating varies depending on the operating conditions. To maximize the PTC’s heat dissipation power, the heated liquid should have good circulation or convection. The power density (heating power/water contact area) of a submersible heater is approximately 6W/cm² (at a water temperature of 25°C). The power density (heating power/water contact area) of a fluid heater is approximately 4-10W/cm² (at a water temperature of 25°C). Higher water temperatures reduce heating power.
The higher the dry-burning temperature of a PTC liquid thermostat heater, the greater the heating power it generates. To achieve a relatively low-cost solution, PTC liquid thermostat heaters are generally designed for a dry-burning temperature of 220-280°C. If the dry-burn temperature is required to be lowered, the volume or number of PTC liquid thermostat heaters must be increased accordingly to achieve equivalent power.

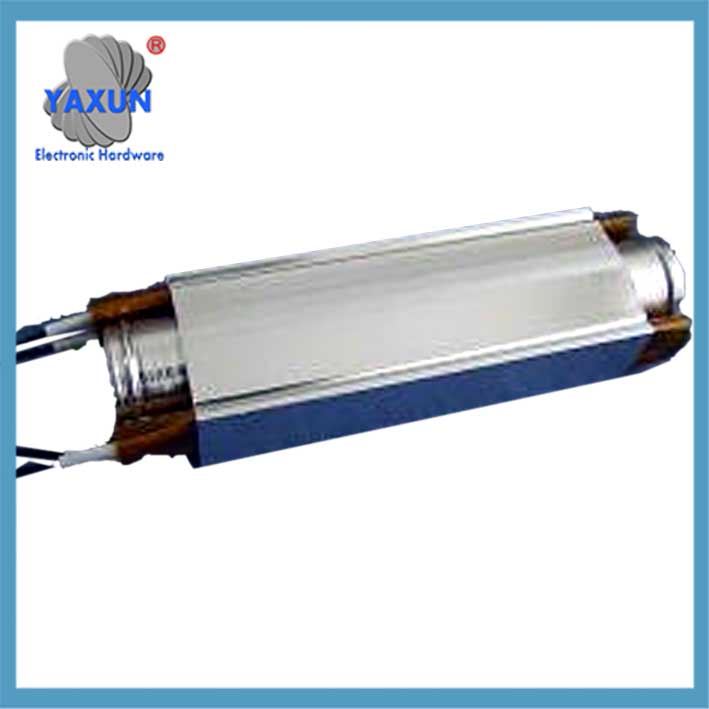

Submersible Liquid Heater PTC Appearance and Structure

Advantages of PTC instant liquid electric heater

PTC Application Design for Fluid Liquid Heaters

Проектиране на приложение на PTC потопяем нагревател за течности

Проектиране на приложение на PTC потопяем нагревател за течности

This submersible liquid heater is inserted into a liquid container to heat the liquid to a constant temperature. Using a PTC element as the heat source, it offers fast heating, constant temperature heating, self-adjusting power, висока ефективност на преобразуване на топлина, strong anti-scaling properties, and resistance to damage even in dry-burn conditions. It is widely used in various electric heating appliances in the home appliance industry.

Submersible PTC Liquid Heater Technical Specifications

Работно напрежение: 12-240V
Издържано напрежение на изолацията: >3750V, through special insulation treatment, safe and reliable
Температура на повърхността: 100-250°C
Номинална мощност: 50-500W
Power Density: (Heating Power/Water Contact Area) Approximately 6W/cm² (at 25°C)

Single-Sided PTC Heating (Inner Hole Diameter 13mm)
Double-Sided PTC Heating (Inner Hole Diameter 20mm)

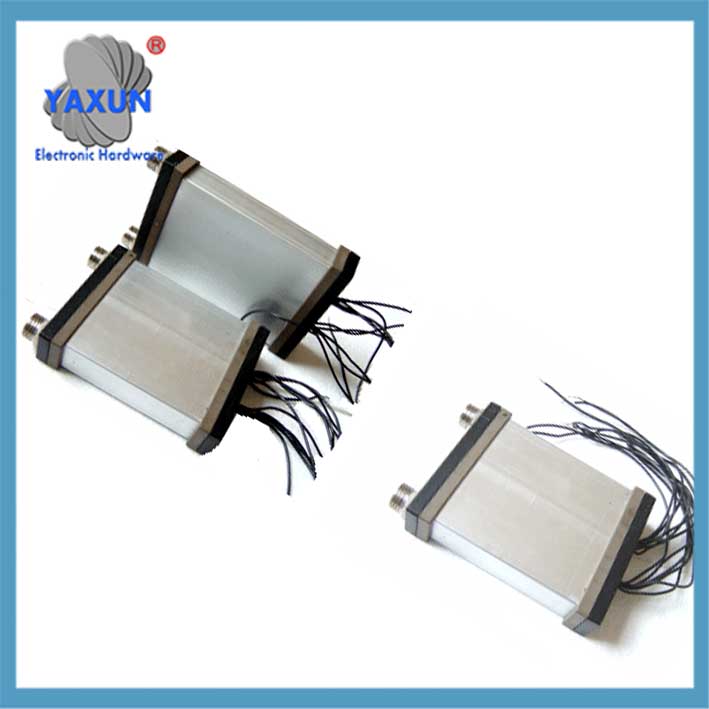

Instantaneous PTC Liquid Heating Heater External Structure
Advantages of Instantaneous PTC Liquid Heating Heaters

1. High Safety Factor Due to Water-Electricity Separation: When the heating element is unloaded or the temperature control fails, the PTC resistance rapidly increases until the power drops to less than 100W, eliminating the risk of dry heating.
2. Rapid Heating: Instantly heats, with hot water available within 10 секунди. This eliminates heat waste and conserves energy. 3. Compact size and light weight make it suitable for developing ultra-thin electric water heaters, keeping pace with the trend.
4. No open flame, no scaling, and long life.
5. Strong voltage adaptability: The PTC fully adapts to voltage fluctuations within 25% of the rated voltage, without affecting power.

Main parameters of the instantaneous small kitchen heater heating tank

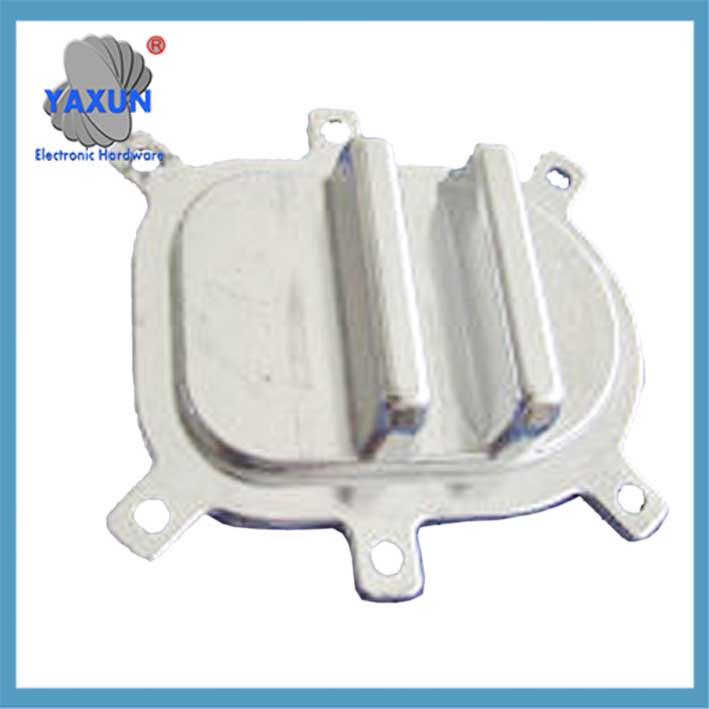

Main parameters of the heating tank of instant electric water heater
