There is quite a lot of information about 5*20 fast-acting and slow-acting axial Fuse with Lead. This is a cylindrical glass or ceramic tubular fuse with a diameter of 5mm and a length of 20mm: the rated current ranges from 0.1A to 30A, and the rated voltage is commonly 250V/125V.

Note that the user may be an electronic engineer or maintenance personnel, and needs to distinguish between fast and slow-acting types. The letter identification rule in the product model: F stands for fast-acting and T stands for slow-acting. على سبيل المثال, F1A250V is a fast-acting type with a rated current of 1A. This information is crucial for correct selection, especially the slow-acting type is suitable for motor loads.

In terms of safety certification, this type of fuse usually has CCC, UL and other certifications. Users need to pay special attention if they are designing export products. There are two main forms of installation: with lead pins and fuse holders. Outdoor waterproof types require special waterproof fuse holders.

Price factors cannot be ignored. When purchasing in bulk, the price of a single piece may be as low as $0.02, but fuse holders with waterproof functions will be more expensive. If the user is purchasing in bulk, this information may be important.

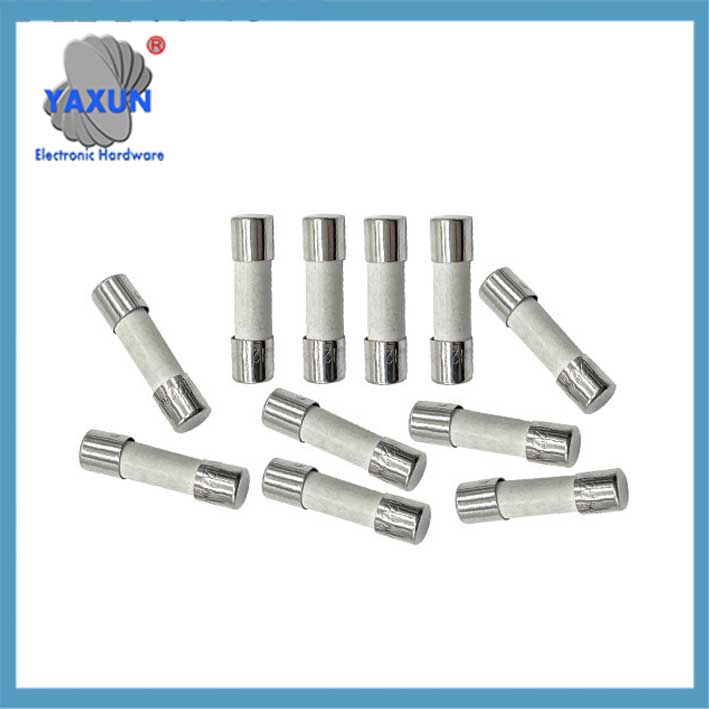

ليتيلفيوز فيوز 0314.250 5x20MM Common Model Fast-Acting Ceramic Fuse Tube

Littelfuse Littelfuse Glass Fuse Tube 0313004.MXP 6x30mm 3AG Tubular Fuse

ليتيلفيوز فيوز 0477.500 500فيوز أنبوب سيراميك صغير عالي الجهد V 5X20

The following is a summary of the core information about ‌5×20mm fuses‌, including specifications, أنواع, selection points and application scenarios:
🔧 ‌I. Basic specifications‌

الثاني. Distinguishing between fast-break and slow-break types‌

‌💡 ‌Example model‌:
Fast-break: F1A250V 5×20 (1A/250V fast-break)
Slow-break: T3.15A250V 5×20 (3.15A/250V slow-break)

20فيوز سيراميك سريع المفعول 5 مم × 20 مم

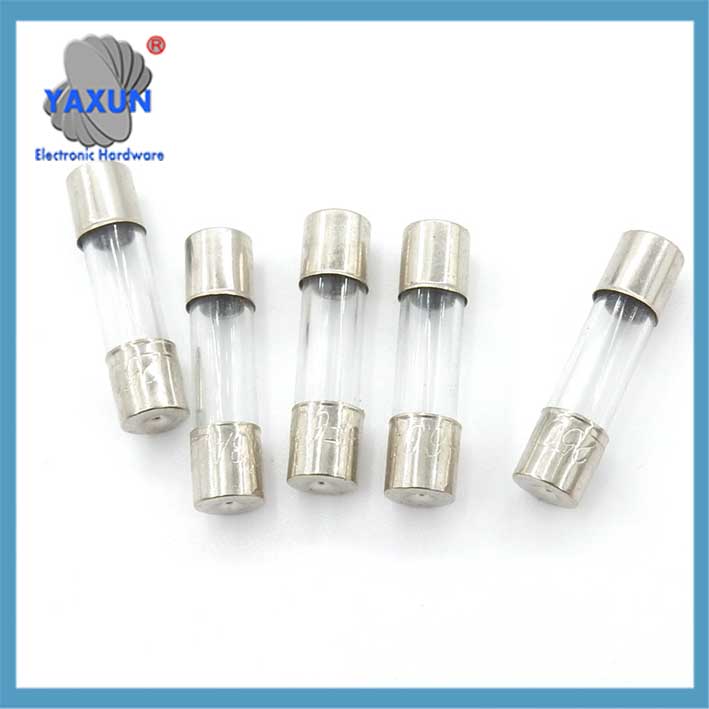

T0.5A~30A L250V 5x20mm 0.5A 250V Slow Blow Fuse Glass Slow-Acting Time

Glass Fuses 0.5 ~30Amperes 20 Mm X 5 Mm For 12 To 250VOLTS

⚠️ ‌III. Key points for selection‌

‌المطابقة الحالية‌:
Rated current ≥ circuit maximum operating current × ‌1.5–2 times‌ (surge compatible);
Motor loads must be slow-break type (ت) to avoid false fuses during startup.
‌Voltage matching‌:
The rated voltage of the fuse must be ‌≥ the maximum voltage of the circuit‌.
‌Certification mark‌:
Safety certifications such as ‌CCC, أول, and VDE‌ must be passed (product labeling or packaging instructions).

🔌 ‌IV. installation and accessories‌
‌Pin type‌:
Pin with lead (direct welding)
No lead (need to be used with fuse holder)
‌Fuse holder‌:
Waterproof type (مثل H3-520E, suitable for outdoor equipment)
Standard socket type (such as ST 4-HESI, industrial terminal block)

💎V. brand and price reference‌

⚠️ ‌Risk of wrong replacement‌:
‌Disable fast break to replace slow break‌ (such as motor circuit), otherwise the startup surge will cause the fuse to blow;
When replacing, the current, voltage and fuse type must be strictly matched.
