PTC Thermistor for Air Heating

使用预防措施
Use a hair dryer to remove heat to increase heating power. Wind speed significantly affects heating power. 一般来说, the higher the wind speed, the greater the power. Without wind, the heater will not be damaged, but the power will drop significantly.

1) The power aging rate is within 10% 后 1000 小时, and the resistance aging rate is within 50%.

2) Can be manufactured to customer specifications.

3) Available in both insulated and non-insulated configurations.

PTC Thermostatic Heater for Control Cabinet Dehumidification and Moisture Prevention

Suitable for heating and moisture prevention in electrical control cabinets, dehumidifying and moisture prevention in drying ovens, dehumidifiers, 电加湿器, moisture prevention and heating for electrical instruments, 监视器, 电烤箱, 医疗设备, 家用设备, 小型电器, 还有更多.

技术参数

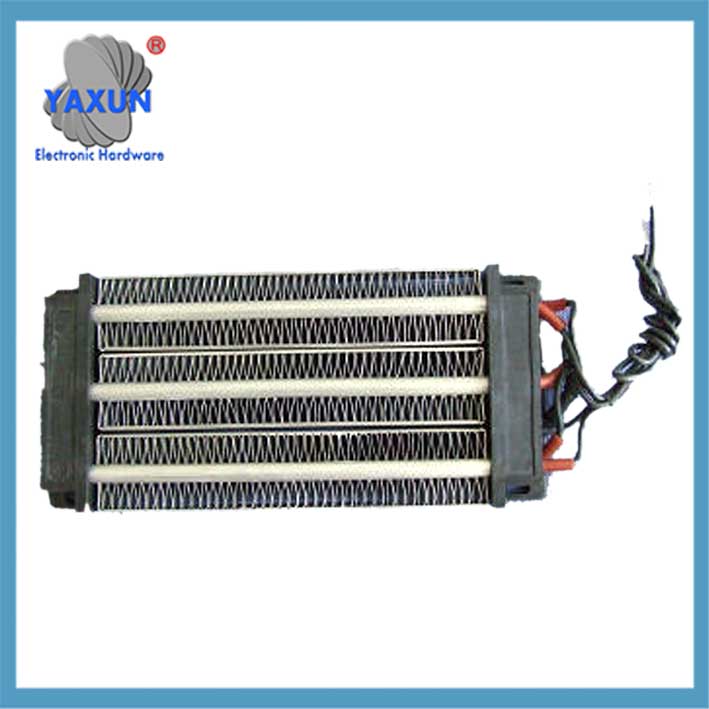

Appearance and structure of PTC thermistor for air heating

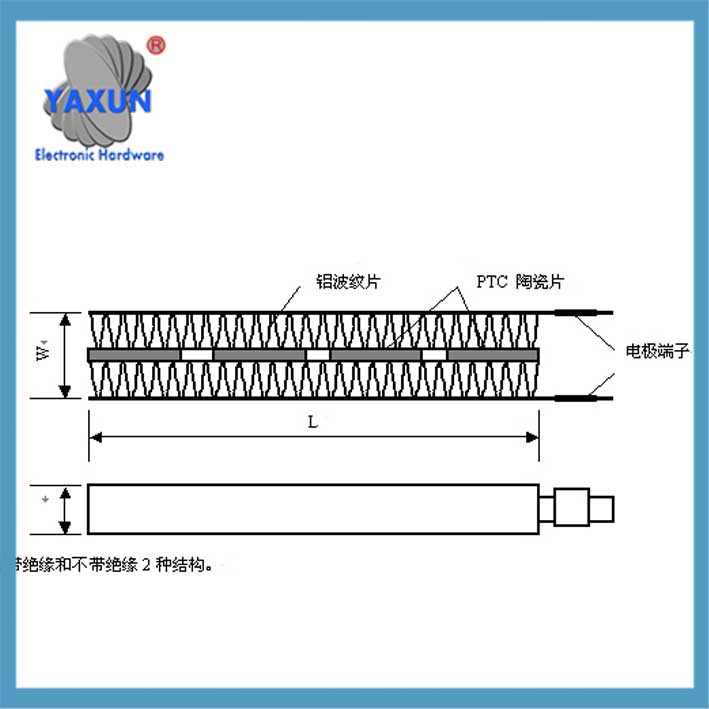

Custom sizes of PTC thermistors for air heating

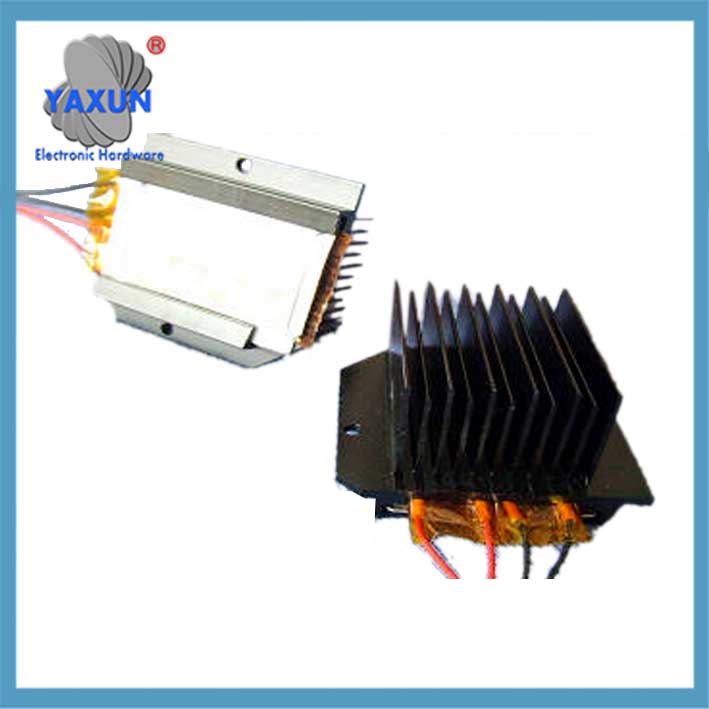

Control cabinet (box) dehumidification and moisture-proof PTC constant temperature heater

工作电压: DC/AC 12V, 24V and DC/AC 110V, 220V
Curie Temperature: 85°C to 220°C
表面温度: 60°C to 190°C
Minimum Dimensions: 60×60×34mm
Maximum Dimensions: 155×85×24mm
额定功率: 30–200W

PTC Thermostatic Heater for Internal Insulation of Instrument and Equipment Chassis in Low-Temperature Environments

Suitable for maintaining a constant temperature in the chassis of equipment such as ticket machines, subway gates, and ATMs, preventing malfunctions of electronic components caused by low ambient temperatures.

技术参数
