Single-ended Glass-Sealed NTC Thermistor MF51 Supplier

Single-ended glass-sealed NTC thermistor is a high-reliability temperature sensor encapsulated by glass sealing technology, designed for high temperature, high humidity and fast response scenarios. Its core features and applications are as follows:

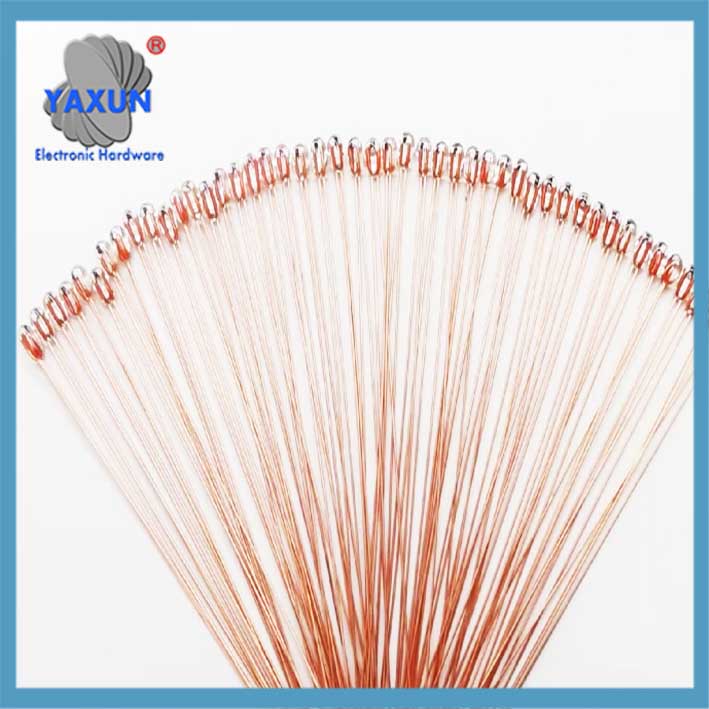

Single-ended NTC Thermistor Glass Encapsulated Series Free Sample Offer

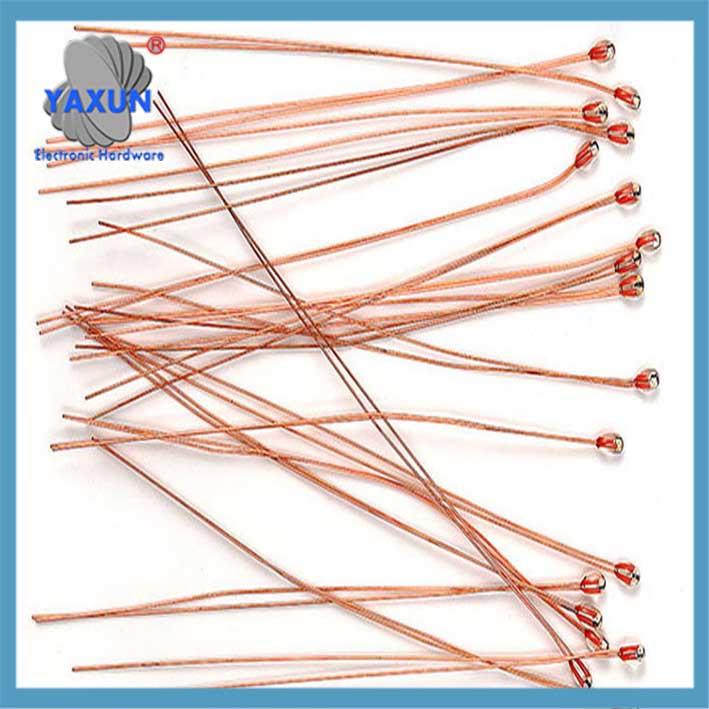

NTC/CTN 10K GT103J1K Radial Glass Sealed NTC Thermistor MF57 Series

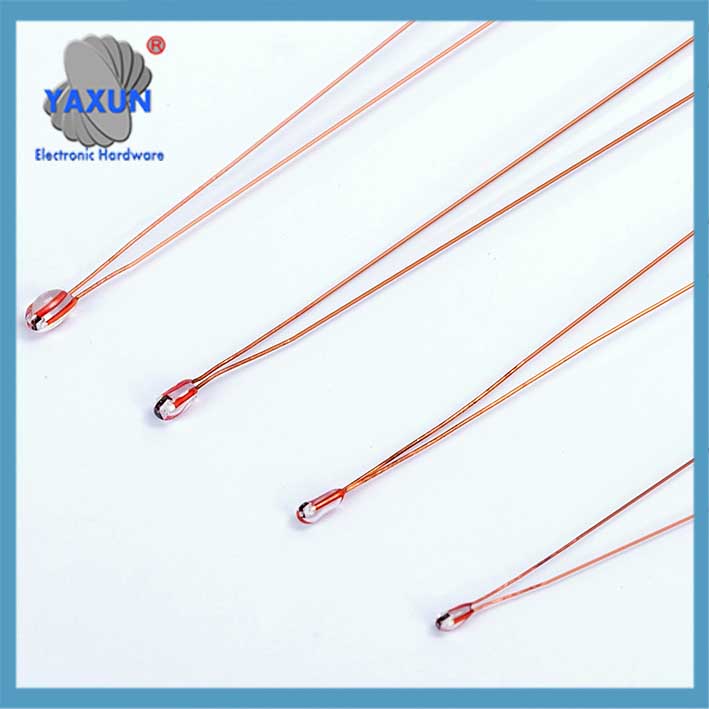

Glass Sealed Mf51 Ntc Thermistor High Temperature Fast Response 5k 10k 50k 100k

1. Core features and advantages
‌High temperature resistance‌
The upper limit of the operating temperature is ‌350℃‌ (gold electrode model), ordinary epoxy resin encapsulation only supports 120℃, and glass encapsulation effectively isolates high-temperature oxidation and chemical corrosion.
The airtight structure prevents moisture penetration and is suitable for high temperature and high humidity environments such as microwave ovens and industrial ovens.

‌Fast response capability‌
The thermal time constant is ≤6.5 seconds (in static air), and the micro-droplet-shaped encapsulation (diameter 1.5~3mm) reduces the heat capacity and realizes millisecond-level dynamic temperature measurement.

‌High precision and stability‌
The photolithography process ensures resistance accuracy of ±1%, B value range of 3380K~4100K, and the nominal resistance at 25℃ covers 3K~200KΩ48.
The glass material is aging-resistant, and the resistance drift rate is <0.5%/year for long-term use.

2. Key parameter selection guide

Model selection example:
MF51: general purpose, Ø2.5mm, 快速响应, 低成本;
GT series (Aisheng): gold electrode, resistant to 350℃, special for automobile/industrial use.

3. Typical application scenarios
High temperature industrial equipment
Microwave oven/oven temperature monitoring: withstand >200℃ cavity temperature;
Laser diode heat dissipation: fast response to prevent overheating damage.
Automotive electronics
Engine oil temperature/water temperature monitoring: glass seal is resistant to vibration and oil corrosion.
医疗设备
Electronic thermometer: millisecond response improves measurement efficiency.
Home appliance control
Coffee machine/electric kettle: precise temperature control to prevent dry burning.

4. Selection considerations
Environmental matching
Gold electrode glass seal (such as GT series) is preferred for >150℃, and the airtightness level needs to be confirmed in humid environments.
‌Response speed optimization‌
Reducing the package size (such as Ø1.5mm) can shorten the thermal time constant to milliseconds.
‌Cost control‌
For ordinary high temperature scenarios, choose MF51 (unit price $0.1~0.03), and for ultra-high temperature, choose the gold electrode model.
