PTC Thermistors for Constant Temperature Heating

產品概述
The constant temperature heating characteristics of PTC thermistors for constant temperature heating are determined by the material properties. The principle is that when power is applied to the PTC thermistor, self-heating causes the component’s temperature to rise, causing the resistance value to enter the transition region and the current to drop rapidly. Consequently, the surface temperature of the PTC thermistor remains constant. 該溫度僅取決於PTC Thermistor的Curie溫度和施加的電壓, 並且主要與環境溫度無關.

PTC constant temperature heaters are heating devices designed to utilize the constant temperature heating characteristics of PTC thermistors. 低- 和中型加熱應用, PTC heaters offer advantages over traditional heating elements, such as constant temperature heating, no open flames, 高熱轉化效率, 電源電壓最小的影響, 和壽命很長. 它們在電氣加熱設備中的使用越來越受到R的青睞&D工程師.

PTC thermistors for constant temperature heating can be manufactured in a variety of shapes and specifications. 常見形狀包括光盤, 矩形, 條, 戒指, and honeycomb pores. Combining the above-mentioned PTC heating elements with metal components can create various high-power PTC heaters.

應用設計
利用PTC熱敏電阻的恆溫加熱原理, these devices can be designed for applications such as hair straighteners, 髮夾, 髮夾, 珀姆斯, 珀姆斯, 陶瓷卷, 發鉗, 捲曲鐵, 電梳, 負離子捲髮器, 按摩器, 蚊子驅蟲劑, 蚊子驅蟲劑, 蚊子線圈分配器, 香水分配器, 香水分配器, 熱融化膠槍, heated foot baths, 層壓機, 熱水瓶杯, water boilers, 咖啡機, 咖啡溫暖的人, 咖啡加熱器, 飲水機, 冷水分配器, 牛奶加熱器, 熱水器, shower heaters, 電蚊子驅蟲劑, 加熱器, 烘乾機, 電熱板, 電熨斗, 電力焊接, electric thermal adhesives, 捲曲鐵, 淋浴, fan heaters, drying rooms, 電暖器, 電暖器, air conditioning systems, air conditioning heating systems, space heaters, air heating systems, hot water kettles, Shoe dryers, shoe drying devices, 腳步器, 電加熱板, 頻譜分析儀, 光譜療法, 物理治療設備, 紅外加熱, 乾衣機, 摩托車化油器, 電加濕器, moisture-proof heating for electrical instruments, small crystal device constant temperature baths, constant temperature incubators, 電子熱水瓶瓶, 絕緣盒, 絕緣杯, 絕緣托盤, 絕緣櫃, insulated tables, 電加熱板, thermal therapy devices, hot coffee machines, steam beauty treatments, 蠟融化, 蒸汽發生器, 加濕器, 加濕器, 巧克力擠出機, hot packs, 電力焊接, acupuncture, 尿導管, 腳步器, 乾燥機, 棉花糖機, 按摩器, liquefied gas cylinder heating, 小型暖空氣加熱器, 吹風機, room heaters, 烘乾機, dry cabinets, 乾衣機, industrial drying equipment, Electric dust collector hopper heater, train locomotive electric heater, mold heating, control cabinet heating moisture-proof, monitor moisture-proof, 電烤箱, electric toaster, infusion box, 醫療設備, 家用電器, daily appliances, 小型電器…ETC.

PTC heater Chinese manufacturer

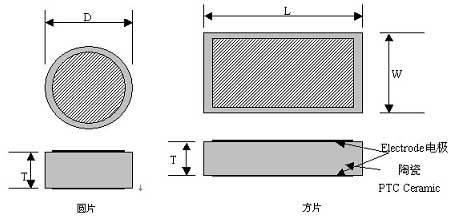

The structure and size of PTC heating plate

Model Parameters

Ring Temperature Resistance 25℃/h	表面溫度 /℃	最大電壓 /V	直徑 D/mm	長度 L/mm	寬度 W/mm	厚度 T/mm
500~1500	50	270	8			3
300~800	85	140		16	11	2.5
150~400	90	140		16	11	2.5
600~1500	100	270	20			2.5
500~1500	110	270		16	11	2.2
500~1500	130	270	20			2.2
200~800	150	140	10.8			2.2
200~800	155	270	10.8			2.2
500~1500	155	270	10.8			2.2
1.5~5K	170	140		5	4	1.6
150~500	175	140	10.8			2.2
500~1500	180	270	10.8			2.2
200~800	185	270	10.8			2.2
1~3K	195	270	8			2.5
800~2K	230	270		19	12	2.2
800~2K	250	270	13			2.5
2~5K	250	270	20			2.5
300~1K	250	140		23.5	10	2.2
800~2K	255	270		23.5	10	2.2
500~2K	275	270		35	10	2.1
300~800	280	140		24	15	2.5
0.8~3.5K	280	270		24	15	2.5

Usage Notes
1) PTC加熱器具有自動恆溫控制, 消除對溫度控制系統的需求. 它是所有PTC加熱器的核心組成部分.
2) 有四種電極類型可用: 電鎳 + 銀, 融化的鋁, 印刷鋁 + 銀, 和印刷鋁.
3) The operating voltage range is very wide. Even with a 2x increase in operating voltage, the surface temperature changes minimally.
4) 當多個PTC加熱器一起使用時, 他們應該並行連接, 不串聯.
5) 該產品沒有導線或絕緣材料. 如果這不可行, please select a model with an external insulation film or a metal housing.

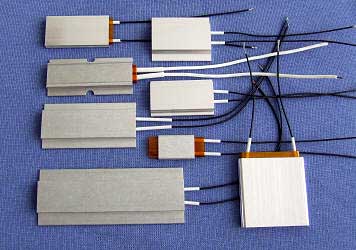

Metal shell PTC heater

Dimensions and structure of metal shell PTC heater

Dimensions and Structure of Externally Insulated Film PTC Heaters

Model Parameters

Length/mm	Width/mm	Thickness/mm	Surface Temperature/℃	Insulation Withstand Voltage/V	Operating Voltage/V
30~120	20	5.0	60~280	3750	100~240
30~120	30	6.0	60~280	3750	100~240
30~120	33	7.0	60~280	3750	100~240
30~120	35	7.0	60~280	3750	100~240
30~120	40	7.0	60~280	3750	100~240
30~120	43	7.0	60~280	3750	100~240
30~120	46	7.0	60~280	3750	100~240
30~120	56	7.0	60~280	3750	100~240

Temperatures can be designed between 60°C and 280°C, and operating voltages can be designed between 12V and 240V, 取決於客戶要求.

Usage Precautions
1) After power is applied, the heating power decreases gradually and then stabilizes. 穩定的功率取決於操作條件. The power of the same PTC heater can vary several times depending on operating conditions. 散熱速度越快, 穩定力量越大; PTC表面溫度越高, 力量越高.
2) PTC加熱器的表面溫度由PTC本身控制，可以通過斷開電路來控制, but not by adjusting the voltage.
3) While PTCs are inherently highly reliable and have a long lifespan, improper assembly can result in unstable power and temperature.
4) 使用多個PTC時, 他們應該並行連接, 不串聯.

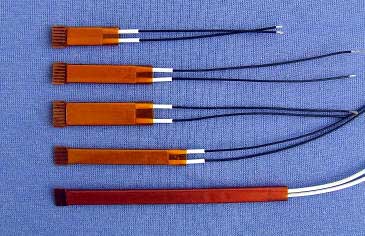

Externally Insulated Film PTC Heaters

Dimensions and Structure of Externally Insulated Film PTC Heaters

Model Parameters

長度 (毫米)	寬度 (毫米)	厚度 (毫米)	表面溫度 (℃)	Insulation Withstand Voltage (V)	Operating Voltage (V)
24	10	3.0~3.5	85~280	3750	100~240
24	15	3.0~3.5	85~280	3750	100~240
35	8	3.0~3.5	85~280	3750	100~240
35	10	3.0~3.5	85~280	3750	100~240
35	13	3.0~3.5	85~280	3750	100~240
35	15	3.0~3.5	85~280	3750	100~240
48	8	3.0~3.5	85~280	3750	100~240
48	10	3.0~3.5	85~280	3750	100~240
48	13	3.0~3.5	85~280	3750	100~240
48	15	3.0~3.5	85~280	3750	100~240
60	8	3.0~3.5	85~280	3750	100~240
60	10	3.0~3.5	85~280	3750	100~240
60	13	3.0~3.5	85~280	3750	100~240
60	15	3.0~3.5	85~280	3750	100~240
70	8	3.0~3.5	85~280	3750	100~240
70	10	3.0~3.5	85~280	3750	100~240
70	13	3.0~3.5	85~280	3750	100~240
70	15	3.0~3.5	85~280	3750	100~240
70 above	15	3.0~3.5	85~280	3750	100~240
