PTC Thermistor for Air Heating

Usage Precautions
Use a hair dryer to remove heat to increase heating power. Wind speed significantly affects heating power. Nói chung, the higher the wind speed, the greater the power. Without wind, the heater will not be damaged, but the power will drop significantly.

1) The power aging rate is within 10% sau đó 1000 giờ, and the resistance aging rate is within 50%.

2) Can be manufactured to customer specifications.

3) Available in both insulated and non-insulated configurations.

PTC Thermostatic Heater for Control Cabinet Dehumidification and Moisture Prevention

Suitable for heating and moisture prevention in electrical control cabinets, dehumidifying and moisture prevention in drying ovens, dehumidifiers, electric humidifiers, moisture prevention and heating for electrical instruments, Màn hình, Lò nướng điện, Thiết bị y tế, Thiết bị gia dụng, small appliances, and more.

Thông số kỹ thuật

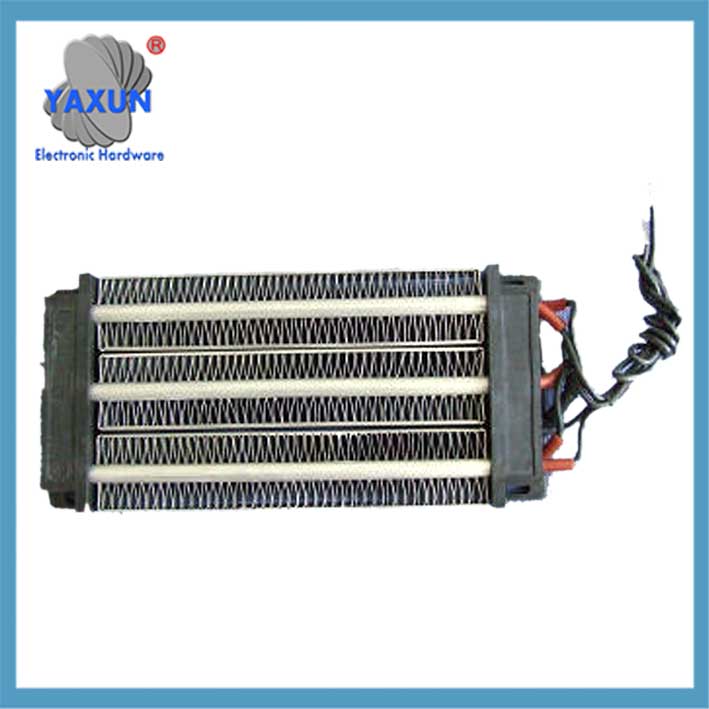

Appearance and structure of PTC thermistor for air heating

Custom sizes of PTC thermistors for air heating

Control cabinet (box) dehumidification and moisture-proof PTC constant temperature heater

Người mẫu	L/mm	W/mm	T/mm	Điện áp định mức (V.)	Surge Current (MỘT)	Quyền lực (W) (5 m/s wind speed)
MZ9Q-L72W22T15V220W270	72	22	15	220	< 3	270
MZ9Q-L96W44T15V220W800	96	44	15	220	< 7	800
MZ9Q-L120W44T15V220W1000	120	44	15	220	< 8	1000
MZ9Q-L96W66T15V220W1200	96	66	15	220	< 10	1200
MZ9Q-L96W88T15V220W1500	96	88	15	220	< 11	1500
MZ9Q-L240W44T15V220W2000	240	44	15	220	< 16	2000
MZ9Q-L96W44T15V110W800	96	44	15	110	< 14	800
MZ9Q-L120W44T15V110W1000	120	44	15	110	< 15	1000
MZ9Q-L96W66T15V110W1200	96	66	15	110	< 18	1200
MZ9Q-L96W88T15V110W1500	96	88	15	110	< 20	1500
MZ9Q-L240W44T15V110W2000	240	44	15	110	< 25	2000
MZ9Q-L48W44T15V24W400	48	44	15	24	250	400
MZ9Q-L96W44T15V24W800	96	44	15	24	250	800
MZ9Q-L120W44T15V24W1000	120	44	15	24	250	1000

Operating Voltage: DC/AC 12V, 24V and DC/AC 110V, 220V.
Curie Temperature: 85°C to 220°C
Surface Temperature: 60°C to 190°C
Minimum Dimensions: 60×60×34mm
Maximum Dimensions: 155×85×24mm
Công suất định mức: 30–200W

PTC Thermostatic Heater for Internal Insulation of Instrument and Equipment Chassis in Low-Temperature Environments

Suitable for maintaining a constant temperature in the chassis of equipment such as ticket machines, subway gates, and ATMs, preventing malfunctions of electronic components caused by low ambient temperatures.

Thông số kỹ thuật

Người mẫu	Điện áp định mức (V.)	Quyền lực (W)	Kích thước (mm)	Minimum Temperature Limit (°C)	Upper Temperature Limit (°C)
MZ9Q-96A2	110/220	250~400	13512042	3~5 ±3	24~28 ± 5
MZ9Q-96A3	110/220	600	14212580	5~8 ± 5	24~28 ± 5
MA9Q-86A3	110/220	800	20011280	5~8 ± 5	24~28 ± 5
