Sıfırlanabilir bir çip sigortası nedir?

A resettable chip fuse, also known as a PTC (Pozitif Sıcaklık Katsayısı) resettable fuse, is a type of surface mount device (SMD) that protects electronic circuits from overcurrent and overheating. It acts like a traditional fuse but can automatically reset itself after a fault is cleared. When a fault like an overcurrent or short circuit occurs, the fuse’s resistance increases, limiting the current flow. Once the fault is removed and the fuse cools down, its resistance returns to normal, akımın tekrar akmasına izin vermek.

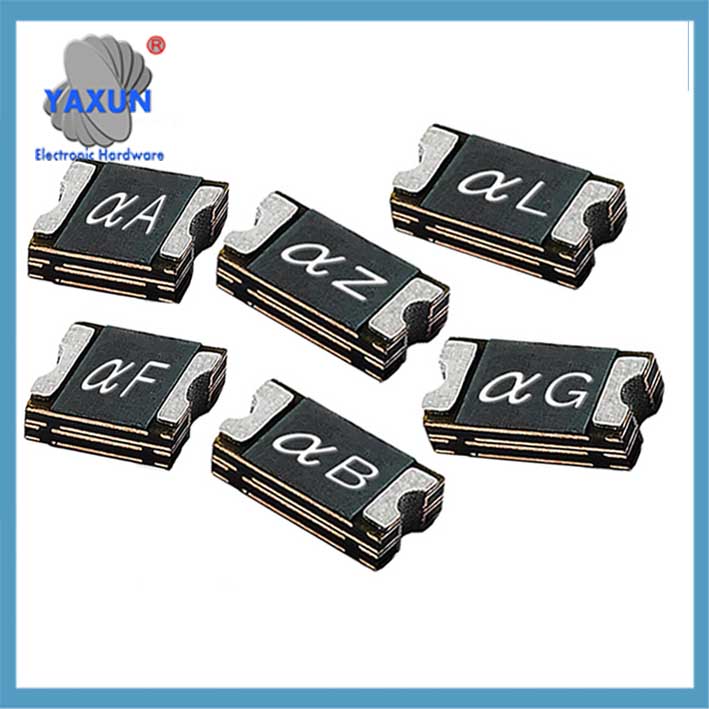

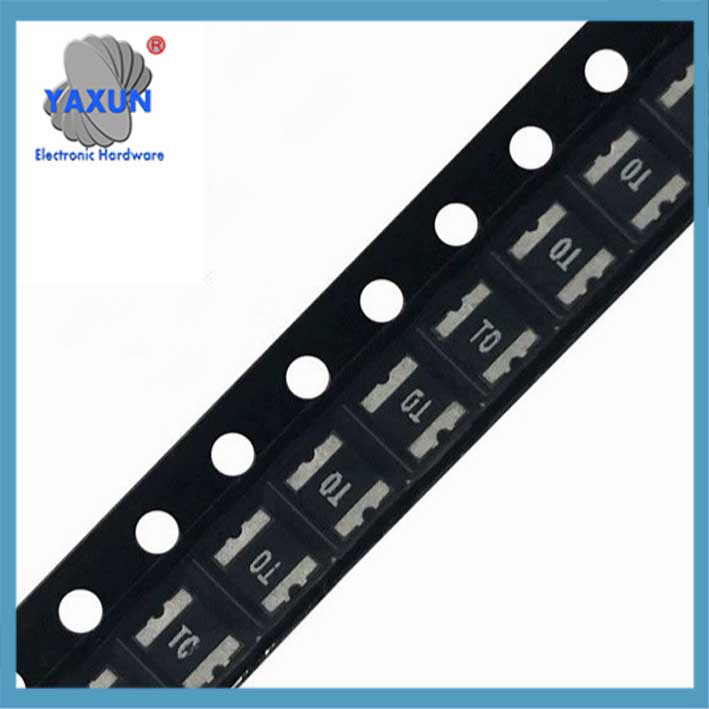

PPTC chip self recovery fuse 1210 2A 2.5A 3A 6V 30V 33V 60V SMD

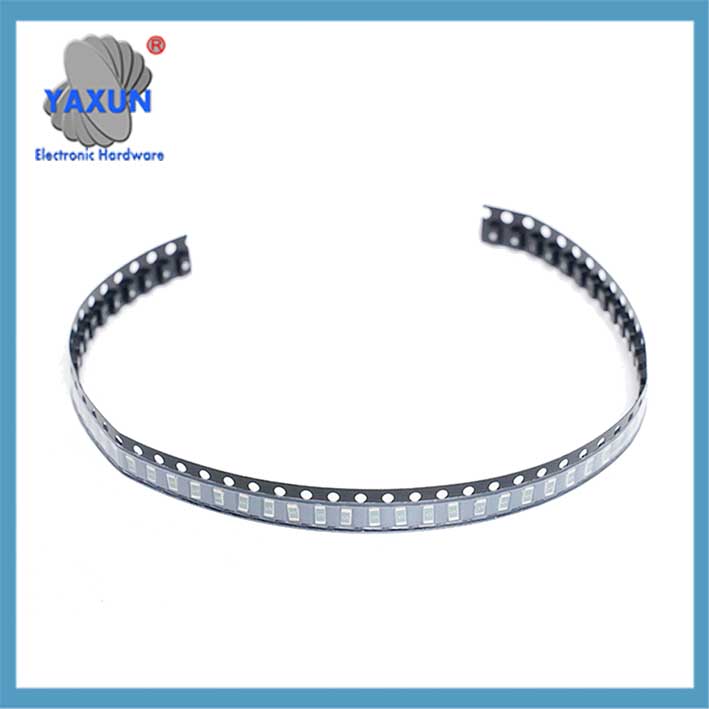

Resettable SMD Fuse 1206 SMD Chip 6V 0.35A (e0113 4c5f1 48d2a d4c5b 1f85e d0afa

SMD Sigorta Yerleştirilebilir 1812 16V2A Communications için Yüzey Montaj Çipi Aşırı Akım Koruması

Sıfırlanabilir çip sigortası (Pptc) bir polimerin pozitif sıcaklık katsayısı özelliklerine dayanan bir aşırı akım koruma elemanıdır. Otomatik sıfırlama fonksiyonuna sahiptir ve elektronik ekipmanların devre korumasında yaygın olarak kullanılır.. Aşağıdakiler onun temel noktalarıdır:

1. Yapı ve çalışma prensibi
‌Malzeme bileşimi‌
It is composed of a specially treated polymer resin (such as PE polymer) ve iletken parçacıklar (karbon siyahı veya metal parçacıkları). Normal koşullar altında, iletken parçacıklar düşük dirençli bir yol oluşturur (0.1-birkaç ohm)‌.
‌Protection Mechanism‌
Aşırı akım meydana geldiğinde, akımın termal etkisi reçinenin erimesine ve genleşmesine neden olur, the conductive network breaks, and the resistance suddenly increases to a high resistance state (up to the megohm level), limiting the current to the microampere level‌.
Arıza giderildikten sonra, iletken parçacıklar soğur ve büzülür, yeniden bağlan, and return to a low resistance state, without the need for manual replacement‌.
PTC Behavior:
Resettable fuses utilize a Polymeric Positive Temperature Coefficient (Pptc) malzeme. This material exhibits a significant increase in resistance as temperature rises.

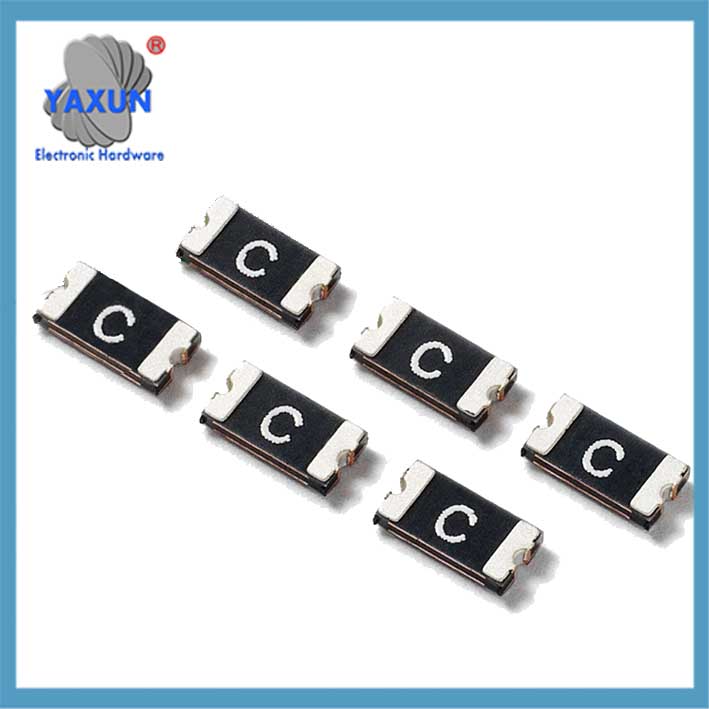

Littelfuse Surface Mount Resettable Fuse China Supplier

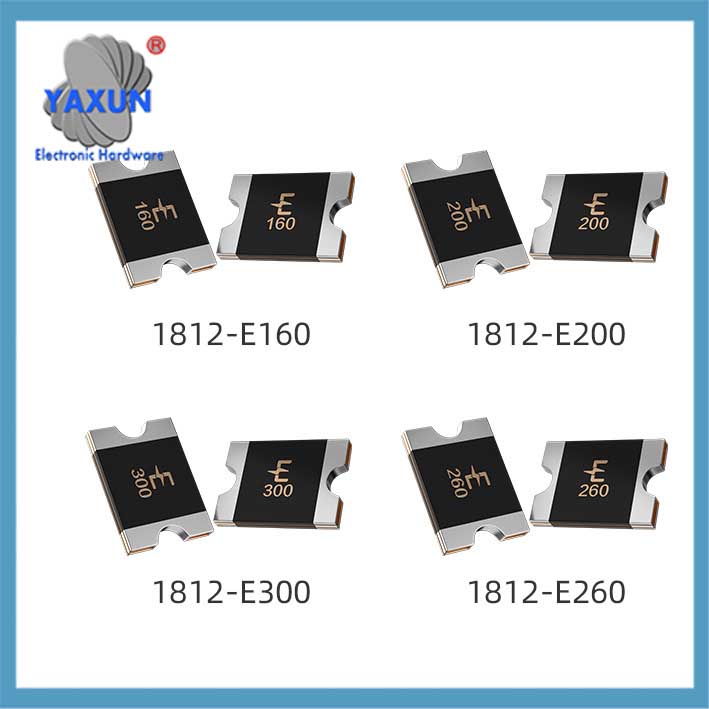

LF 1812 Resettable Fuse PPTC 1812L SMD Self-Recovery 0.2A 0.5A 500mA 0.75A 1.1A 1.5A 2A 2.6A 3A 6V 8V 13.2V 15V 24V 30V

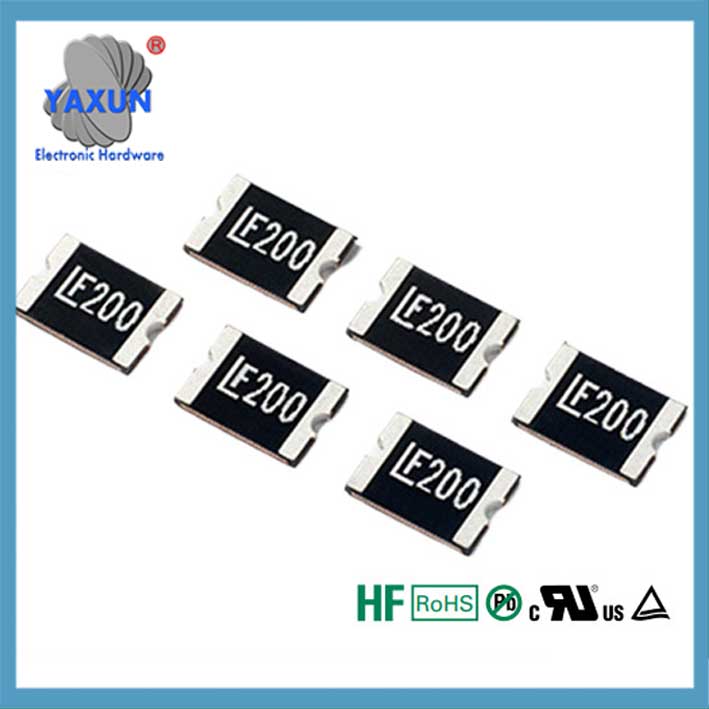

Overcurrent Protection Surface Mount PPTC Resettable Fuse 6V 30V 33V 60V SMD

Aşırı akım koruması:
When a current exceeds the fuse’s rated value flows, the PPTC material heats up, causing its resistance to increase. This increase in resistance reduces the current flow, preventing damage to the circuit.

Otomatik Sıfırlama:
Once the fault is removed and the fuse cools down, the resistance decreases, allowing normal current flow to resume.

Key Features and Benefits:
Kendini Sıfırlama:
The ability to automatically reset after a fault event makes it a reusable alternative to traditional fuses.

Aşırı akım koruması:
Protects circuits from damage caused by excessive current, short circuits, or overheating.

Space-Saving:
SMD packaging allows for integration into compact electronic devices.
Wide Range of Applications:
Found in various devices, including computers, cep telefonları, tıbbi ekipman, and automotive electronics.

Örnek:
Imagine a situation where a USB port on a laptop is accidentally short-circuited. A resettable fuse on the USB power line would detect the overcurrent and increase its resistance, limiting the current and preventing damage to the laptop’s power supply and other components. Once the short is removed, the fuse would reset, and the USB port would be ready to use again.
