KSD301 Temperature Limit Switch
KSD301 realizes temperature control through bimetallic temperature sensing element: When the temperature of the equipment reaches the preset action temperature, the bimetallic strip is deformed by heat and instantly drives the contact to disconnect the circuit; after the temperature drops to the reset temperature, the contact automatically closes and resumes power.
KSD301 is a widely used bimetallic temperature-controlled Limit switch, mainly used for overheat protection or temperature control of electrical equipment. Its main features and information are as follows:
BEN. Core Principle
KSD301 realizes temperature control through bimetallic temperature sensing element: When the temperature of the equipment reaches the preset action temperature, the bimetallic strip is deformed by heat and instantly drives the contact to disconnect the circuit; after the temperature drops to the reset temperature, the contact automatically closes and resumes power.
II. Key Parameters
| Parametreler |
Typical values | Notlar |
| Nominal Voltaj/Akım | AC 250V / 5A、10A、15A、16A | Applicable to resistive loads |
| Action temperature range | 40°C–250°C | 5°C steps available |
| Temperature accuracy | ± 2 ℃、±3°C、±5°C、±10°C | Modele bağlı olarak |
| Reset temperature difference | 8–100℃ (özelleştirilebilir) | Action and reset temperature difference |
| Temas direnci | ≤50mΩ | |
| Insulation resistance | ≥100MΩ | |
| Mechanical life | ≥100.000 kez |

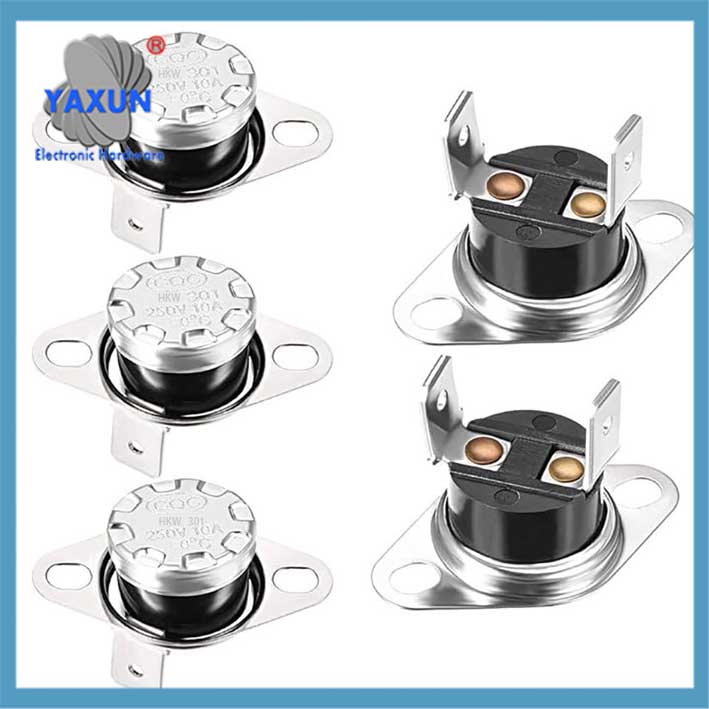

 KSD301 Temperature Limit Switch |

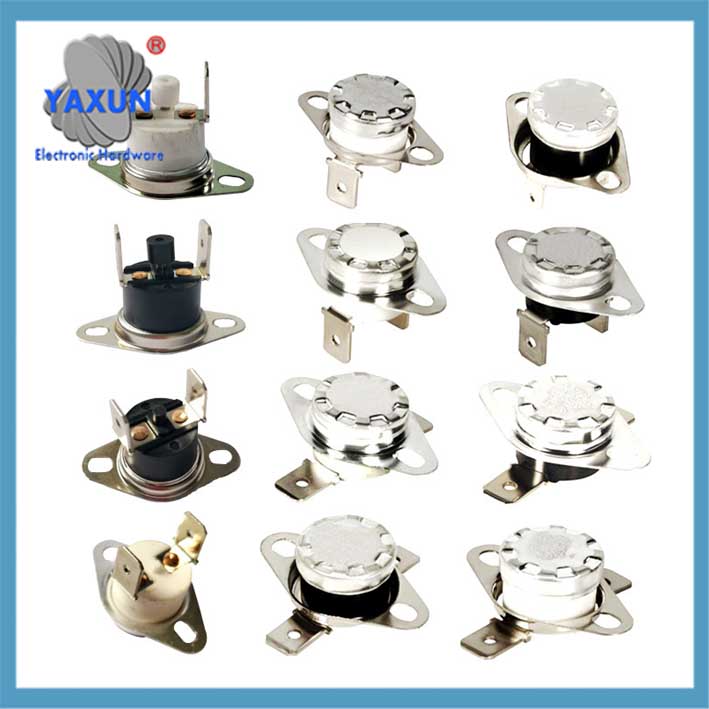

 KSD301 Temperature Switch |

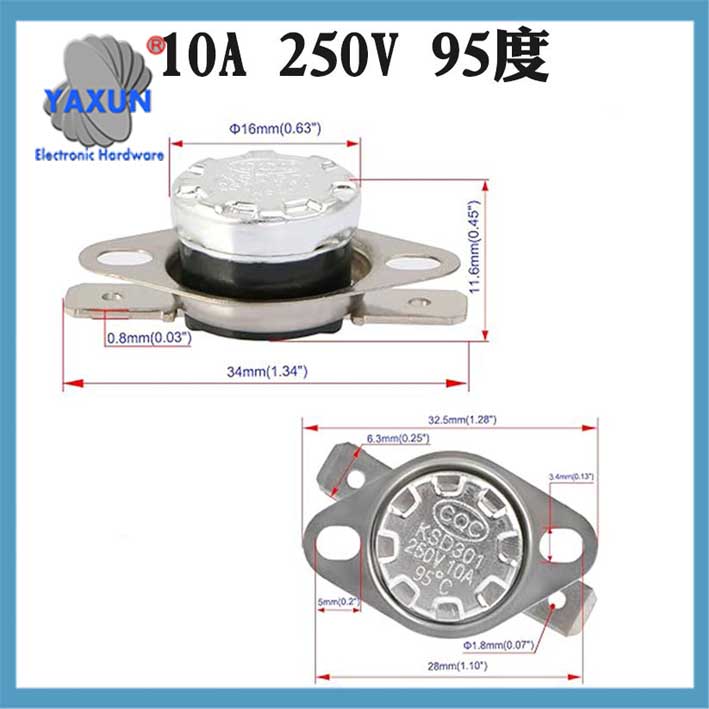

 Dimensional parameters of KSD301 temperature switch |
III. Specifications and Types
Contact Form
Normal Closed (NC): The contact disconnects when the temperature rises (most commonly used).
Normal Open (HAYIR): The contact connects when the temperature rises.
Mounting Structure
Bent-leg/flat-angle terminals are optional (remarks are required when placing an order).
Enclosure protection level: IP00 (metal enclosure grounded).
IV. Typical Applications
Househhold Cihazlar: su sebilleri, pirinç ocakları, dezenfeksiyon dolapları, mikrodalga fırınlar, kahve makineleri.
Industrial equipment: klimalar, laminatörler, elektrikli ısıtma cihazları.
Automotive field: diesel filter heating system.
V. Procurement and selection
Temperature marking: The required operating temperature (such as 85°C, 125°C) and contact type must be specified when purchasing.
Tip: The operating temperature tolerance and reset temperature difference must be confirmed according to the specific model. The tolerance of some high-precision models is as low as ±2°C.
