PTF 70 Bakelitové držiaky poistiek, 10A, panelová poistková skrinka, pre poistku 5x20mm

Stelvio Kontek PTF-70 je držiak poistiek na panel so skrutkovacím uzáverom 5 x 20 mm sklenené poistky s UL menovitým prúdom 10A pri 250Vac a používa pripojenie drôtových jazýčkov. Fuse Box for panel mounting; Fuse carrier with screwdriver slot and screw socket; Materiál: Flameproof, sklom plnený termoplast (PPOM).

PTF 70 – Fuse Holder 5 x 20 mm 10MOhm 250V 10A Black

Screw Cap Panel Mount Fuse Holder, Accepts 5×20 mm Fuse

Kontext Stelvio PTF 70 Držiak poistky; valcové poistky; 5x 20 mm; 10A; na paneli; čierna

PTF70 5x20mm Panel Mount Fuse Holder Drawing

Popis produktu
PTF70 5x20mm 10A 250V Bakelite Electric Fuse Cutout Box Panel Mount Glass Fuse Holder

The PTF-70 is a panel mount fuse holder with a screw cap for use with 5 x 20 mm sklenené poistky s UL menovitým prúdom 10A pri 250Vac a používa pripojenie drôtových jazýčkov. This panel mount fuse holder has a bayonet style screw-cap that make the installation and removal of a 5x20mm glass fuse easy and safe. Wiring connections to this 5 X 20mm panel mount fuse holder are either soldered or a push on tab terminal and installation is made easy with a threaded housing and lock nut arrangement.

Špecifikácia
• operating voltage, max.: 250V a
• rated current: 10A
• contact resistance: <5mΩ
• insulation resistance: >100MΩ
• dielectric strength: >3000V AC/60s
• colour: čierna

Obavy
• fuse holder made of black polycarbonate, self-extinguishing (UL94V-0)
• bayonet cover
• brass parts with nickel layer, tin-plated
• shock-protection category PC2

Aplikácia
Elektrické zariadenia, ako sú výkonové zosilňovače, DVD, reproduktory, masážne kreslá a iné elektrické zariadenia

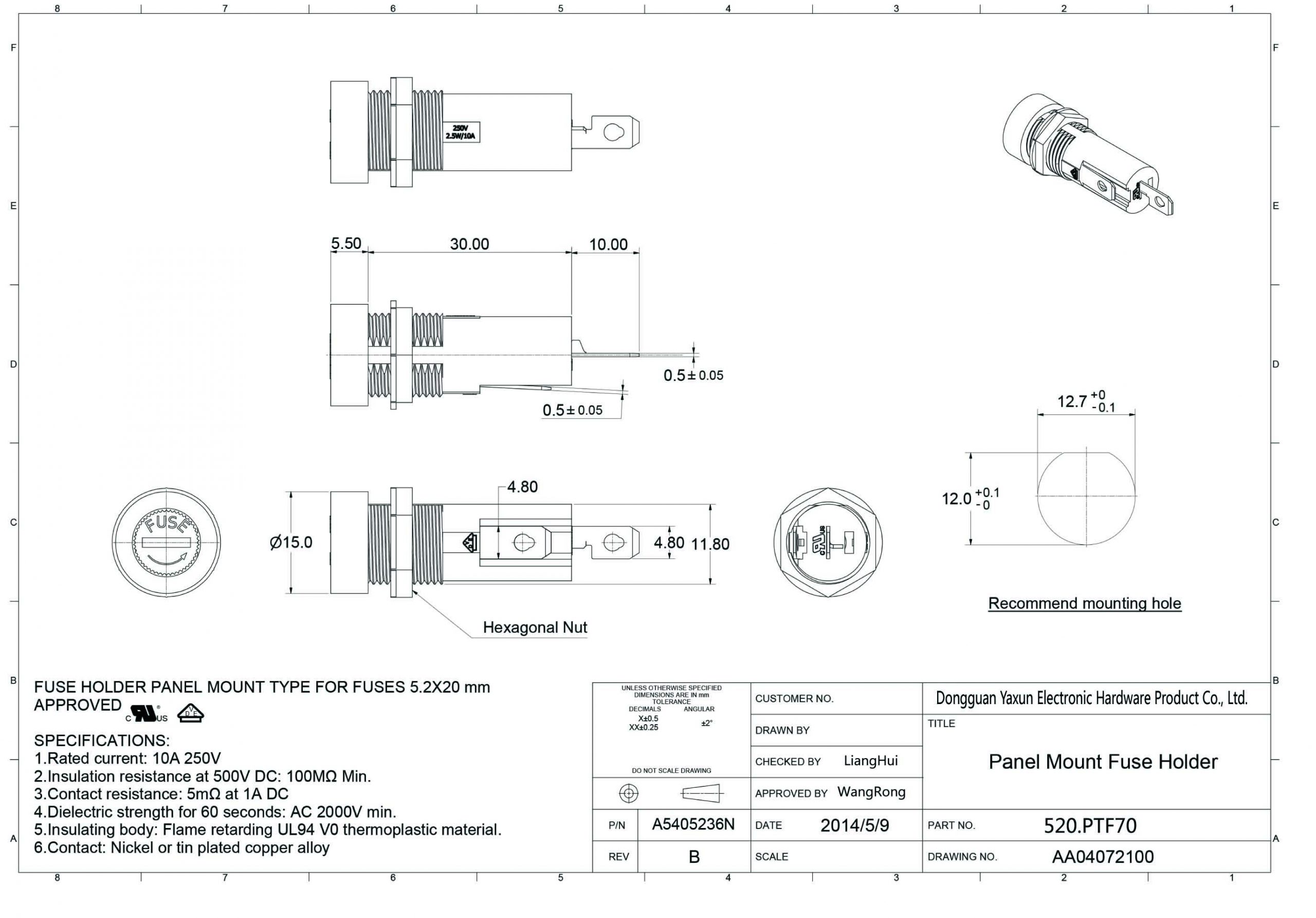

PTF70 5x20mm Panel Mount Fuse Holder Drawing
