NTC030HF01 - SENSOR NTC Carel PT100 Producator original din China - Senzor de temperatura, intrerupator termic si siguranta, furnizor de termostate

Carel NTC030HF01 este un senzor de temperatură NTC pentru HVAC/R (Încălzire, Ventilare, Aer condiționat, și Refrigerare) sisteme. Este fabricat în China de mărci precum Siemens și Honeywell. Vă rugăm să consultați desenele și parametrii pentru NTC030HF01.

Mai simplu spus, it’s a “sonda de temperatura” with a 3-meter cable. To help you quickly determine its suitability, I have summarized the core parameters as follows:

Main Features and Application Scenarios

Elemente parametri	Informații detaliate
Marca	Carol
Tip de produs	Passive NTC Temperature Sensor，(RTD-uri) PT100, PT1000
Element de detectare a temperaturii	NTC (Termistor cu coeficient de temperatură negativ), 10 kΩ @ 25°C, Valoarea beta 3435，PT100，PT1000
Domeniul de măsurare	-50 la +90 °C (some sources mention up to +105 °C in air)

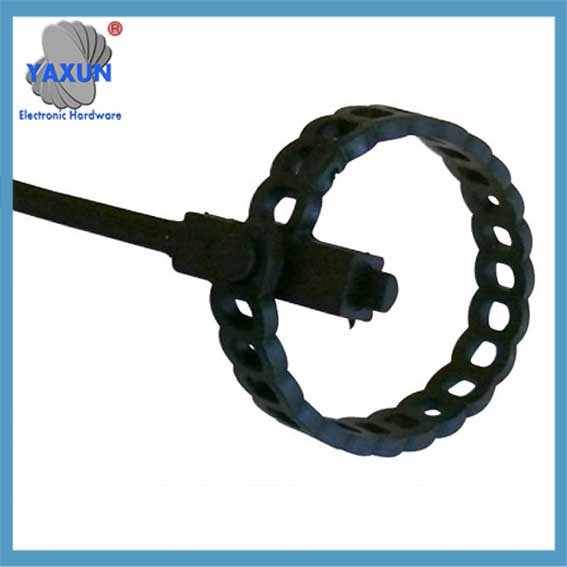

Installation Method	Strap-on type for securing the sensor to the pipe surface
Lungimea cablului	3 metri (flat black cable)
Evaluare de protecție	IP67 (rezistent la praf și scufundabil pentru scurt timp)
Conexiune	Stripped ends, 2-core wire

The main feature of this sensor’s design is its clamp-on mounting design, making it ideal for measuring the temperature of the outer walls of pipes, such as refrigerant lines, conducte de apă, or other pipes in HVAC systems.

Another advantage is its high IP67 protection rating, meaning it is effectively dustproof and waterproof, and can operate reliably in humid industrial environments, even those occasionally exposed to water.

NTC030HF01 – Carel NTC SENSOR, PT100 Drawings

One important information discrepancy to note:

There is a misleading piece of information in the search results: some websites incorrectly describe “NTC030HF01” as a PLC (Programmable Logic Controller). This is clearly an information entry error, as at least eight sources from different distributors consistently confirm that it is an NTC temperature sensor. Prin urmare, please refer to the sensor parameters in this reply when making references.

Recomandări de selecție:

If you need to use it to upgrade or repair Carel equipment, you can simply replace it. If you want to use it with controllers from other brands (such as Siemens, Honeywell, etc.), you can also do so, but you must ensure that the controller is compatible with the NTC 10k sensor; altfel, the readings will be inaccurate. For pipe temperature measurement scenarios, the clamp-on design of this sensor is very convenient for installation; Cu toate acestea, it is not the ideal choice for measuring air temperature.

If needed, I can guide you on how to test the quality of this sensor or help you find a compatible controller model.
