Pelindung Beban Terma Boleh Ditetapkan Semula Untuk Motor Elektrik

Electric Motors’ thermal overload protection switches are electrical protection devices based on the thermal effect of current. They are primarily used to prevent equipment damage or fire risks caused by sustained overloads or abnormal temperatures. The following are key features:
I. Prinsip kerja
‌Bimetallic Thermal Trip Mechanism‌
Two metal strips (active and passive) with different expansion coefficients bend under heat, triggering a mechanical mechanism to disconnect the circuit. The response time is typically in the order of seconds to minutes.
‌Combined Protection Design‌
Some models (such as the Schneider GV2-ME series) combine thermal and magnetic tripping to provide dual protection against overload (delayed) and short circuit (instantaneous).

Tetapkan Semula Suis Perlindungan Beban Terma 92 Siri 8A 9 10Pemutus Litar 12A 15A 20A

Thermal Overload Protector Push Button Manual Reset Circuit Breaker with 18AWG Wires and Cover

China Wholesale Thermal Overload Protector For Motors With Ul & Vde Certified Direct from Factory

Ii. Jenis Utama
‌Reset Type‌: Manual/automatic reset, such as the Taiwan 98 siri (3A-40A).
‌Electronic Type‌: A microprocessor monitors current, offering higher accuracy (such as the E99L model with indicator light). Thermal-Magnetic Type: Integrates a thermal element and electromagnetic coil, suitable for motor protection (such as the GV2ME20C, 0.1-32A).

Iii. Senario Aplikasi
Home Appliances: Penghawa dingin, garbage disposals, dll. (such as low-current circuit breakers, starting at ¥0.85).
Peralatan Perindustrian: Three-phase motor protection (such as a 380V phase loss protector, ¥30.13).
Power Distribution Systems: Pemutus Litar Kes Acuan (such as the Schneider CVS400F, 320A-630A).

Manual Reset Thermal Switch Circuit Breaker Over Current Overload Protector (10A,15A, 30A)

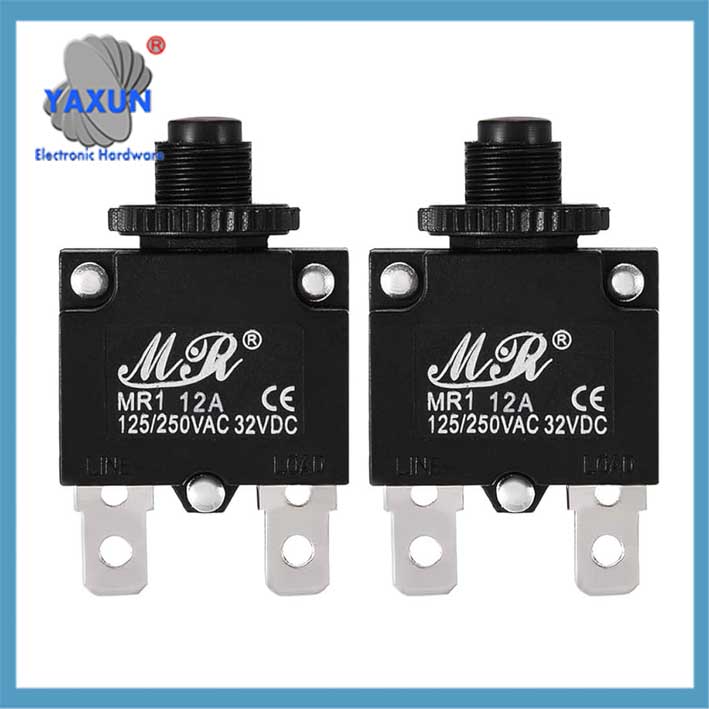

Thermal Overload Protector AC 125, 250V 12A Push Button Reset Circuit Breaker

MRT0075 Manual Reset Thermal Overload, 3-4 HP, 4-Pole Auto Circuit Breaker

Iv. Perkara Utama Pemilihan
Arus dinilai: Must match load requirements. Contohnya, 10A-16A is recommended for home use, while starting current should be considered for industrial motors.
Environmental Adaptability: Untuk persekitaran suhu tinggi, select a model with temperature compensation.
Certification Standards: Products that comply with UL, GB 4943.1, and other certifications are preferred.

V. Market Product Examples
‌Economical‌: Yueqing Lyuyi Electronics 98 Siri (¥2.85/unit).
‌Industrial‌: Schneider GV3 Series (starting at ¥20.90).
‌Intelligent‌: Chint NXR-25 Thermal Relay (7-10A, ¥34.20).
