PTF 70 Bakelite fuse holders, 10А, panel mount fuse Box, for 5x20mm Fuse

The Stelvio Kontek PTF-70 is a panel mount fuse holder with a screw cap for use with 5 x 20 mm glass fuses with a UL rating of 10A at 250Vac and uses tab wire connections. Fuse Box for panel mounting; Fuse carrier with screwdriver slot and screw socket; Материјал: Flameproof, glass-filled thermoplastic (PPOM).

PTF 70 – Fuse Holder 5 x 20 mm 10MOhm 250V 10A Black

Screw Cap Panel Mount Fuse Holder, Accepts 5×20 mm Fuse

Stelvio Kontek PTF 70 Fuse holder; cylindrical fuses; 5x20mm; 10А; on panel; black

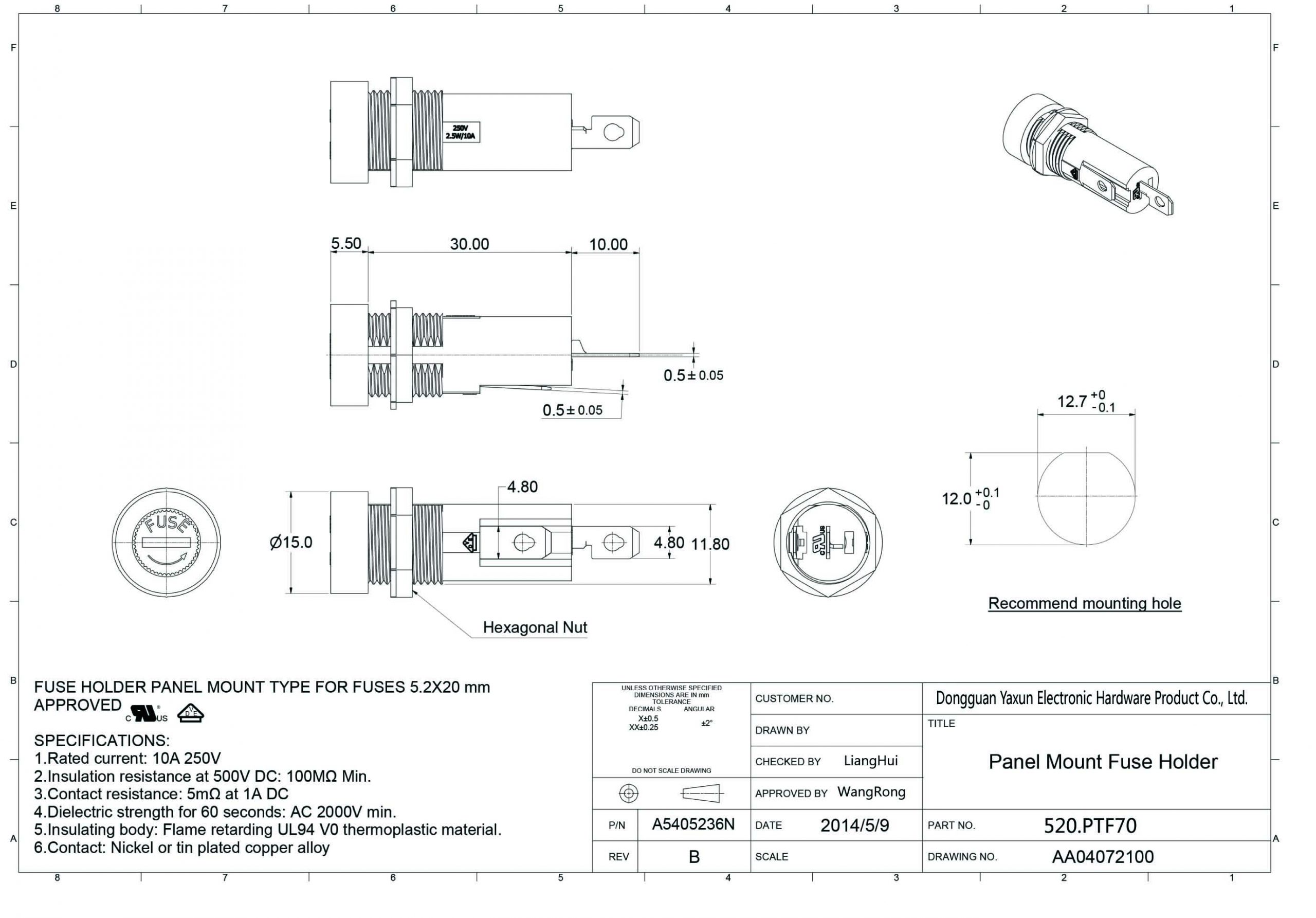

PTF70 5x20mm Panel Mount Fuse Holder Drawing

Product Description
PTF70 5x20mm 10A 250V Bakelite Electric Fuse Cutout Box Panel Mount Glass Fuse Holder

The PTF-70 is a panel mount fuse holder with a screw cap for use with 5 x 20 mm glass fuses with a UL rating of 10A at 250Vac and uses tab wire connections. This panel mount fuse holder has a bayonet style screw-cap that make the installation and removal of a 5x20mm glass fuse easy and safe. Wiring connections to this 5 X 20mm panel mount fuse holder are either soldered or a push on tab terminal and installation is made easy with a threaded housing and lock nut arrangement.

Specification
• operating voltage, max.: 250V AC
• rated current: 10А
• contact resistance: <5mΩ
• insulation resistance: >100MΩ
• dielectric strength: >3000V AC/60s
• colour: black

Fearures
• fuse holder made of black polycarbonate, self-extinguishing (UL94V-0)
• bayonet cover
• brass parts with nickel layer, tin-plated
• shock-protection category PC2

Application
Electrical equipment, such as power amplifiers, DVDs, speakers, massage chairs and other electrical equipment

PTF70 5x20mm Panel Mount Fuse Holder Drawing
