Functions and Applications of Resettable Chip Fuses

Resettable chip fuses (PPTC) are overcurrent protection components based on the positive temperature coefficient characteristics of polymers. They have an automatic reset function and are widely used in circuit protection of electronic equipment. 다음은 핵심 사항입니다:
1. Structure and working principle
‌Material composition‌
It is composed of specially treated polymer resins (such as PE polymers) and conductive particles (carbon black or metal particles). 정상적인 조건에서, the conductive particles form a low-resistance path (0.1-several ohms). ‌Protection mechanism‌
When overcurrent occurs, the thermal effect of the current causes the resin to melt and expand, the conductive network to break, and the resistance suddenly increases to a high-resistance state (up to megohms), limiting the current to microamperes. ‌After the fault is resolved, the conductive particles cool and shrink, reconnect, and restore the low-resistance state without manual replacement‌. ‌

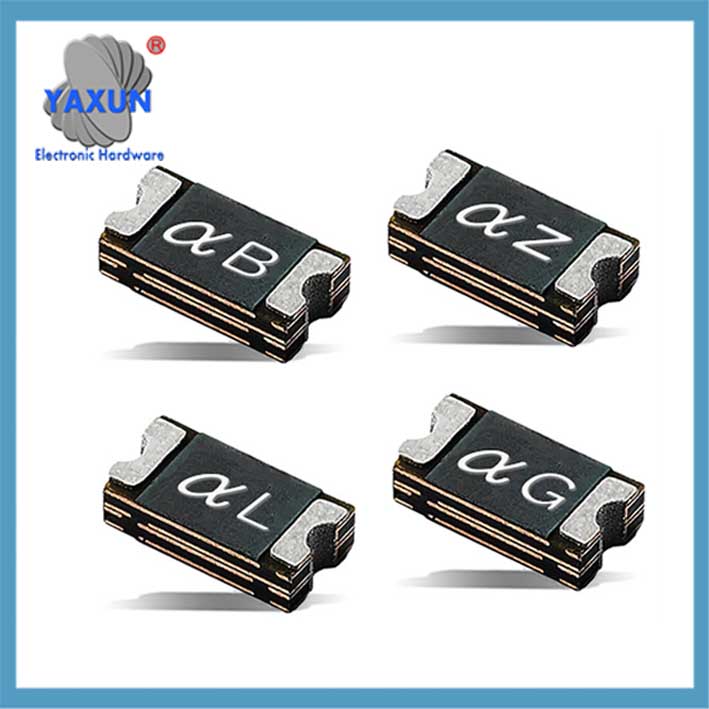

PPTC Resettable Fuse AEM Components China Supplier

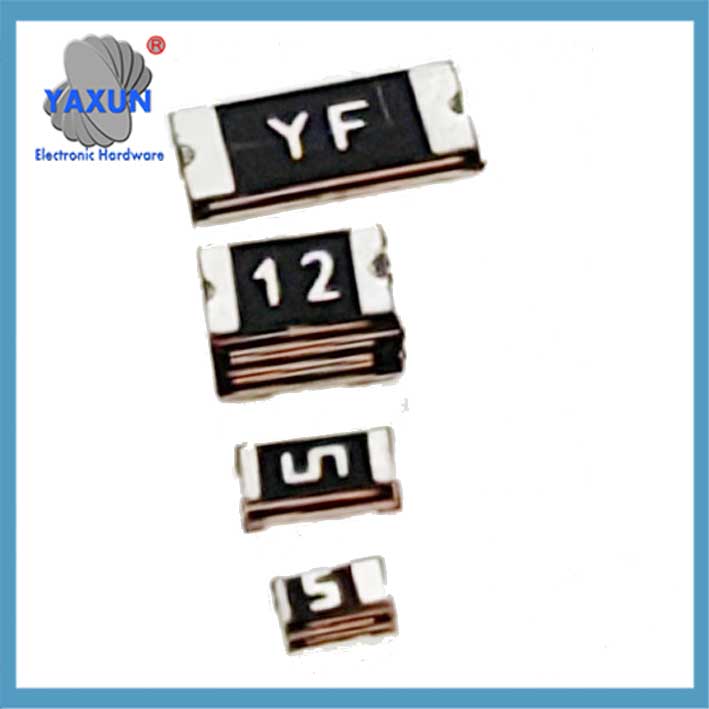

Function and application of Chip SMD resettable fuse

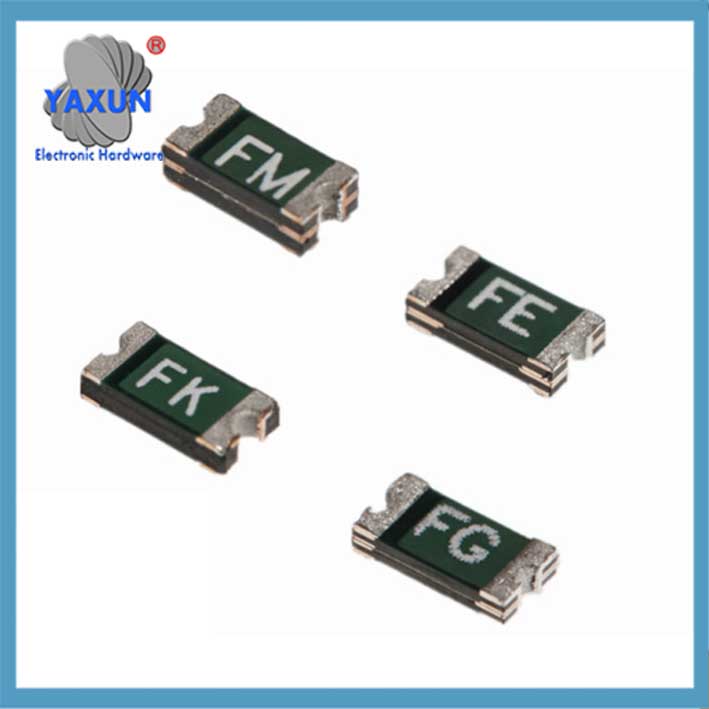

Chip SMD resettable fuse China supplier

과전류 보호:
Resettable fuses limit excessive current flow in a circuit, preventing damage to sensitive components during short circuits or overload conditions.

Over-temperature Protection:
They can also sense and respond to excessive temperatures, tripping to a high-resistance state to prevent overheating and potential damage.

Self-Resetting:
Unlike traditional fuses, resettable fuses automatically return to their low-resistance state once the fault condition is removed and the temperature or current drops below the trigger point.

2. Key parameters and characteristics

3. Typical application scenarios
가전제품:
Widely used in smartphones, laptops, TV, and other electronic devices to protect against overcurrents and over-temperature issues.
Power Supplies:
Provide reliable protection for power supplies in various devices and systems, preventing damage from short circuits or excessive current draw.
Automotive Electronics:
Used in cars for protecting dashboard electronics, control modules, and entertainment systems from overcurrents.
Telecommunications:
Protects routers, 스위치, and other communication devices from damage caused by overcurrents, ensuring uninterrupted connectivity.
Industrial Control Systems:
Safeguard electronic control panels, PLCs (Programmable Logic Controllers), and other critical components in industrial settings.
Aerospace and Nuclear Applications:
Provide reliable protection in environments where fuse replacement is difficult or impractical.
Medical Devices:
Can be found in some medical devices, ensuring the safety and reliability of critical medical equipment.
Audio Systems:
Protects loudspeakers, especially tweeters, from damage due to overdriving.

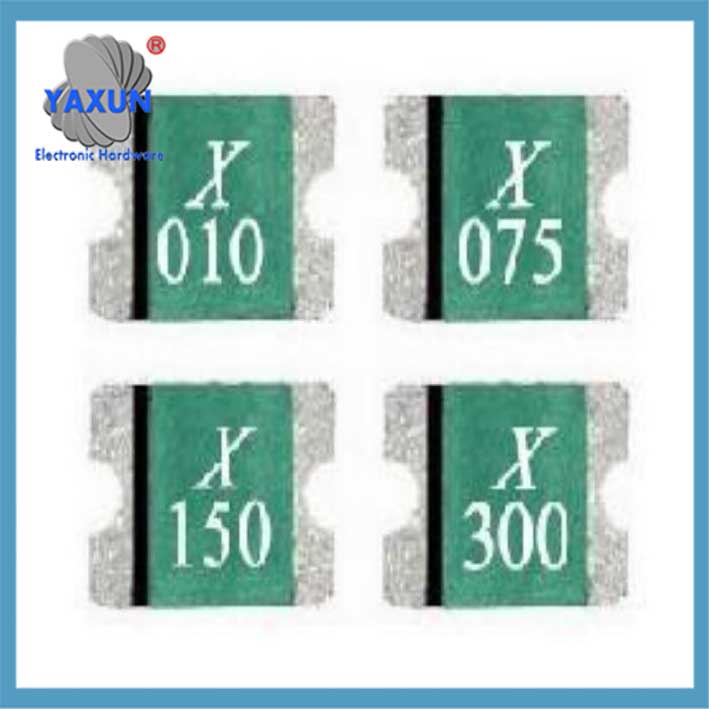

P075 Fuses 0.75A 13.2V Fast Acting Chip SMD 1812 Cartridge Fuses Resettable Fuse

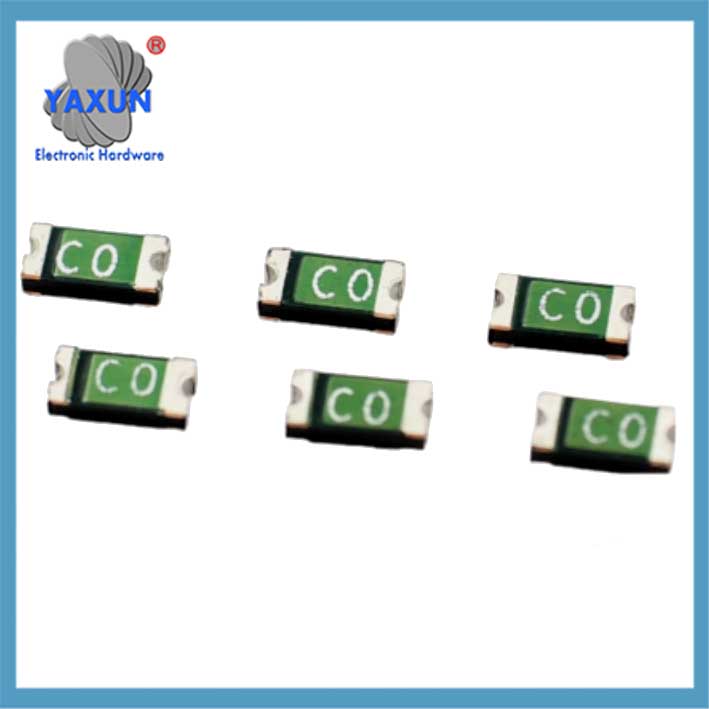

Self-recovery fuse SMD 1206 nSMD025 250MA 16V

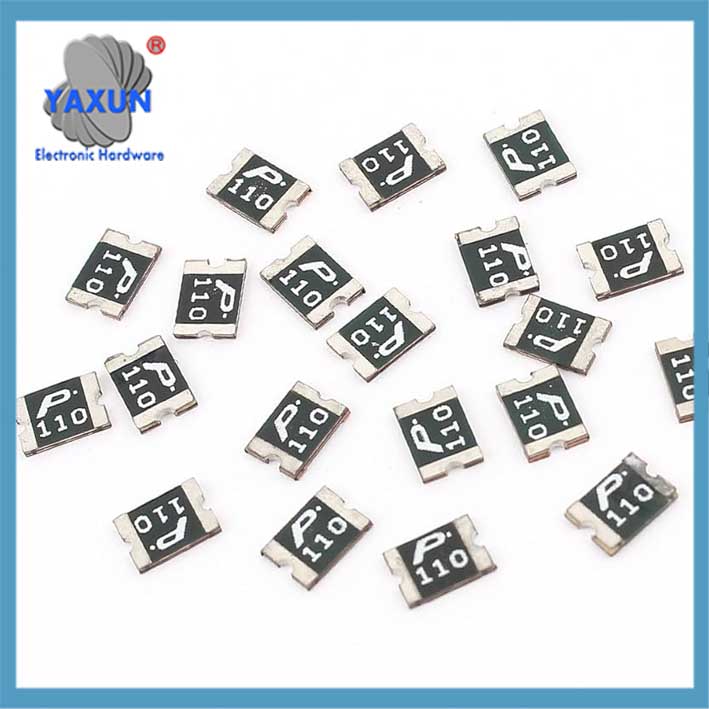

1.1A 8V Fast Acting Chip SMD 1812 Cartridge Fuses Resettable Fuse

4. Selection considerations
‌Current matching‌: The maintenance current should be 1.25 times higher than the maximum operating current of the circuit‌;
‌Package selection‌: Select 0402/0603 and other sizes according to the PCB space, 그리고 1812/2920 packaging is required for high current scenarios‌;
‌Environmental adaptability‌: The current usage needs to be reduced in high temperature environments to avoid false triggering‌.

5. Technology development trends
‌Material optimization‌: New nano-composite materials improve response speed and pressure resistance‌.
‌Structural innovation‌: 예를 들어, YAXUN Electronics’ adjustable patch components are suitable for different circuit layouts‌.

If you need a test standard, you can refer to the 25°C environment to verify the maintenance current (no action for 15 분) and action current (trigger within 5 분) and other indicators.

Advantages over traditional fuses:
Self-Resetting:
Eliminates the need for manual fuse replacement, reducing downtime and maintenance costs.
소형 크기:
Resettable fuses are often smaller than traditional fuses, making them easier to integrate into compact electronic devices.
Longer Lifespan:
Capable of withstanding numerous overcurrent events, leading to a longer overall lifespan compared to traditional fuses.
No Arcing:
Resettable fuses do not produce sparks or arcing during a fault, enhancing safety.
