PTF 70 Pemegang sekering Bakelite, 10A, Kotak sekering pemasangan panel, untuk Sekring 5x20mm

Stelvio Kontek PTF-70 adalah dudukan sekering pemasangan panel dengan tutup sekrup untuk digunakan 5 X 20 sekering kaca mm dengan peringkat UL 10A pada 250Vac dan menggunakan sambungan kabel tab. Fuse Box for panel mounting; Fuse carrier with screwdriver slot and screw socket; Bahan: Flameproof, termoplastik berisi kaca (PPOM).

PTF 70 – Pemegang Sekring 5 X 20 mm 10MOhm 250V 10A Hitam

Screw Cap Panel Mount Fuse Holder, Accepts 5×20 mm Sekering

Stelvio Kontek PTF 70 Pemegang sekering; sekering silinder; 5x20mm; 10A; di panel; hitam

PTF70 5x20mm Panel Mount Fuse Holder Drawing

Deskripsi Produk
PTF70 5x20mm 10A 250V Bakelite Electric Fuse Cutout Box Panel Mount Glass Fuse Holder

The PTF-70 is a panel mount fuse holder with a screw cap for use with 5 X 20 sekering kaca mm dengan peringkat UL 10A pada 250Vac dan menggunakan sambungan kabel tab. This panel mount fuse holder has a bayonet style screw-cap that make the installation and removal of a 5x20mm glass fuse easy and safe. Wiring connections to this 5 X 20mm panel mount fuse holder are either soldered or a push on tab terminal and installation is made easy with a threaded housing and lock nut arrangement.

Spesifikasi
• operating voltage, max.: 250V dan
• rated current: 10A
• contact resistance: <5mΩ
• insulation resistance: >100MΩ
• dielectric strength: >3000V AC/60s
• colour: hitam

Ketakutan
• fuse holder made of black polycarbonate, self-extinguishing (UL94V-0)
• bayonet cover
• brass parts with nickel layer, tin-plated
• shock-protection category PC2

Aplikasi
Peralatan listrik, misalnya power amplifier, DVD, pembicara, kursi pijat dan peralatan listrik lainnya

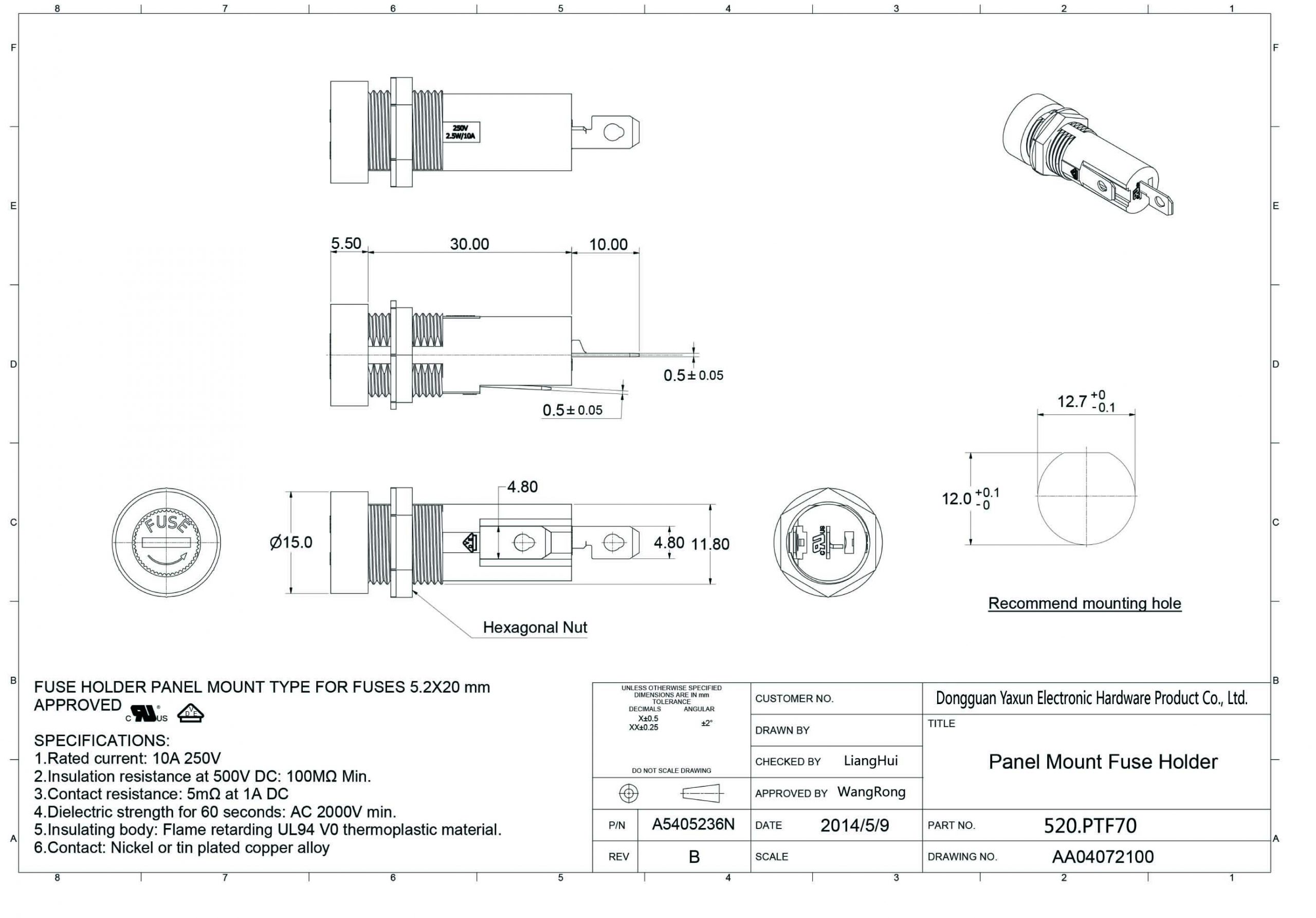

PTF70 5x20mm Panel Mount Fuse Holder Drawing
