PTF 70 Bakeliet lonthouers, 10N, paneelmonteer sekeringskas, vir 5x20mm lont

Die Stelvio Kontek PTF-70 is 'n paneelmonteerde lonthouer met 'n skroefdop vir gebruik 5 x 20 mm glas smelters met 'n UL-gradering van 10A by 250Vac en gebruik draadverbindings. Fuse Box for panel mounting; Fuse carrier with screwdriver slot and screw socket; Materiaal: Flameproof, glass-filled thermoplastic (PPOM).

PTF 70 – Sekeringhouer 5 x 20 mm 10MOhm 250V 10A Swart

Screw Cap Panel Mount Fuse Holder, Accepts 5×20 mm Sekering

Stelvio PTF Konteks 70 Sekeringhouer; silindriese versmeltings; 5x20mm; 10N; op paneel; swart

PTF70 5x20mm Panel Mount Fuse Holder Drawing

Produkbeskrywing
PTF70 5x20mm 10A 250V Bakelite Electric Fuse Cutout Box Panel Mount Glass Fuse Holder

The PTF-70 is a panel mount fuse holder with a screw cap for use with 5 x 20 mm glas smelters met 'n UL-gradering van 10A by 250Vac en gebruik draadverbindings. This panel mount fuse holder has a bayonet style screw-cap that make the installation and removal of a 5x20mm glass fuse easy and safe. Wiring connections to this 5 X 20mm panel mount fuse holder are either soldered or a push on tab terminal and installation is made easy with a threaded housing and lock nut arrangement.

Spesifikasie
• operating voltage, max.: 250V en
• rated current: 10N
• contact resistance: <5MΩ
• insulation resistance: >100MΩ
• dielectric strength: >3000V AC/60s
• colour: swart

Fearures
• fuse holder made of black polycarbonate, self-extinguishing (UL94V-0)
• bayonet cover
• brass parts with nickel layer, tin-plated
• shock-protection category PC2

Toepassing
Electrical equipment, such as power amplifiers, DVDs, speakers, massage chairs and other electrical equipment

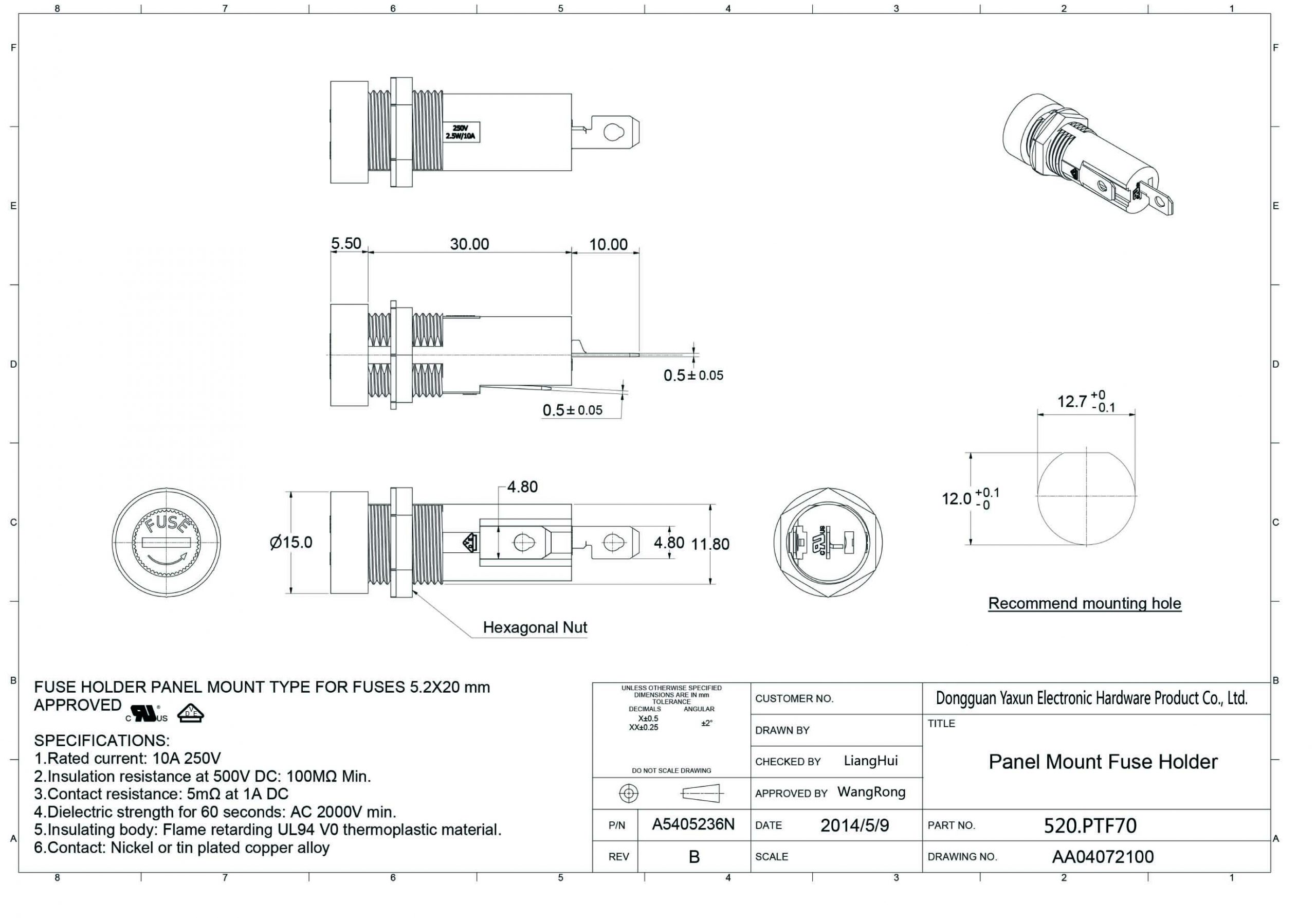

PTF70 5x20mm Panel Mount Fuse Holder Drawing
