KSD301 Temperatuurlimietskakelaar

KSD301 is a widely used bimetallic temperature-controlled Limit switch, mainly used for overheat protection or temperature control of electrical equipment. Its main features and information are as follows:

ek. Core Principle
KSD301 realiseer temperatuurbeheer deur middel van bimetaal temperatuursensorelement: Wanneer die temperatuur van die toerusting die voorafbepaalde aksietemperatuur bereik, die bimetaalstrook word deur hitte vervorm en dryf die kontak onmiddellik aan om die stroombaan te ontkoppel; nadat die temperatuur tot die teruggestelde temperatuur gedaal het, die kontak sluit outomaties en hervat krag.

II. Key Parameters

Parameters	‌Typical values	Opmerkings
Rated voltage/current	AC 250V / 5N、10N、15N、16N	Applicable to resistive loads
Action temperature range	40°C–250°C	5°C steps available
‌Temperature accuracy‌	±2℃、±3℃、± 5 ℃、±10℃	Depending on the model
Reset temperature difference	8–100℃ (customizable)	Action and reset temperature difference
Kontakweerstand	≤50mΩ
‌Insulation resistance	≥100MΩ
‌Mechanical life	≥100,000 times

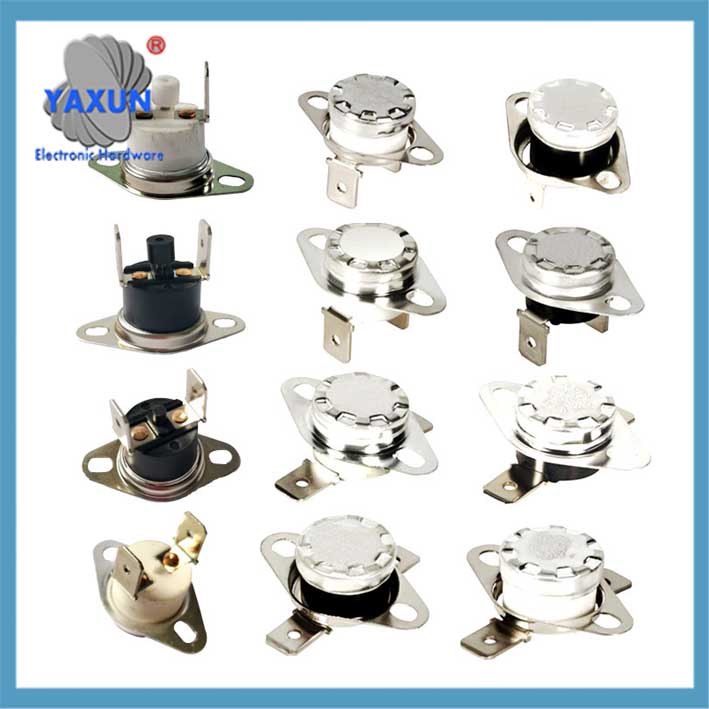

KSD301 Temperatuurlimietskakelaar

KSD301 temperatuurskakelaar

Dimensional parameters of KSD301 temperature switch

III. Specifications and Types
‌Contact Form‌
‌Normal Closed (NC): The contact disconnects when the temperature rises (most commonly used).
‌Normal Open (Nee): The contact connects when the temperature rises.
‌Mounting Structure‌
Bent-leg/flat-angle terminals are optional (remarks are required when placing an order).
Enclosure protection level: IP00 (metal enclosure grounded).

IV. Tipiese toepassings
Huishoudelike toestelle: water dispensers, ryskokers, ontsmettingskaste, microwave ovens, koffiemasjiene.
Industriële toerusting: lugversorgers, laminators, electric heating appliances.
‌Automotive field‌: diesel filter heating system.

V. Procurement and selection
‌Temperature marking‌: The required operating temperature (such as 85°C, 125°C) and contact type must be specified when purchasing.

Tip‌: The operating temperature tolerance and reset temperature difference must be confirmed according to the specific model. The tolerance of some high-precision models is as low as ±2°C.

KSD301 Temperature Switch Parameters
